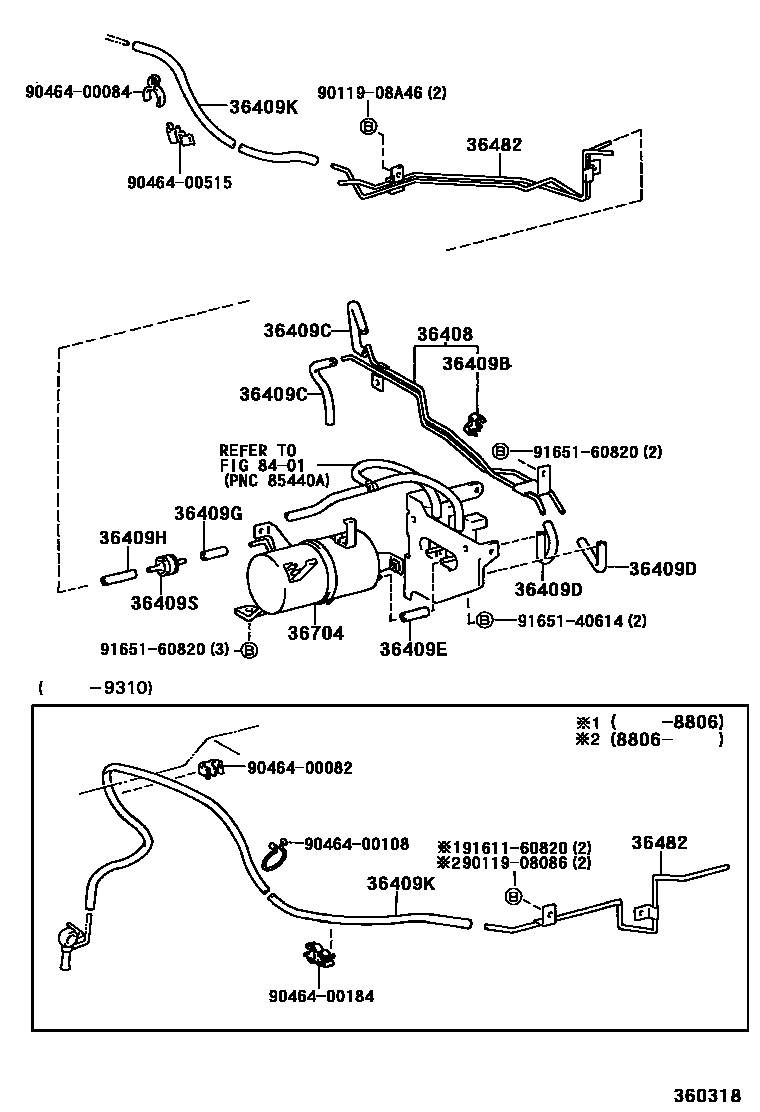

TRANSFER VACUUM PIPING

0001 1 0002 1 0003 1

36408TUBE SUB-ASSY, TRANSFER VACUUM

main36408-27010iCM6#,YM6#199310-199505

36409BCLAMP, VACUUM TUBE

main90464-00403iCM6#,YM6#199310-199611

36409CHOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)

main90445-10027×2iCM6#,YM6#198610-199310

main90445-10082iCM6#,YM6#199611

main90446-10004iCM6#199611

main90446-10005iCM6#,YM6#199508-199611

main95411-49906iCM6#,YM6#199508-199611

main95411-49933iCM6#,YM6#199508-199510

36409DHOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)

main90445-10028×2iCM6#,YM6#198610-199310

main95411-49913iCM6#,YM6#199508-199611

36409EHOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)

main90445-10025×2iCM6#,YM6#199505

36409GHOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)

main90999-92002iCM6#,YM6#198610-199310

36409HHOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)

main90999-92002iCM6#,YM6#198610-199310

main95411-49933iCM6#,YM6#199611

36409KHOSE, VACUUM, NO.6 (FOR FRONT DRIVE SHIFT)

main90445-08207iCM6#198610-198711

*H,L=1200

main90445-08320iCM6#,YM65199310-199611

main90999-92003iYM60199508

main90999-92004iYM60198711-199508

main90999-92006iCM6#,YM65198711-199310

main95411-10095iYM60198610-198711

*H,L=750

36409SVALVE, CHECK (FOR FRONT DRIVE SHIFT)

main90917-10049iCM6#,YM6#198810-199310

main90917-10065iCM6#,YM60198610-198810

36482TUBE, FRONT DRIVE VACUUM, NO.2

main36482-27010iCM6#,YM6#198610-199110

main36482-27011iCM6#,YM6#199110-199310

36704RESERVOIR SUB-ASSY, TRANSMISSION VACUUM

main36704-27010iCM6#,YM6#198610-199110

main36704-27030iCM6#,YM6#199110-199310
