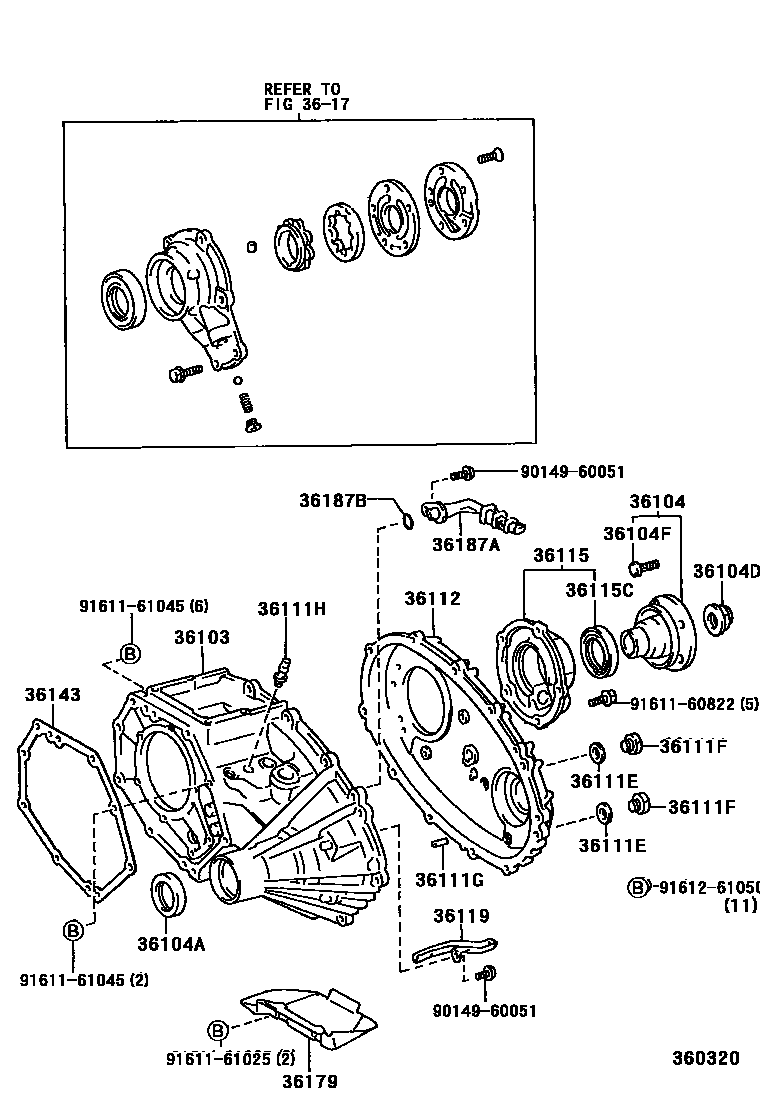

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

36103CASE SUB-ASSY, TRANSFER

main36103-26020iCM65..TS;CM60,61,YM6#199505-199611

main36103-28011iCM6#,YM60198610-198912

main36103-28012iCM6#,YM60198912-199001

main36103-28020iCM65..TS;CM60,61,YM6#199001-199505

36104FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)

main33309-26010iCM65..TS;CM60,61,YM6#198904-199409

main33309-26011iCM65..TS;CM60,61,YM6#199409-199508

main33309-28010iCM6#,YM60198610-198904

36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)

main90311-37002iCM6#,YM6#199208-199705

main90311-37003iCM6#,YM6#199705

main90311-38026iCM6#,YM60198610-198911

main90311-38039iCM6#,YM6#198911-199208

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-20010iCM6#,YM6#198610-199508

36104FBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90114-10017iCM6#,YM6#198610-199508

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iCM6#,YM6#198610-199508

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iCM6#,YM6#198610-199508

main90341-18057iCM6#,YM6#198610-199508

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iCM65..TS;CM60,61,YM6#198610-199611

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03085iCM6#,YM6#198610-199611

36112CASE, TRANSFER, REAR

main36112-28030iCM6#,YM6#198610-199611

36115HOUSING, TRANSFER EXTENSION

main36105-28010iCM6#,YM6#198610-199502

main36105-28020iCM6#,YM6#199502-199611

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-52021iCM6#,YM6#199705

main90311-54001iCM6#,YM6#198610-199705

36119RECEIVER, TRANSFER OIL, NO.1

main36119-25010iCM65..TS;CM60,61,YM6#199508-199611

main36119-28010iCM6#,YM6#198610-199508

36143GASKET, TRANSFER CASE, FRONT

main36143-28020iCM6#,YM6#198610-199611

3617TRANSFER OIL PUMP

→ Go to FIG 36-17

36179PROTECTOR, TRANSFER CASE LOWER

main36179-28011iCM6#,YM60198610-198911

main36179-28020iCM6#,YM6#198911-199611

36187ASTRAINR, TRANSFER OIL, NO.1

main36187-25010iCM65..TS;CM60,61,YM6#199502-199611

main36187-28010iCM6#,YM6#198610-199502

36187BRING, O (FOR TRANSFER OIL STRAINER)

main96721-24017iCM6#,YM6#198610-199611

9014960051

main90149-60051

9161160822

main91611-60822

9161161025

main91611-61025

9161161045

main91611-61045

9161261050

main91612-61050

23 parts on this diagram · 2 diagrams in section
