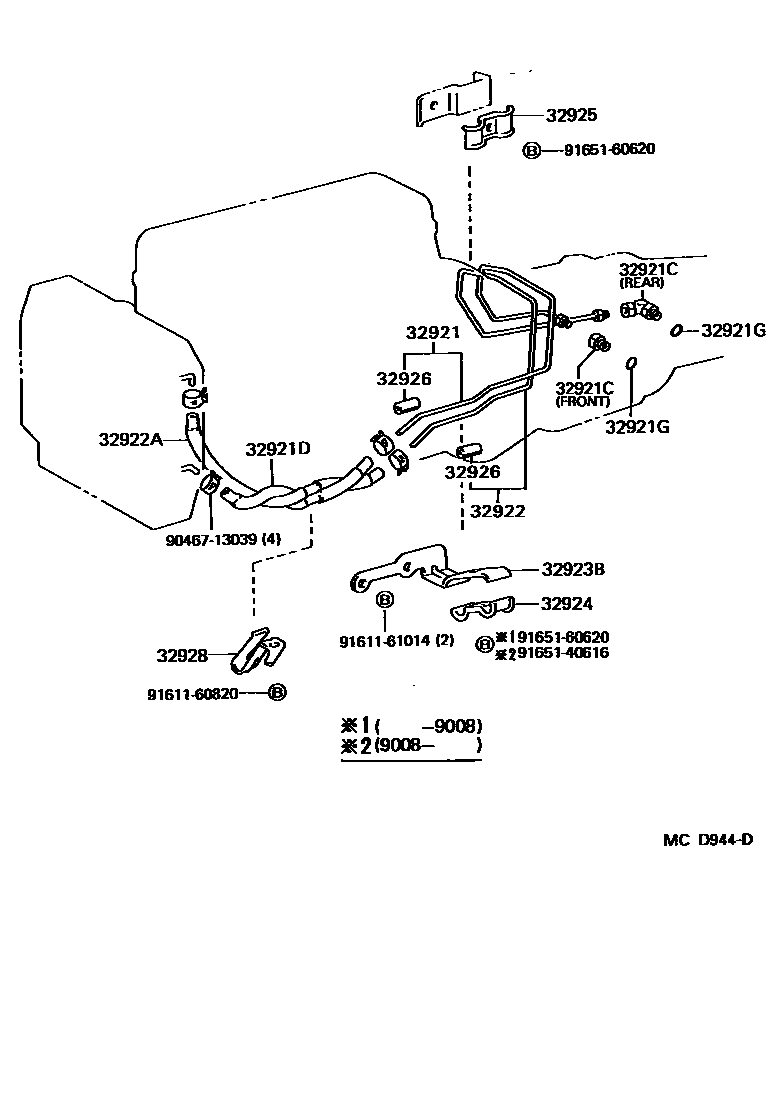

OIL COOLER & TUBE (ATM)

0001 1A41 0002 1A42D 0003 1A42D

32921TUBE, OIL COOLER INLET, NO.1

main32921-27060iKM51..3HC198610-198908

main32921-27070iCM51,55..4HC198610-199109

main32921-27071×2iCM51,55..4HC199305

main32921-27090iKM51..ATM199008-199305

main32921-27120iYM55..4HC199410

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iCM55..4HC..CBU;CM51,KM51,YM55..ATM198610

main90407-16010iCM55..4HC..CBU;CM51,KM51,YM55..ATM198610

32921DHOSE(FOR OIL COOLER INLET)

main32941-27070iKM51..3HC198610-198907

main32941-27071iKM51..3HC198907-198908

main32941-27090iCM51,55..4HC198610-198907

main32941-27091iCM51,55..4HC198907

main32941-27190iKM51,YM55..ATM199008

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iCM51,55,KM51,YM55..ATM198610

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-27020iKM51..3FC;KM51..3HC..DX198908-199008

main32922-27070iCM51,55..4HC198610-199305

main32922-27090iKM51..ATM199008-199305

main32922-27120iYM55..4HC199410

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-26061iYM55..4HC199410

main32942-27050iKM51..3HC198610-198907

main32942-27051iKM51..ATM198907-199008

main32942-27070iCM51,55..4HC198610-198907

main32942-27071iCM51,55..4HC198907

main32942-27180iKM51..ATM199008

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-27010iKM51..3FC;KM51..3HC..DX198908

main32923-27020iKM51..3FC;KM51..3HC..DX198908

main32924-27010iCM51,55..4HC198610

main32924-27020iYM55..4HC199410

32924CLAMP, OIL COOLER TUBE, NO.2

main32929-28010iCM51,55,YM55..4HC198610

main90462-12044iKM51..3FC;KM51..3HC..DX198908

32925CLAMP, OIL COOLER TUBE, NO.3

main32923-27030iYM55..4HC199410

main32923-28040iCM51,55..4HC198610

main90462-12044iKM51..3HC198610-198908

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×8iKM51..3HC..DX;CM51,55,KM51..3FC,4HC198908

32928CLAMP, FLEXIBLE HOSE, NO.1

main90949-01257iCM51,55,KM51..ATM198610-198712

main90949-01450iKM51..3HC198711-198712

9046713039

main90467-13039

9161160820

main91611-60820

9161161014

main91611-61014

9165140616

main91651-40616

9165160620

main91651-60620

16 parts on this diagram · 3 diagrams in section
