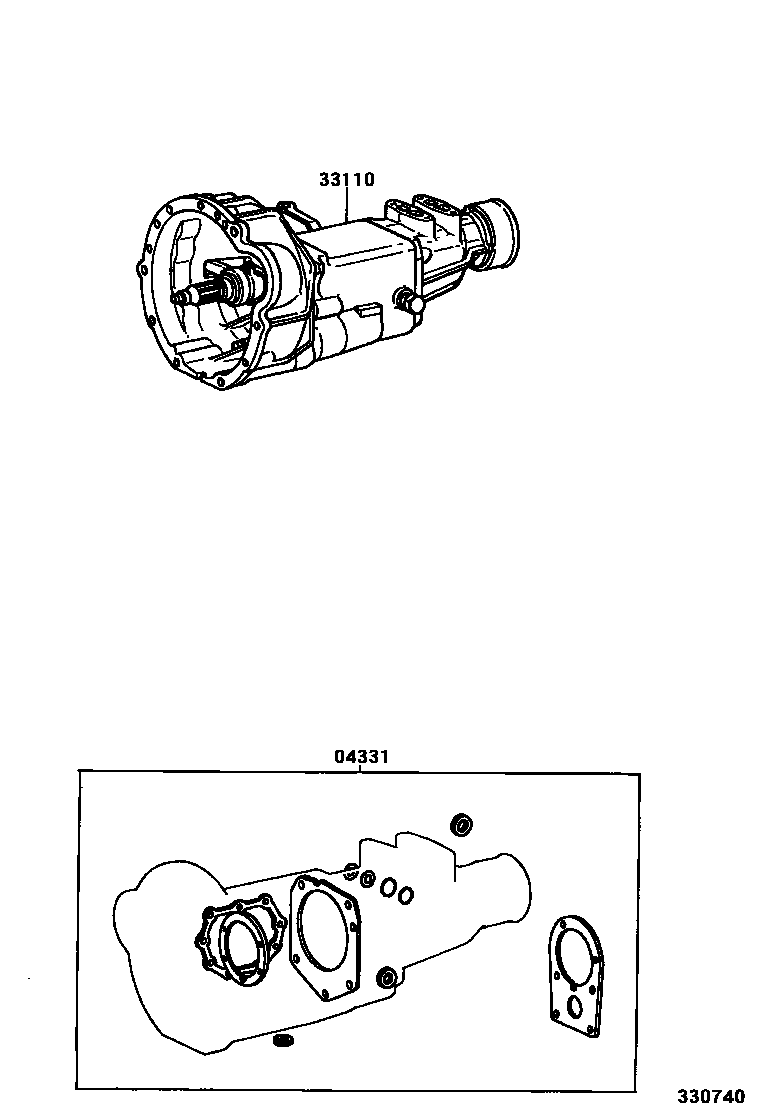

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-35090iKM51..SJL..4H;KM50,YM55..JL,SJL,T1198610-199008

main04331-35101iYM60;CM5#,6#,KM51,YM55,65..5F,5H198610-199310

33110TRANSMISSION ASSY, MANUAL

main33030-27130iKM51..5F198610-198808

main33030-27140iYM60..SPX198610-198808

main33030-27141iYM60..SPX198808-199008

main33030-27330iCM50,55..5H198610-198711

*FGR=4.100 OR 4.556

main33030-27332iCM52,55..5H199005-199906

main33030-27340iCM50..SJL198610-198711

*FGR=4.300

main33030-27350iCM6#198610-198711

main33030-27351iCM6#198808-198811

main33030-27352iCM6#199005-199310

main33030-27353iCM6#199611-199906

main33030-27360iYM60..DX198610-198711

main33030-27361iYM60..DX198808-198811

main33030-27370iKM50..JL,SJL; KM50..T1198610-199008

165R13 TIRE

main33030-27391iYM55198610-199008

main33030-27420iKM50..T1198610-199008

main33030-27430iKM51..4H198610-199008

main33030-27840iKM51..5F198808-199008

main33030-27880iCM51..5H198910-199005

main33030-27881iCM51..5H199005-199906

main33030-27915iCM50,55..5H198808-199005

main33030-27916iCM50..SJL198808-198811

*FGR=4.300

main33030-27917iCM6#198811-199005

main33030-27918iYM60..DX198811-199008

main33030-27934iYM6#..DX199008-199906

main33030-2K110iKM51..5F199109-199410

main33030-2K140iCM55..5H..IV199404-199906

main33030-2K900iYM55..5H199008-199906

main33030-2K901iYM60..SPX199008-199906

main33030-2K902iKM51..5H199008-199906

main33110-27922iKM51..5F199008-199109

2 parts on this diagram · 2 diagrams in section
