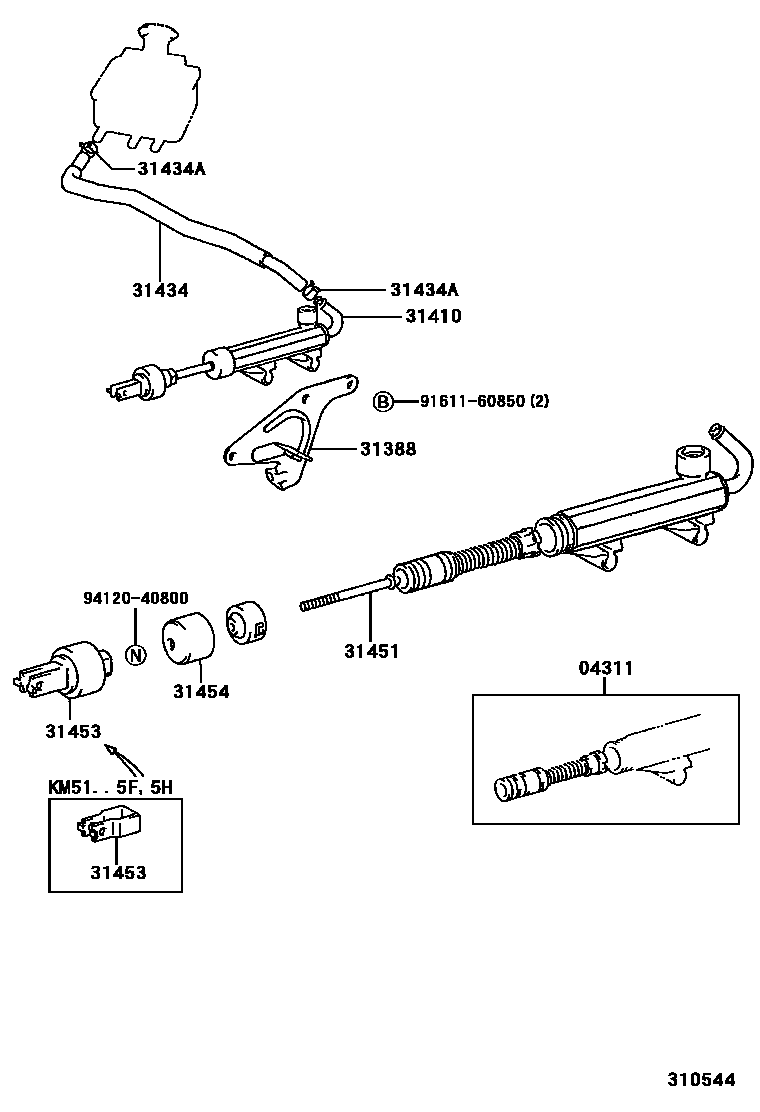

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-27010iCM65..TS;CM5#,60,61,KM51,YM55,6#..MTM199310-199611

31388SUPPORT, CLUTCH MASTER CYLINDER

main55105-95707iCM5#,6#,KM5#,YM55,6#..MTM198610-199310

31410CYLINDER ASSY, CLUTCH MASTER

main31410-27052iKM51..5F198710-198711

main31420-27050iKM51..5F198610-198708

main31420-27051iKM51..5F198708-198710

main31420-27052iKM51..5F,5H198711

main31420-27070iCM50,55,6#,YM55,60..MTM198610-198708

main31420-27071iCM50,55,6#,YM55,60..MTM198708-198710

main31420-27072iCM5#,6#,YM55,6#..MTM198710-199310

31434TUBE, CLUTCH RESERVOIR

main31434-27040iCM65..TS;CM5#,60,61,KM51,YM55,6#..MTM199310-199611

main31434-28090iCM5#,6#,KM51,YM55,6#..MTM199611

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90467-16002×2iCM5#,6#,KM51,YM55,6#..MTM199611

main96132-30800×2iCM65..TS;CM5#,60,61,KM51,YM55,6#..MTM199310-199505

main96133-41300×2iCM65..TS;CM5#,60,61,KM51,YM55,6#..MTM199505-199611

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-27010iKM51..5F,5H198610

main31451-27020iCM5#,6#,YM55,6#..MTM199611

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-27010iCM5#,6#,YM55,6#..MTM199611

main31453-27010iKM51..5F,5H198610

31454BOOT, CLUTCH MASTER CYLINDER

main31454-27010iCM5#,6#,KM51,YM55,6#..MTM199611

9161160850

main91611-60850

9412040800

main94120-40800

10 parts on this diagram · 1 diagram in section
