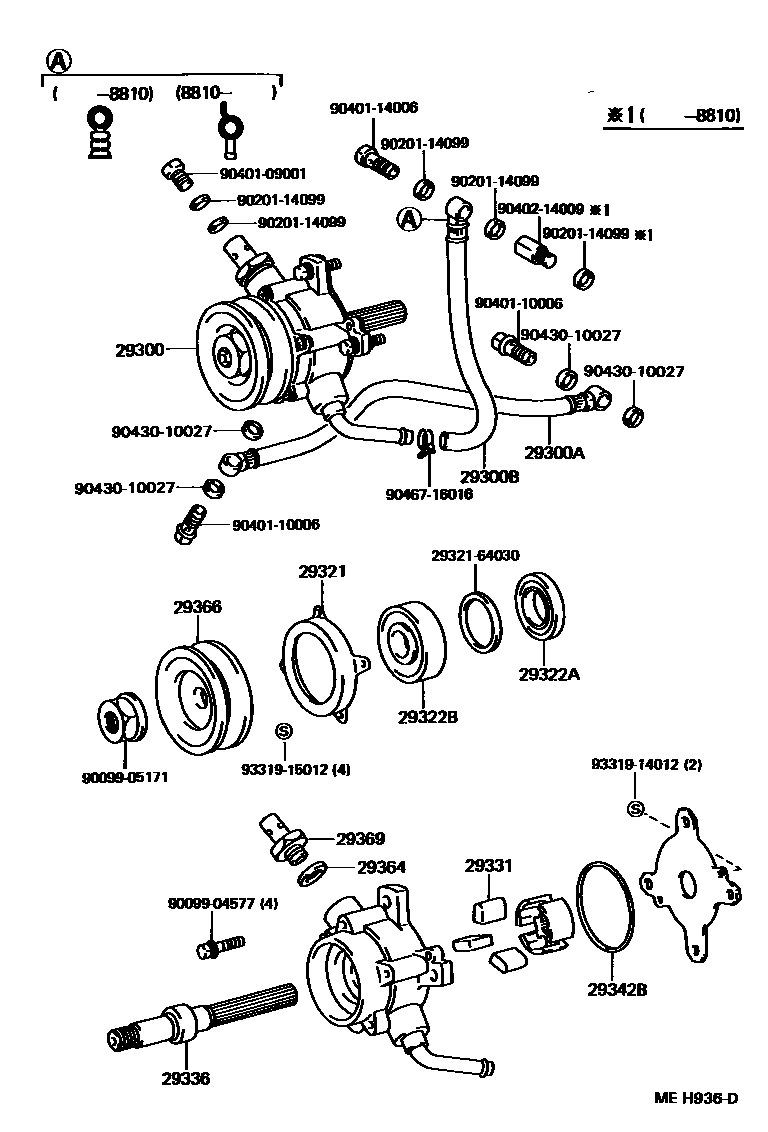

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-64031i1C,2C..CM5#,6#198610-199008

main29300-64050i2C..CM65..IV198911-199008

main29300-64060i2C..CM5#,6#199008-199310

main29300-64110i2C..CM65..TS;2C..CM5#,60,61199310-199611

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02099i1C,2C..CM5#,6#198610-199310

main90923-02116i2C..CM55..IV;2C..CM51..SJL;2C..CM51..JL..5H..IV199110-199310

TECS

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-64010i1C,2C..CM5#,6#198810-199310

main29611-64080i2C..CM55..IV;2C..CM51..SJL;2C..CM51..JL..5H..IV199110-199310

TECS

main90923-02102i1C,2C..CM5#,6#198610-198810

29321RING, OIL SEAL STOP, VACUUM PUMP

main29314-64030i1C,2C..CM5#,6#198610-199310

29322ASEAL, VACUUM PUMP OIL

main29341-64030i1C,2C..CM5#,6#198610-199310

29322BBEARING, VACUUM PUMP

main90099-10166i2C..CM55..4HC;2C..CM51,55,65..IV199310-199611

29331BLADE, VACUUM PUMP, A

main29331-64030×3i1C,2C..CM5#,6#198610-199310

29336SHAFT, VACUUM PUMP

main29336-64030i1C,2C..CM5#,6#198610-199008

main29336-64031i2C..CM5#,6#199008-199310

29342BRING, O

main29342-64030i1C,2C..CM5#,6#198610-199310

29364WASHER, VACUUM PUMP

main29364-66010i1C,2C..CM5#,6#198610-199310

29366PULLEY, VACUUM PUMP

main29366-64031i1C,2C..CM5#,6#198610-199008

main29366-64050i2C..CM65..IV198911-199310

main29366-64060i2C..CM5#,6#199008-199310

29369VALVE SUB-ASSY, CHECK

main29369-64030i1C,2C..CM5#,6#198610-199310

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114006

main90401-14006

9040214009

main90402-14009

9043010027

main90430-10027

9046716016

main90467-16016

9331914012

main93319-14012

9331915012

main93319-15012

24 parts on this diagram · 2 diagrams in section
