STARTER

0001 112V 0.6KW 0002 112V 0.8KW 0003 112V 0.8KW 0004 112V 1.0KW 0005 112V 1.0KW 0006 112V 1.4KW 0008 112V 2.0KW 0010 112V 2.5KW 0011 112V 2.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-13060i4K..KM50198711-199008

main28011-15010i4K..KM50198711-198808

main28011-26042i5K..KM51..3FC,5H;5K..KM51..JL..4H198910

main28011-64010i2C..CM51,55..4HC; 2C..CM60,65..TB;2C..CM51,52,61..5H;2C..CM55,65..JLC,SJLC198808-199310

main28011-64020i1C,2C..CM50,55,6#..5H198610-198708

main28011-64030i2C..CM51,55..4HC198610-198708

main28011-64130i2C..CM65..TS;2C..CM5#,60,61199310-199611

main28011-70020i5K..KM51198808

28100STARTER ASSY

main28100-13010i5K..KM51..3FC,5H;5K..KM51..JL..4H198910-199906

main28100-13020i4K..KM50..IV;4K..KM50..GUT;4K..KM50..1SO198808-199008

main28100-13060i4K..KM50198610-198705

main28100-13061i4K..KM50198705-199005

main28100-13080i5K..KM51198808-199906

main28100-64020i2C..CM51,55..4HC198610-199310

main28100-64030i2C..CM51,55..4HC198610-198708

main28100-64040i1C,2C..CM5#,6#198708-198808

main28100-64100i1C,2C..CM5#,6#..5H198610-199310

main28100-64170i2C..CM5#,6#199611-199906

main28100-64290i2C..CM5#,6#199611-199906

main28100-72010i2Y..YM55,6#198610-199310

main28100-72130i2Y..YM55,6#199310-199712

main28100-72220i2Y..YM55,6#199712-199906

28110HOUSING ASSY, STARTER DRIVE

main28110-13010i5K..KM51..3FC,5H;5K..KM51..JL..4H198910-199906

main28110-13020i4K..KM50198711-198808

main28110-13060i4K..KM50198610-198711

12V 0.6KW

main28110-13070i4K..KM50198711-199008

main28110-13080i5K..KM51198808-199906

main28110-64070i2C..CM60,65..TB;2C..CM51,52,61..5H;2C..CM55,65..JLC,SJLC198808-199310

main28110-64170i2C..CM65..TS;2C..CM5#,60,61199310-199611

main28110-72010i2Y..YM55,6#198711-199906

main28115-64020i2C..CM51,55..4HC198711-199310

main28115-64030i2C..CM51,55..4HC198610-198708

main28115-64040i1C,2C..CM5#,6#198708-198711

main28115-64290i2C..CM65..TS;2C..CM5#,60,61199310-199611

28111BUSH(FOR STARTER HOUSING)

main28111-51011i4K..KM50198610-198711

main90099-10158i4K..KM50198610-198711

12V 0.6KW

main90099-10171i4K..KM50198711-199008

28113LEVER, STARTER PINION DRIVE

main28113-13060i4K..KM50198610-199008

12V 0.6KW

main28113-15011i4K..KM50198610-199008

main28113-70020i5K..KM51198808

12V 0.8KW

28119COVER, STARTER END FRAME

main28119-54070i2C..CM51,55..4HC198610-199008

main28199-15090i4K..KM50198610-199008

main28199-72020i2C..CM55..SJL..5H;1C,2C..CM50,6#..(JL,SJL,T1)..(GUT,TS)198610-199101

12V 1.4KW

main28199-74110i2C..CM5#,6#..5H199101-199310

main28199-77090i2C..CM51,55..4HC198610-198708

28120YOKE ASSY, STARTER

main28120-13060i4K..KM50198610-199008

main28120-13080i5K..KM51198808-198902

main28120-13081i5K..KM51198902

main28120-15090i2C..CM55..SJL..5H;1C,2C..CM50,60,65..(JL,SJL,T1)..(GUT,TS)198610-199310

12V 1.4KW

main28120-26071i5K..KM51..3FC,5H;5K..KM51..JL..4H198910

main28120-26140i4K..KM50198610-198711

main28120-55050i2C..CM5#,6#199708

main28120-56081i2C..CM51,55..4HC198610-198708

main28120-64020i2C..CM51,55..4HC198610-198711

12V 2.0KW

main28120-64040i2C..CM5#,6#199611

main28120-64130i2C..CM5#,6#199611-199708

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i5K..KM51..(SJL,T1)..(3HC,4H,5F)198610

12V 1.0KW

main28130-13020i4K..KM50198610-198711

main28130-13060i4K..KM50198711-199008

main28130-13080i5K..KM51198808

main28130-64030i2C..CM51,55..4HC198610-198708

main28130-64100i2C..CM55..SJL..5H;1C,2C..CM50,6#..(JL,SJL,T1)..(GUT,TS)198610-199101

12V 1.4KW

main28130-64110i2C..CM5#,6#..5H199101-199310

main28130-64170i2C..CM65..TS;2C..CM5#,60,61199310-199611

12V 1.4KW

main28130-72010i2Y..YM55,60198610-198711

12V 1.0KW

28131BUSH, COMMUTATOR END FRAME

main90099-10134i4K..KM50198808-199008

main90099-10157i4K..KM50198610-198711

12V 0.6KW

28142BRUSH, STARTER

main28142-10020×4i4K..KM50198610-198711

12V 0.6KW

main28142-70020×2i5K..KM51198808

28143SPRING, STARTER BRUSH

main28143-10020×4i4K..KM50198610-198711

12V 0.6KW

main28143-70020×4i5K..KM51198808

main90099-17112×4i2C..CM60,65..TB;2C..CM55,65..JLC,SJLC;2C,2Y..CM51,52,61,YM55,6#..MTM; 5K..KM51..(SJL,T1)..(3HC,4H,5F)198711-199310

12V 1.0KW

main90099-17115×4i2C..CM51,55..4HC198610-198711

12V 2.0KW

28146HOLDER, STARTER BRUSH

main28149-10020i4K..KM50198610-198711

12V 0.6KW

28149PLATE, STARTER

main28141-10020i4K..KM50198711-199008

28150SWITCH ASSY, MAGNET STARTER

main28150-10020i4K,5K..KM5#198808-199103

main28150-10021i5K..KM51199103

main28150-13011i5K..KM51..(SJL,T1)..(3HC,4H,5F)198610-199712

main28150-13012i5K..KM51199712

main28150-34080i2Y..YM55,6#198610-199310

main28150-37010i4K..KM50198610-198808

main28150-64020i2C..CM51,55..4HC198610-199104

main28150-64021i2C..CM51,55..4HC199104-199310

main28150-64030i2C..CM51,55..4HC198610-198708

main28150-64040i1C,2C..CM5#,6#198808-199106

main28150-64041i2C..CM5#,6#199106-199310

main28150-64070i2C..CM51..5H;2C..CM6#..TB;2C..CM55,65..JLC,SJLC198808-199010

main28150-64100i2C..CM5#,6#..5H199010-199101

main28150-64101i2C..CM5#,6#..5H199101-199310

main28150-64130i2C..CM65..TS;2C..CM5#,60,61199310-199611

main28150-64170i2C..CM5#,6#199708

main28150-64190i2C..CM5#,6#199611-199712

main28150-64290i2C..CM5#,6#199712

main28150-72130i2Y..YM55,6#199310-199712

main28150-72220i2Y..YM55,6#199712

28160ARMATURE ASSY, STARTER

main28160-10020i4K..KM50198711-199008

main28160-15010i4K..KM50198711-198808

main28160-15090i2C..CM6#..TB198808-198908

main28160-15091i1C,2C..CM5#,6#..5H198908-199310

main28160-26070i5K,2Y..KM51,YM55,60198610-198711

12V 1.0KW

main28160-26071i2Y..YM55,6#; 5K..KM51198908

main28160-47040i2C..CM51,55..4HC198610-198708

main28160-54070i2C..CM51,55..4HC198610-198711

12V 2.0KW

main28160-54071i2C..CM51,55..4HC198908-199310

main28160-64040i1C,2C..CM5#,6#198808-199007

main28160-64041i2C..CM5#,6#199611

main28160-70020i5K..KM51198808-198812

main28160-70021i5K..KM51198812

main28160-74070i2C..CM65..TS;2C..CM5#,60,61199310-199611

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-10020×2i4K..KM50198610-198711

12V 0.6KW

main28163-40011i4K..KM50198711-198808

main28163-70020i5K..KM51198808

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i4K..KM50198808-199008

main90099-07124i4K..KM50198610-198711

12V 0.6KW

28199COVER, STARTER

main28159-13060i4K..KM50198610-199008

main28199-13011i5K..KM51..(SJL,T1)..(3HC,4H,5F)198610

main28199-15110i4K..KM50198808-199008

main28199-46080i5K..KM51;2C..CM51,55..4HC199103-199310

2813826142RUBBER(FOR STARTER BEARING COVER)

main28138-26142

9009901524

main90099-01524

9009904332

main90099-04332

9009904343

main90099-04343

9009905118

main90099-05118

9009905178

main90099-05178

9009912405

main90099-12405

9017908146

main90179-08146

9161161035

main91611-61035

9411040800

main94110-40800

9451100800

main94511-00800

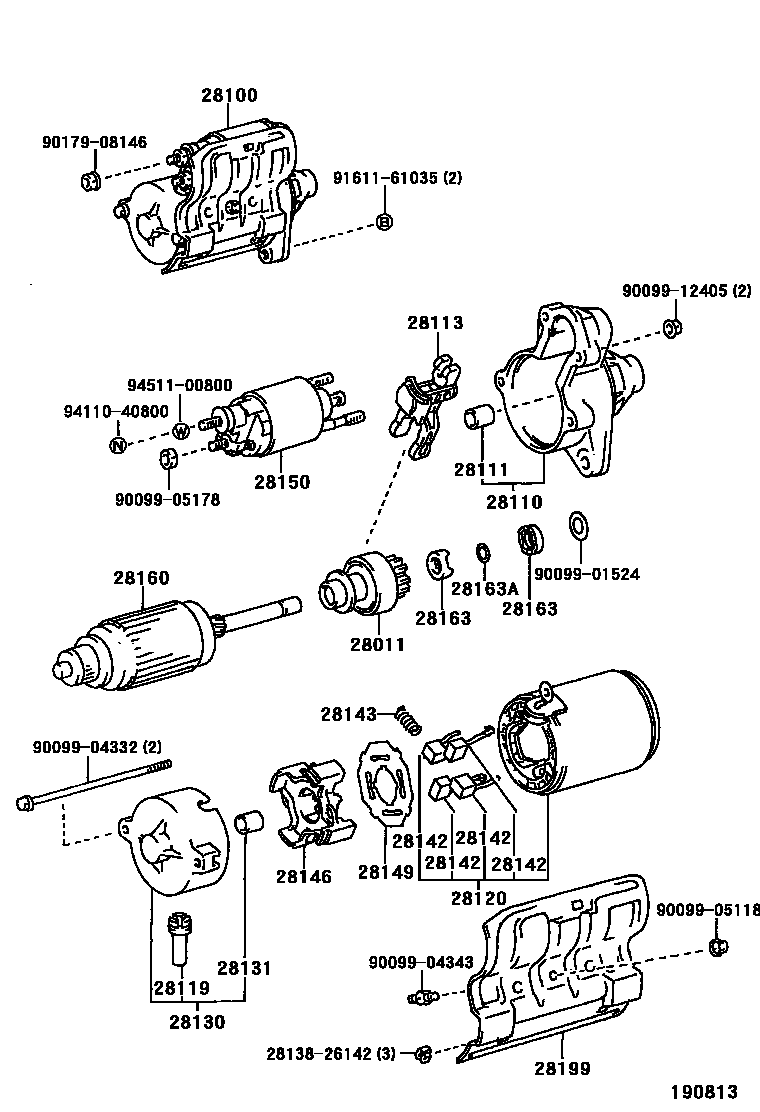

29 parts on this diagram · 9 diagrams in section
