DISTRIBUTOR

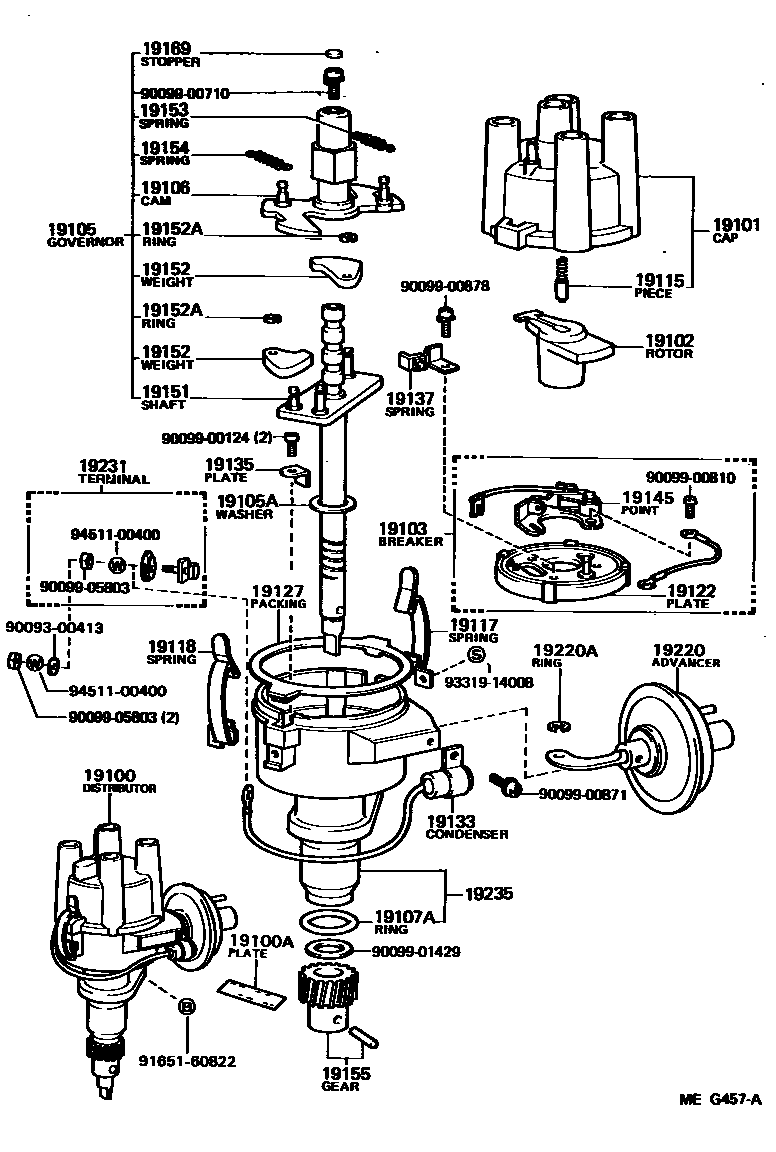

Parts diagram

19100DISTRIBUTOR ASSY

main19030-71060i198610-199508

main19030-72032i199508

main19060-13140i199008-199110

main19060-13150i199110-199509

main19060-13200i199509

main19100-13370i198610-199008

main19100-13400i198610-199008

19100ATAPE, SEALING

main90919-24004i198610-199312

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-13010i199110

main19101-71010i198610

main19101-71020i198610-199110

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-16040i198708-198711

main19102-26151i198902-199008

main19102-33012i198902

main19102-63010i198610-198708

19103BREAKER SUB-ASSY, DISTRIBUTOR

main19103-13070i198610-199008

19105GOVERNOR SUB-ASSY

main19105-13370i198610-198902

main19105-13400i198610-198902

main19105-71010i199508

main19105-71060i198610-199508

19105AWASHER(FOR GOVERNOR SHAFT THRUST)

main90099-01385i198610-198902

main90099-01386i198610-198902

main90099-01387i198610-198902

main90099-01412i198610-198902

main90099-01486×2i198610

main90099-01487×2i198610

main90099-01488×2i198610

main90099-01489×2i198610

19106CAM SUB-ASSY, DISTRIBUTOR

main19106-26022i198610-199008

main19106-33021i198610-199008

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i198610-199103

main90099-14090i199103

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i198610-199110

main19115-63010×2i198705

main19115-71010×2i198610-198705

main19115-88280i199110

19117SPRING, DISTRIBUTOR CAP, A

main19117-24080i198610-199008

19118SPRING, DISTRIBUTOR CAP, B

main19117-24080i198610-199008

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-13070i198610-199008

main19122-88263i199008

19127PACKING, DUST PROOF

main19127-15010i198610

main19127-63010i198610-198711

NO.1

main19127-63020i198610-198711

NO.2

19133CONDENSER, DISTRIBUTOR

main90099-52059i198610-199008

19135PLATE, HOLDER

main19135-24080×2i198610

19137SPRING SUB-ASSY, DAMPER

main19137-33012i198610-199008

19145POINT, DISTRIBUTOR

main19145-26060i198610-199008

19151SHAFT, GOVERNOR

main19151-24081i198610-198902

main19151-71010i198610

19152WEIGHT, GOVERNOR

main19152-63010×2i198610

main19152-71010×2i198610-198708

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07122×2i198610

19153SPRING, GOVERNOR, A

main19153-13080i199008

main19153-13370i198610-199008

main19153-13400i198610-199008

main19153-71060i198610

19154SPRING, GOVERNOR, B

main19153-71060i198610

main19154-13080i199008

main19154-13370i198610-199008

main19154-13400i198610-199008

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-13060i198610

main19195-24081i198610-199008

main19195-71010i198610-199603

main19195-72090i199603

19169STOPPER, CAM GREASE

main19169-32010i198610-198705

main19169-63011i198610

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-13170i198610-199008

main19220-13180i199008-199509

main19220-13400i198610-199008

main19220-13470i199509

main19220-71060i198610-199508

main19220-72080i199508

19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)

main90099-07109i198610

19231TERMINAL, DISTRIBUTOR

main19231-38011i198610-199008

19235HOUSING, DISTRIBUTOR

main19235-13030i199008

main19235-13170i198902-199008

main19235-13370i198902-199008

main19235-71010i198610-199906

9009300413

main90093-00413

9009900124

main90099-00124

9009900710

main90099-00710

9009900810

main90099-00810

9009900871

main90099-00871

9009900878

main90099-00878

9009901429

main90099-01429

9009905803

main90099-05803

9165160822

main91651-60822

9331914008

main93319-14008

9451100400

main94511-00400

40 parts on this diagram · 3 diagrams in section
