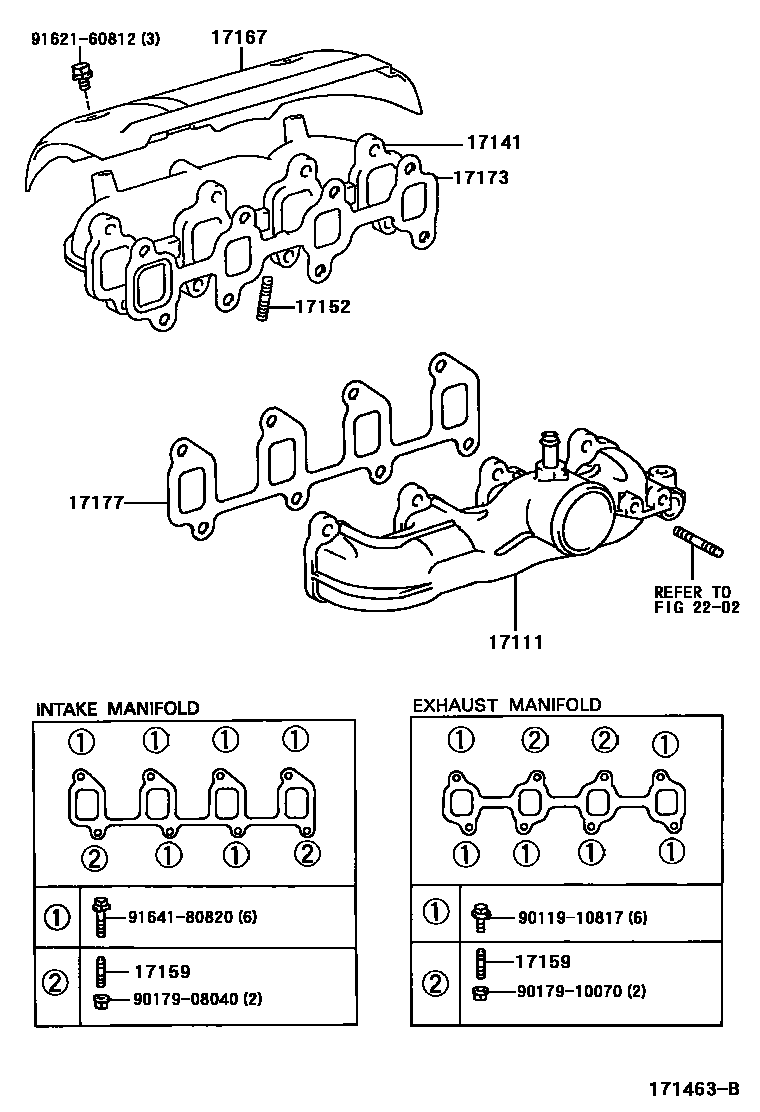

MANIFOLD

0001 1 0002 1W/EGR 0003 1 0004 1 0005 1 0006 1

17111MANIFOLD, INTAKE

main17101-64080i1C,2C..CM5#,6#198610-199508

main17101-64081i2C..CM5#,6#199508-199611

main17101-64091i2C..CM51,55..4HC199508-199810

sub17101-64092

main17101-64092i2C..CM51,55..4HC199810

main17111-71010i2Y..YM55,6#198610

17141MANIFOLD, EXHAUST

main17141-64011i1C,2C..CM5#,6#198610-198906

sub17141-64012

sub17173-64060

main17141-64012i1C,2C..CM5#,6#198906-199611

main17141-64230i2C..CM51,55..4HC199508

main17141-71010i2Y..YM55,6#199508

main17141-71020i2Y..YM55,6#198610-199508

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10056i4K,5K..KM5#198610-198705

sub90116-10087

main90116-10058i2Y..YM55,60198610-199307

main90116-10087i5K..KM51198705-199008

main90116-10146i2C..CM5#,6#199001-199611

main90116-10148i2Y..YM55,60198909-199001

main90126-10003i2C..CM65..TS;2C..CM5#,60,61199307-199402

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10063i2Y..YM55,6#198610

main90116-10095i1C,2C..CM5#,6#198610-199310

EXHAUST SIDE

main90116-10095i2C..CM65..TS;2C..CM5#,60,61199310-199512

EXHAHST SIDE

main90126-10017i2C..CM65..TS;2C..CM5#,60,61199512-199611

EXHAHST SIDE

main92122-41028i4K..KM50198610-199008

main92122-60820i2C..CM65..TS;2C..CM5#,60,61198610-199611

INTAKE SIDE

main92122-61028i5K..KM51199005-199610

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-64020i1C,2C..CM5#,6#198610-199408

main17167-64100i2C..CM5#,6#199408-199611

main17167-71020i2Y..YM55,6#198610

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-64020i1C,2C..CM5#,6#198610-198906

sub17173-64050

main17173-64060i1C,2C..CM5#,6#198906-199611

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-64010i1C,2C..CM5#,6#198610-198903

sub17177-64020

main17177-64020i1C,2C..CM5#,6#198903-199611

2202

9011910817

main90119-10817

9017908040

main90179-08040

9017910070

main90179-10070

9162160812

main91621-60812

9164180820

main91641-80820

13 parts on this diagram · 6 diagrams in section
