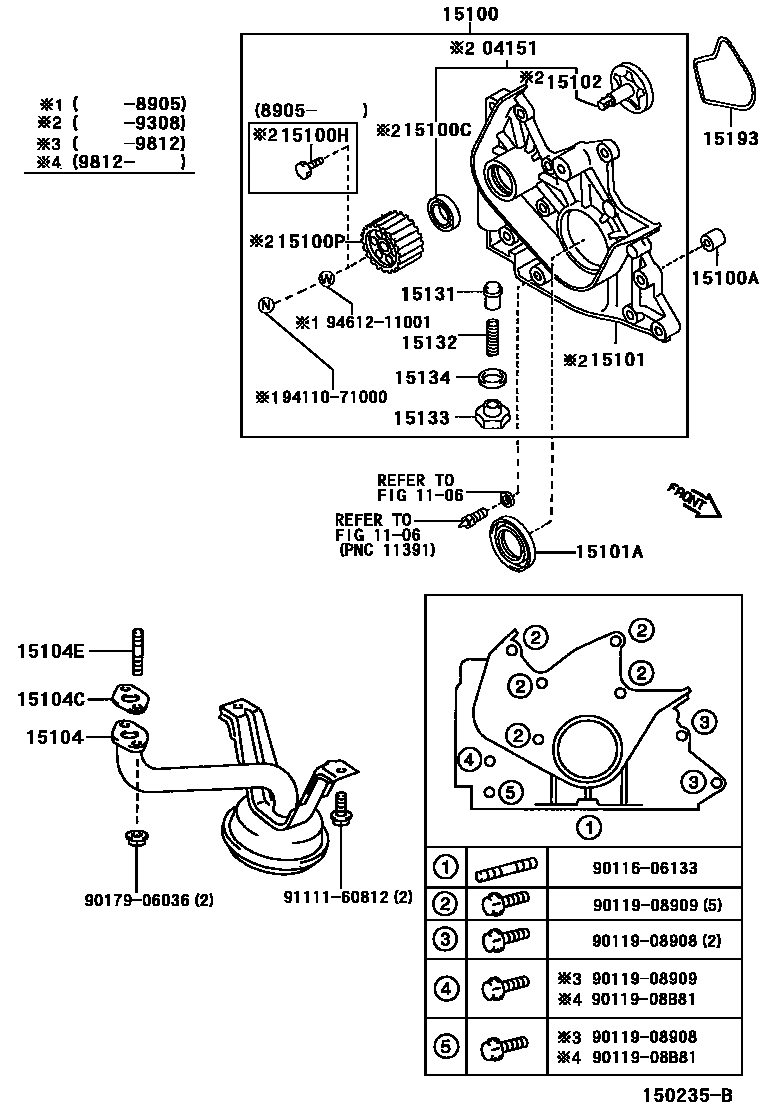

ENGINE OIL PUMP

0001 1 0002 1 0003 1

04151ROTOR KIT, OIL PUMP

main04151-64010i1C..CM50198905-198910

main04151-64020i2C..CM51,52,55,6#198905-199308

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15100PUMP ASSY, OIL

main15100-13030i4K,5K..KM5#198610

main15100-64011i1C..CM50198610-198808

main15100-64012i1C..CM50198808-198905

main15100-64020i2C..CM51,55,6#198610-198808

main15100-64021i2C..CM51,55,6#198808-198905

main15100-64030i1C..CM50198905-198910

main15100-64040i2C..CM5#,6#199611-199812

main15100-64041i2C..CM5#,6#199812

main15100-71010i2Y..YM55,6#198610

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i2C..CM65..TS;2C..CM5#,60,61199310-199611

15100CSEAL(FOR OIL PUMP)

main90029-21007i1C,2C..CM5#,6#198610-198905

main90029-21014i1C,2C..CM5#,6#198905-199110

main90029-21022i2C..CM5#,6#199110-199308

15100HBOLT, SEAL

main15189-55010i1C,2C..CM5#,6#198905-199308

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-64010i1C,2C..CM5#,6#198610-198905

main13524-64020i1C,2C..CM5#,6#198905-199308

15101BODY SUB-ASSY, OIL PUMP

main15101-64011i1C,2C..CM5#,6#198610-198808

main15101-64012i1C,2C..CM5#,6#198808-198905

main15101-64030i1C,2C..CM5#,6#198905-199308

15101ASEAL(FOR CRANKSHAFT)

main90311-42015i1C,2C..CM5#,6#198610-199010

main90311-42026i2C..CM5#,6#199010-199310

main90311-42030i2C..CM65..TS;2C..CM5#,60,61199401-199606

main90311-42031i2C..CM5#,6#199611

15102ROTOR SET, OIL PUMP

main15102-24010i4K,5K..KM5#198610

main15102-64010i1C..CM50198610-198808

main15102-64012i1C..CM50198808-198905

main15102-64020i2C..CM51,55,6#198610-198808

main15102-64021i2C..CM51,55,6#198808-198905

main15102-64030i1C..CM50198905-198910

main15102-64040i2C..CM51,52,55,6#198905-199308

main15102-71010i2Y..YM55,6#198610

15104STRAINER SUB-ASSY, OIL

main15104-64030i1C,2C..CM5#,6#198610-199201

main15104-64050i2C..CM65..TS;2C..CM5#,60,61199310-199611

15104CGASKET(FOR OIL STRAINER)

main15149-64010i1C,2C..CM5#,6#198610-198903

main15149-64030i1C,2C..CM5#,6#198903-199310

main15149-64070i2C..CM5#,6#199812

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06032×2i1C,2C..CM5#,6#198610-199108

main90116-06132×2i2C..CM5#,6#199108-199310

15131VALVE, OIL PUMP RELIEF

main15131-24010i2Y..YM55,6#; 4K,5K..KM5#198610

main15131-64020i1C,2C..CM5#,6#198610-199310

main15131-64041i2C..CM5#,6#199812

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i2C..CM5#,6#199812

main15132-40010i2Y..YM55,6#; 4K,5K..KM5#198610

main15132-64012i2C..CM5#,6#199611-199812

main15132-76011i1C,2C..CM5#,6#198610-198808

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1C,2C..CM5#,6#198610-199310

main15133-24010i2Y..YM55,6#198610

main15133-64041i2C..CM5#,6#199812

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i1C,2C..CM5#,6#198610-199310

main15134-67020i2C..CM5#,6#199812

15193GASKET, OIL PUMP

main15193-64021i2C..CM65..TS;2C..CM5#,60,61199310-199611

main15193-64022×2i2C..CM5#,6#199804

9011606133

main90116-06133

9011908908

main90119-08908

9011908909

main90119-08909

9011908B81

main90119-08B81

9017906036

main90179-06036

9111160812

main91111-60812

9411071000

main94110-71000

9461211001

main94612-11001

26 parts on this diagram · 3 diagrams in section
