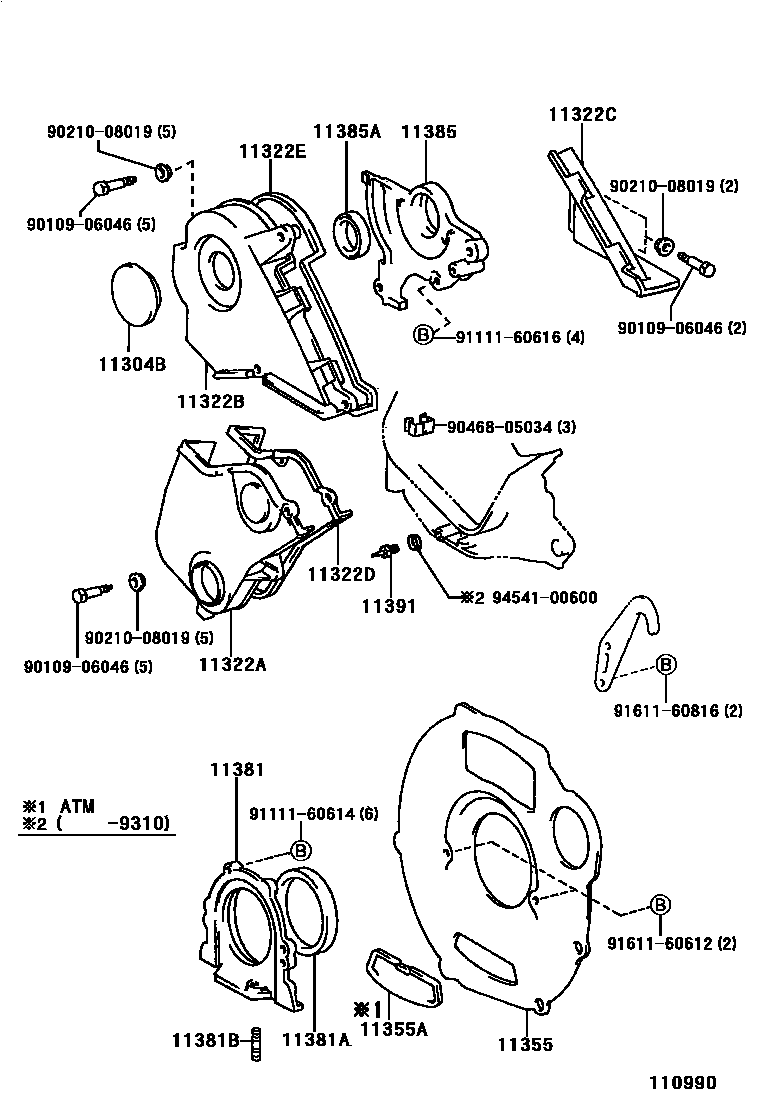

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01357i1C,2C..CM5#,6#198610-199310

11322ACOVER, TIMING BELT, NO.1

main11321-64010i2C..CM65..TS;2C..CM5#,60,61199310-199611

main11321-64011i2C..CM5#,6#199811-199904

main11321-64080i2C..CM5#,6#199904

11322BCOVER, TIMING BELT, NO.2

main11322-64010i1C,2C..CM5#,6#198610-199310

11322CCOVER, TIMING BELT, NO.3

main11323-64011i1C,2C..CM5#,6#198610-199310

11322DGASKET, TIMING BELT COVER, NO.1

main11328-64020i1C,2C..CM5#,6#198610-199310

main11328-64070i2C..CM5#,6#199904

11322EGASKET, TIMING BELT COVER, NO.2

main11329-64020i1C,2C..CM5#,6#198610-199310

11355PLATE, REAR END

main11355-13012i5K..KM51..5H;5K..KM51..SJL..5F199309

main11355-24043i4K,5K..KM5#198610-199309

main11355-64011i1C,2C..CM5#,6#..5H198610-199310

main11355-64021i2C..CM51,55..4HC198610

main11355-71010i2Y..YM55,6#..MTM198610

main11355-71021i2Y..YM55..4HC199410

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01160i2Y..YM55..4HC199410

main90950-01343i4K,5K..KM5#198610-199307

main90950-01548i2C..CM51,55..4HC198610

11381RETAINER, ENGINE REAR OIL SEAL

main11381-13011i4K,5K..KM5#198610

main11381-64012i2C..CM65..TS;2C..CM5#,60,61199310-199611

main11381-64020i2C..CM5#,6#199812

main11381-71010i2Y..YM55,6#198610

11381ASEAL, ENGINE REAR OIL

main90311-70004i4K,5K..KM5#198610-199705

main90311-70007i5K..KM51199705

main90311-80003i2Y..YM55,60198610-199004

main90311-80009i2Y..YM55,6#199004

main90311-90003i1C,2C..CM5#,6#198610-199002

ARAI

main90311-90005i2C..CM5#,6#198910-199011

main90311-90008i2C..CM5#,6#199011-199310

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06033×2i1C,2C..CM5#,6#198610-199110

main90116-06035×2i4K,5K..KM5#198711

main90116-06134×2i2C..CM5#,6#199611

11385RETAINER, CAMSHAFT OIL SEAL

main11382-64011i1C,2C..CM5#,6#198610-199310

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38025i1C,2C..CM5#,6#198610-199009

main90311-38044i2C..CM5#,6#199010-199310

main90311-38061i2C..CM5#,6#199611-199906

11391POINTER, TIMING

main11391-64010i1C,2C..CM5#,6#198610-199008

main11391-64020i2C..CM5#,6#199008-199310

9010906046

main90109-06046

9021008019

main90210-08019

9046805034

main90468-05034

9111160614

main91111-60614

9111160616

main91111-60616

9161160612

main91611-60612

9161160816

main91611-60816

9454100600

main94541-00600

22 parts on this diagram · 3 diagrams in section
