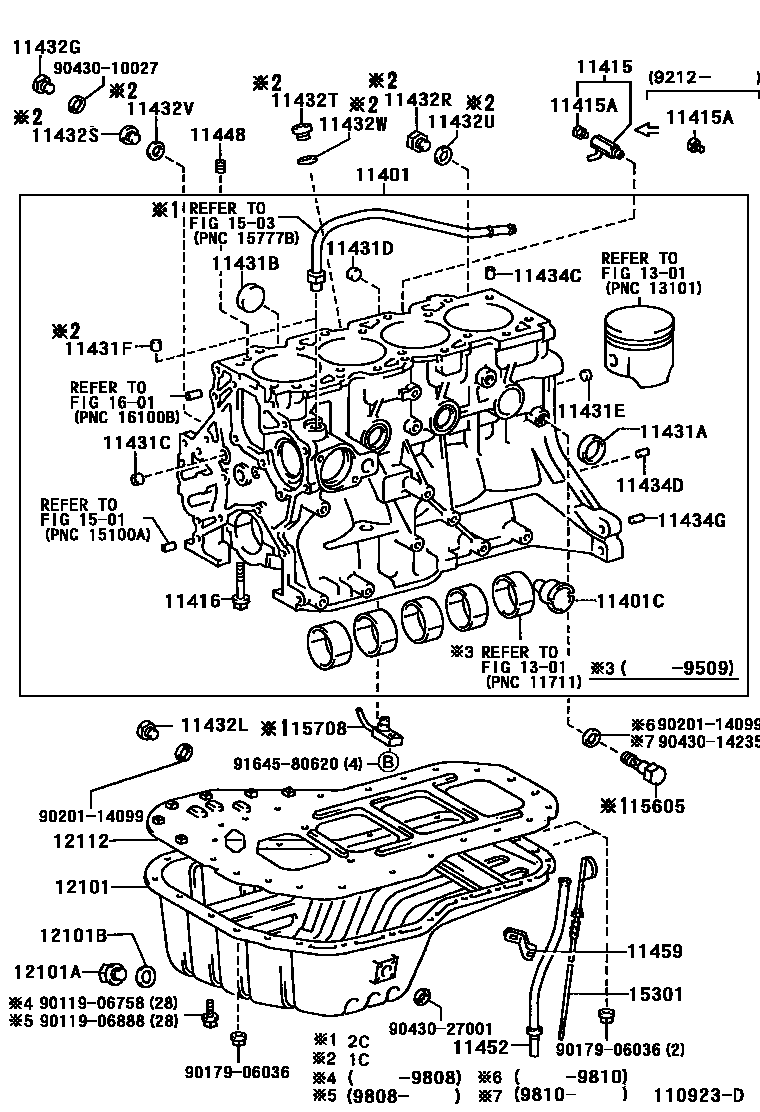

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19038i4K..KM50198610-199008

main11401-19335i5K..KM51198610-199504

sub11401-19336

sub11011-11010

sub90910-09091

main11401-19336i5K..KM51199504

main11401-69207i1C..CM50198610-198910

main11401-69236i2C..CM51,55,6#198610-198808

sub11401-69238

sub11115-64122

main11401-69365i2C..CM51,55,6#198808-199008

sub11401-69367

sub11115-64122

main11401-69425i2C..CM5#,6#199008-199209

sub11401-69427

sub11115-64122

main11401-69426i2C..CM5#,6#199209-199310

sub11401-69428

sub11115-64122

main11401-69466i2C..CM65..TS;2C..CM5#,60,61199310-199504

sub11401-69468

sub11115-64122

main11401-69625i2C..CM65..TS;2C..CM5#,60,61199504-199509

sub11401-69626

sub11701-64071

main11401-69626i2C..CM65..TS;2C..CM5#,60,61199509-199705

sub11401-69627

sub11115-64170

main11401-69627i2C..CM5#,6#199705-199812

sub11401-69628

sub11381-64020

sub11701-27011

sub15703-27010

main11401-69628i2C..CM5#,6#199812

sub11401-69629

main11401-79066i2Y..YM55,6#198610

11401CFLANGE(FOR WATER BY-PASS)

main16353-64010i1C,2C..CM5#,6#198610-199204

sub16353-64011

main16353-64011i2C..CM5#,6#199204-199611

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09088i1C,2C..CM5#,6#198610-199212

sub90345-52003

main90910-09091i5K..KM51199504

main96431-53828i2Y..YM55,6#198610-199504

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52003i2C..CM65..TS;2C..CM5#,60,61199212-199611

main90910-09087i1C,2C..CM5#,6#198610-199212

main96432-23814i4K,5K..KM5#198610-199504

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02019i4K,5K..KM5#198711

main90910-02019i4K,5K..KM5#198610-198711

*10-1.25PX55-18

main90910-02032i2Y..YM55,6#198610

main90910-02061i1C,2C..CM5#,6#198610-199812

main90910-02135i2C..CM5#,6#199812

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-47025i4K,5K..KM5#198610

main96411-01800i2Y..YM55,6#198610

main96411-43500i2C..CM65..TS;2C..CM5#,60,61198610-199703

main96411-63500i2C..CM5#,6#199703

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i2C..CM65..TS;2C..CM5#,60,61198610-199703

main96411-43500i2Y..YM55,60198610-198711

OD=35

main96411-43500i2Y..YM55,6#198711

main96411-44500i4K,5K..KM5#198610-199610

main96411-63000i2C..CM5#,6#199703

main96411-64500i5K..KM51199610

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-41800i2C..CM65..TS;2C..CM5#,60,61198610-199611

main96411-43500i4K,5K..KM5#198610-199610

main96411-45000i2Y..YM55,6#198610

main96411-63500i5K..KM51199610

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-41800i1C,2C..CM5#,6#198610-199611

main96411-45000i2Y..YM55,60198610-198711

OD=50

main96411-45000i2Y..YM55,6#198711

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-41800i2C..CM65..TS;2C..CM5#,60,61198610-199611

main96412-01800i4K,5K..KM5#198711

main96412-01800i4K,5K..KM5#198610-198711

OD=18

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main90249-17002i1C..CM50198610-198910

11432GPLUG, W/HEAD STRAIGHT SCREW, NO.5

main90341-10002i2C..CM65..TS;2C..CM5#,60,61199310-199611

11432LPLUG, W/HEAD STRAIGHT SCREW, NO.4(FOR CYLINDER BLOCK)

main90341-14032i2C..CM65..TS;2C..CM5#,60,61199310-199611

11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)

main90341-18006i1C..CM50198610-198910

11432SPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)

main90341-20002i1C..CM50198610-198910

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-22001i1C..CM50198610-198910

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-18001i1C..CM50198610-198910

11432VGASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK)

main90430-20004i1C..CM50198610-198910

11432WGASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)

main90430-22003i1C..CM50198610-198910

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i4K,5K..KM5#198610

main90253-14001i1C,2C..CM5#,6#198610-199208

main90253-14002i2C..CM5#,6#199208-199708

main90253-14004i2C..CM5#,6#199708

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068i1C,2C..CM5#,6#198610-199611

main90250-08120i4K,5K..KM5#198610

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i2C..CM65..TS;2C..CM5#,60,61198610-199611

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54010i1C,2C..CM5#,6#198610-199009

sub11448-54020

main11448-54020i2C..CM5#,6#199009-199209

main11448-64020i2C..CM65..TS;2C..CM5#,60,61199209-199611

11452GUIDE, OIL LEVEL GAGE

main11452-13030i4K,5K..KM5#198610

main11452-64020i1C,2C..CM5#,6#198610-199408

main11452-64021i2C..CM5#,6#199408-199611

main11452-71020i2Y..YM55,6#198610

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-71011i2Y..YM55,6#198610

main90929-01026i1C,2C..CM5#,6#198610-199611

12101PAN SUB-ASSY, OIL

main12101-13030i4K..KM50;5K..KM51..3HC198610-198910

main12101-13050i5K..KM51..MTM198610-198910

main12101-13050i4K..KM50198610-198711

main12101-13050i4K..KM50198711-198808

main12101-13070i4K,5K..KM5#198910

main12101-64060i1C,2C..CM5#,6#198610-198808

main12101-64070i2C..CM5#,6#198910-199309

sub12101-64071

main12101-64071i2C..CM65..TS;2C..CM5#,60,61199309-199408

sub12101-64072

main12101-64072i2C..CM65..TS;2C..CM5#,60,61199408-199611

main12101-64080i1C,2C..CM5#,6#198808-198910

sub12101-64081

main12101-71011i2Y..YM55,60198610-198910

sub12101-72010

main12101-71031i2Y..YM55,6#198910

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i4K,5K..KM5#198610-199208

main90341-12026i2C..CM65..TS;2C..CM5#,60,61199208-199611

sub90341-12012

main90341-18089i1C,2C..CM5#,6#198610-198808

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i2Y..YM55,60198610-198803

sub90430-12019

main90430-12019i4K,5K..KM5#198803-199008

sub90430-12028

main90430-12027i2Y..YM55,6#199010-199312

sub90430-12031

main90430-12028i2C..CM5#,6#198910-199108

sub90430-12031

main90430-12031i2C..CM5#,6#199008-199611

main90430-18013i1C,2C..CM5#,6#198610-198808

sub90430-18023

12112PAN, OIL NO.2

main12112-64030i1C,2C..CM5#,6#198610-198808

main12112-64050i1C,2C..CM5#,6#198808-199306

sub12112-64051

main12112-64051i2C..CM5#,6#199306-199611

1301

1501

1503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-13040i4K,5K..KM5#198610

main15301-64020i1C,2C..CM5#,6#198610-198912

sub15301-64050

main15301-64050i2C..CM5#,6#198912-199201

main15301-64051i2C..CM65..TS;2C..CM5#,60,61199201-199408

main15301-64052i2C..CM65..TS;2C..CM5#,60,61199408-199611

main15301-71020i2Y..YM55,6#198610-199310

main15301-72020i2Y..YM55,6#199310

15605VALVE SUB-ASSY, OIL CHECK

main15605-64011i2C..CM51,55,6#198610-198808

main15605-64020i2C..CM51,52,55,6#198808-199808

main15703-27010i2C..CM5#,6#199808

15708NOZZLE SUB-ASSY, OIL, NO.1

main15790-64011i2C..CM51,55,6#198610-198808

main15790-64020i2C..CM51,55,6#198808-199105

sub15790-64021

main15790-64021i2C..CM5#,6#199105-199611

sub15790-64030

sub90110-06034

1601

9011906758

main90119-06758

9011906888

main90119-06888

9017906036

main90179-06036

9020114099

main90201-14099

9043010027

main90430-10027

9043014235

main90430-14235

9043027001

main90430-27001

9164580620

main91645-80620

44 parts on this diagram · 3 diagrams in section
