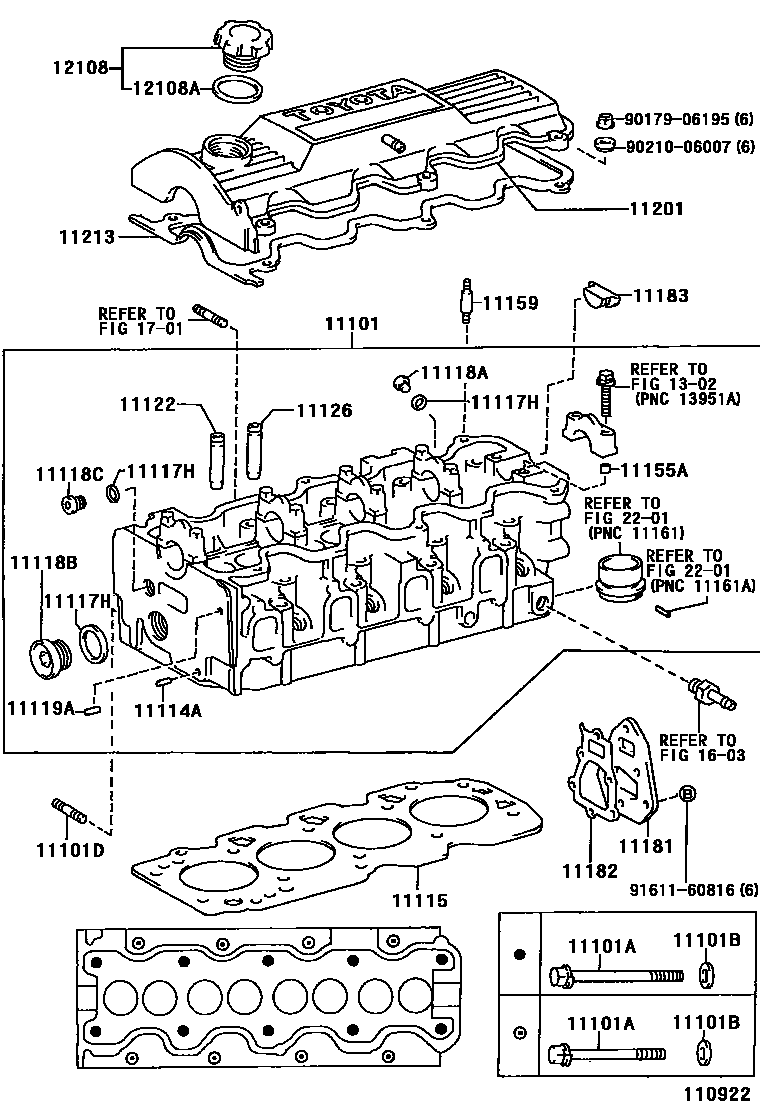

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11101HEAD SUB-ASSY, CYLINDER

main11101-13011i4K..KM50198610-199008

main11101-13062i5K..KM51198610

main11101-64060i1C..CM50198610-198901

sub11101-64061

main11101-64061i1C..CM50198901-198910

sub11101-64062

sub90201-22010

main11101-64080i2C..CM51,55,6#198610-198701

sub11101-64110

main11101-64100i2C..CM51,55,6#198701-198712

sub11101-64110

main11101-64120i2C..CM51,55,6#198712-198901

sub11101-64121

main11101-64121i2C..CM51,52,55,6#198901-199310

sub11101-64122

sub11115-64122

main11101-64180i2C..CM65..TS;2C..CM5#,60,61199310-199504

sub11101-64181

sub11115-64122

main11101-64181i2C..CM65..TS;2C..CM5#,60,61199504-199705

sub11101-64182

sub11115-64170

sub90201-22010

main11101-64182i2C..CM5#,6#199705-199708

sub11101-64183

sub11176-64020

main11101-64183i2C..CM5#,6#199708-199812

sub11101-64184

main11101-64184i2C..CM5#,6#199812

main11101-71010i2Y..YM55,6#198610-199212

main11101-71011i2Y..YM55,6#199212

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-11018i1C,2C..CM5#,6#198610-198912

sub90910-02097

main90105-11019i1C,2C..CM5#,6#198610-198912

sub90910-02099

main90105-12056i2Y..YM55,6#198610

main90910-02069i4K,5K..KM5#198610-198805

main90910-02074i4K,5K..KM5#198805

HEAD FR RIGHT

main90910-02097i2C..CM5#,6#198912-199611

main90910-02099i2C..CM5#,6#198912-199611

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-10005i4K,5K..KM5#198610

main90201-12222i2C..CM5#,6#198610-199611

main90201-13021i2Y..YM55,6#198610

11101DBOLT, STUD(FOR WATER OUTLET)

main92122-60820i2C..CM65..TS;2C..CM5#,60,61198610-199611

11114APIN, STRAIGHT

main90250-06068i1C,2C..CM5#,6#198610-199611

11115GASKET, CYLINDER HEAD

main11115-13031i4K..KM50198610-198912

sub11115-13050

main11115-13040i5K..KM51198610-199008

sub11115-13041

main11115-13041i5K..KM51199008

main11115-13050i4K..KM50198912-199008

main11115-64070i1C..CM50198610-198905

sub11115-64110

main11115-64100i2C..CM51,55,6#198610-198912

sub11115-64121

main11115-64110i1C..CM50198905-198910

main11115-64120i2C..CM5#,6#198912-199101

sub11115-64121

main11115-64121i2C..CM65..TS;2C..CM5#,60,61199101-199504

sub11115-64122

main11115-64122i2C..CM5#,6#199504-199704

sub11115-64170

main11115-64170-A0i2C..CM5#,6#199704-199812

MARK A

main11115-64170-B0i2C..CM5#,6#199704-199812

MARK B

main11115-64170-C0i2C..CM5#,6#199704-199812

MARK C

main11115-64190-01i2C..CM5#,6#199812-199906

MARK 1

main11115-64190-03i2C..CM5#,6#199812-199906

MARK 3

main11115-64190-05i2C..CM5#,6#199812-199906

MARK 5

main11115-71011i2Y..YM55,60198610-199008

sub11115-73040

main11115-73040i2Y..YM55,6#199008-199308

sub11115-73041

main11115-73041i2Y..YM55,6#199308-199511

main11115-73050i2Y..YM55,6#199511

11117HGASKET(FOR WATER HOLE)

main90430-10204i2C..CM65..TS;2C..CM5#,60,61198610-199705

main90430-10204i1C,2C..CM5#,6#198610-198711

PNC 11118A

main90430-12010i2C..CM65..TS;2C..CM5#,60,61198610-199705

main90430-12010i1C,2C..CM5#,6#198610-198711

PNC 11118C

main90430-20004i2Y..YM55,6#198610-199303

main90430-33133i1C,2C..CM5#,6#198610-199705

main90430-33133i1C,2C..CM5#,6#198610-198711

PNC 11118B

11118APLUG, STRAIGHT, NO.1

main90341-10005i2C..CM5#,6#198610-199705

11118BPLUG, STRAIGHT, NO.2

main90341-32070i1C,2C..CM5#,6#198610-199705

11118CPLUG, STRAIGHT, NO.3

main90341-12013i2C..CM65..TS;2C..CM5#,60,61198610-199705

11119APIN, STRAIGHT, NO.1

main90250-06013i2C..CM5#,6#199310-199611

main90250-06068i2C..CM5#,6#198610-199611

main90250-08120i4K,5K..KM5#198610

11122BUSH, INTAKE VALVE GUIDE

main11122-24020i4K,5K..KM5#198610-198711

main11122-64010i2C..CM5#,6#198610-199611

main11122-71020i2Y..YM55,6#198610

main11123-24020i4K,5K..KM5#198610

main11123-64010i2C..CM5#,6#198610-199611

main11123-71020i2Y..YM55,6#198610

11126BUSH, EXHAUST VALVE GUIDE

main11122-24020i4K,5K..KM5#198610

main11123-24020i4K,5K..KM5#198610

main11126-64010i2C..CM5#,6#198610-199708

sub11126-64030

main11126-64030i2C..CM5#,6#199708

main11126-71020i2Y..YM55,6#198610

main11127-64010i1C,2C..CM5#,6#198610-199708

sub11127-64030

main11127-64030i2C..CM5#,6#199708

main11127-71020i2Y..YM55,6#..MTM198610

11155APIN, RING W/HEAD

main90253-11021i1C,2C..CM5#,6#198610-199611

11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

main90116-06023i1C,2C..CM5#,6#198610-199310

11181PLATE, CYLINDER HEAD, REAR

main11181-13020i4K,5K..KM5#198705

main11181-24020i4K,5K..KM5#198610-198705

sub11181-13020

main11181-64010i1C,2C..CM5#,6#198610-199812

main11181-64011i2C..CM5#,6#199812

main11181-71010i2Y..YM55,6#198610-198711

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-13020i4K,5K..KM5#198912

main11182-24010i4K,5K..KM5#198610-198912

sub11182-13020

main11182-64010i1C,2C..CM5#,6#198610-198903

sub11182-64020

main11182-64020i1C,2C..CM5#,6#198903-199505

sub11182-64021

main11182-64021i2C..CM5#,6#199505-199611

main11182-71010i2Y..YM55,60198610-198912

sub11182-71011

main11182-71011i2Y..YM55,6#198912

11183PLUG, SEMICIRCULAR

main11183-64010i1C,2C..CM5#,6#198610-199611

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-13021i4K,5K..KM5#198711

main11201-19026i4K,5K..KM5#198610-198711

sub11201-13021

main11201-64060i1C,2C..CM5#,6#198610-199310

main11201-64120i2C..CM65..TS;2C..CM5#,60,61199310-199602

sub11201-64121

main11201-64121i2C..CM5#,6#199602-199611

main11201-71011i2Y..YM55,6#199208-199512

sub11201-71012

main11201-71012i2Y..YM55,6#199512

main11201-79035i2Y..YM55,6#198610-199208

sub11201-71011

sub11213-71020

sub90210-09001

11213GASKET, CYLINDER HEAD COVER

main11213-22010i4K,5K..KM5#198610

main11213-64020i1C,2C..CM5#,6#198610-199101

sub11213-64040

main11213-64040i2C..CM5#,6#199101-199310

main11213-64060i2C..CM65..TS;2C..CM5#,60,61199310-199605

sub11213-64061

main11213-64061i2C..CM65..TS;2C..CM5#,60,61199605-199611

main11213-71020i2Y..YM55,6#198610

12108CAP SUB-ASSY, OIL FILLER

main12180-13030i2C..CM65..TS;2C..CM5#,60,61198610-199312

sub12180-55010

main12180-55010i2C..CM5#,6#199312-199611

main12180-61010i2Y..YM55,60198705-199003

sub12180-70020

main12180-62010i4K,5K..KM5#199004-199107

sub12180-62011

main12180-62011i5K..KM51199107-199312

sub12180-65011

main12180-65011i5K..KM51199312

main12180-71011i2Y..YM55,60198610-198705

sub12180-61010

main12180-73010i2Y..YM55,6#199011-199103

sub12180-73011

main12180-73011i2Y..YM55,6#199103

main12180-75010i2Y..YM55,6#199003-199011

sub12180-73011

12108AGASKET(FOR OIL FILLER CAP)

main12195-70010i2Y..YM55,6#199003-199011

main12195-71020i2Y..YM55,60198610-199003

main12195-73010i2Y..YM55,6#199011

main90430-37140i2C..CM65..TS;2C..CM5#,60,61198610-199611

1302

1603

1701

2201

9017906195

main90179-06195

9021006007

main90210-06007

9161160816

main91611-60816

29 parts on this diagram · 6 diagrams in section
