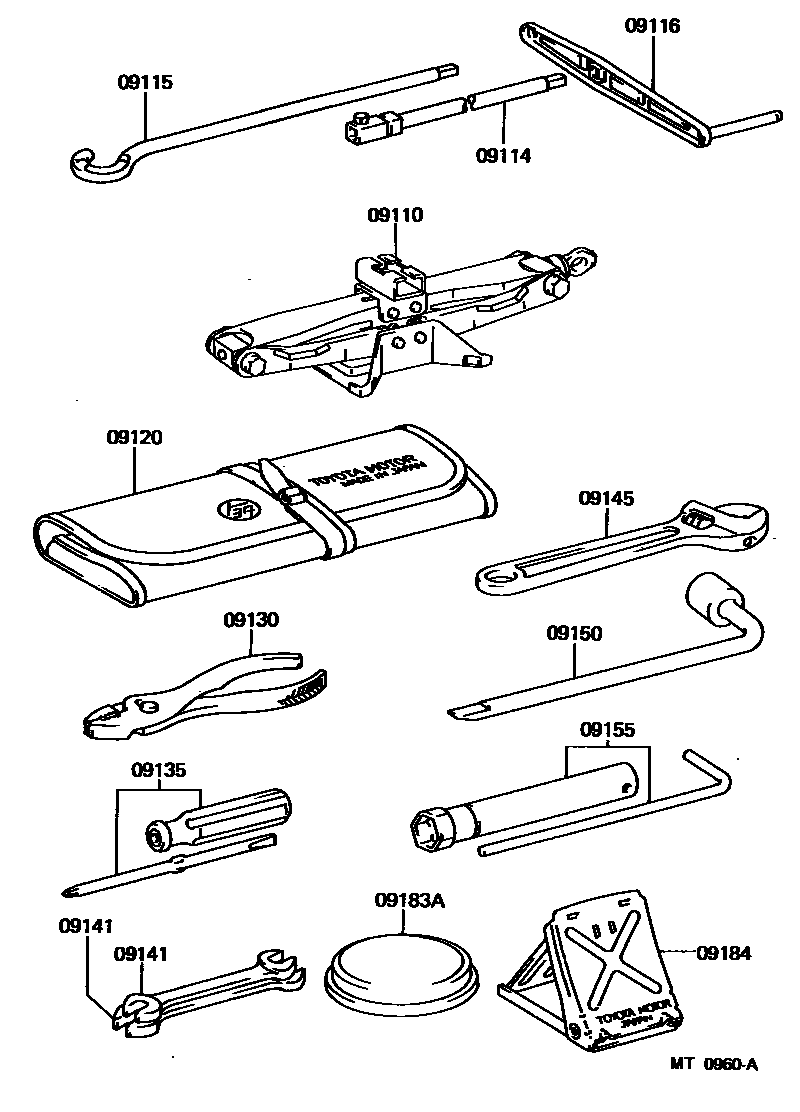

STANDARD TOOL

09110JACK ASSY

main09110-27060iCM65..TS;CM5#,60,61,KM51,YM55,6#199605-199611

main09110-27061iCM5#,6#,KM51,YM55,6#199611

main09111-95700iCM5#,6#,KM5#,YM55,6#198610-199310

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010×2iCM65..TS;CM52,60,61,YM6#199310-199611

main09114-60050×2iCM50,51,55,KM5#,YM55; CM52,6#,YM6#198711-199209

09115ROD SUB-ASSY, JACK HANDLE

main09115-60030iCM65..TS;CM5#,60,61,KM51,YM55,6#199310-199611

09116LEVER, JACK HANDLE

main09116-35040iCM5#,6#,KM5#,YM55,60198610-198807

main09116-35041iCM5#,6#,KM5#,YM55,6#198807-199310

09120BAG, TOOL

main09120-12011iCM5#,6#,KM51,YM55,6#199611

main09120-26021iCM50,51,55,KM5#,YM55198610-199310

main09120-28010iCM52,6#,YM6#198610-199310

09130PLIERS

main99913-11500iCM5#,6#,KM5#,YM55,6#198610-199310

09135DRIVER, SCREW

main99915-10700iCM5#,6#,KM51,YM55,6#199610

09141SPANNER

main99914-10810iCM5#,6#,KM5#,YM55,60198610-198711

main99914-11214iCM5#,6#,KM5#,YM55,60198610-198711

09145WRENCH, MONKEY

main99911-11200iCM5#,6#,KM5#,YM55,60198610-198910

09150WRENCH, HUB NUT BOX

main09150-35020iCM5#,6#,KM5#,YM55,6#198610-199307

main09150-40010iCM5#,6#,KM51,YM55,6#199307-199310

09155WRENCH, SPARK PLUG

main09155-26010iYM55,6#198610

main09155-44010iKM5#198610

09183AREPLACER, WHEEL CAP

main09183-28010iCM52,6#,YM6#198610

09184STOPPER, WHEEL

main09184-00010×2iCM5#,6#,KM5#,YM55,60198610-198711

13 parts on this diagram · 1 diagram in section
