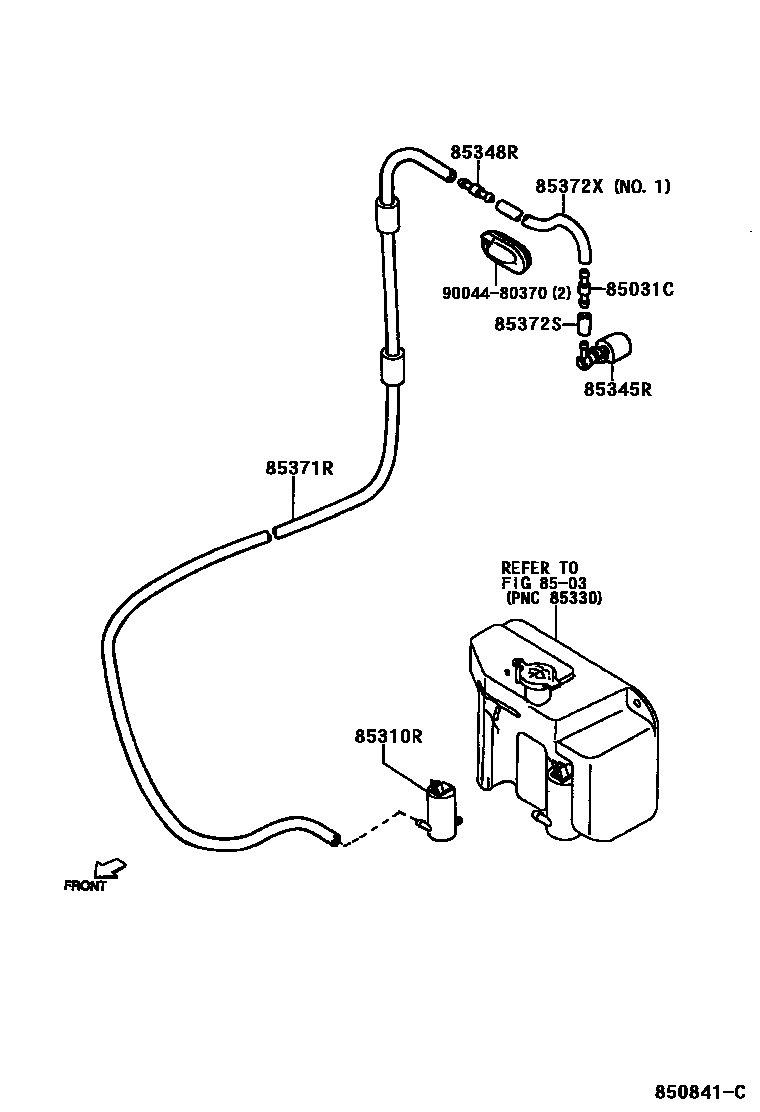

REAR WASHER

0001 1 0002 1 0003 1 0004 1

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031CVALVE SUB-ASSY, WASHER

main85031-87401iS221,231200009

85310RMOTOR ASSY, REAR WASHER

main85310-97501iS221,231200009

85345RNOZZLE, REAR WASHER

main85391-97501iS221,231..LOR200206

main85391-97502iS221,231..HIR200009

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-87201iS221,231200009

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main85343-97501iS221,231200009

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main85374-87401iS221,231..HIR200211

main85376-87202iS221,231..LOR200211

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main85375-87502iS221,231..HIR200211-200302

9004480370

main90044-80370

9 parts on this diagram · 4 diagrams in section
