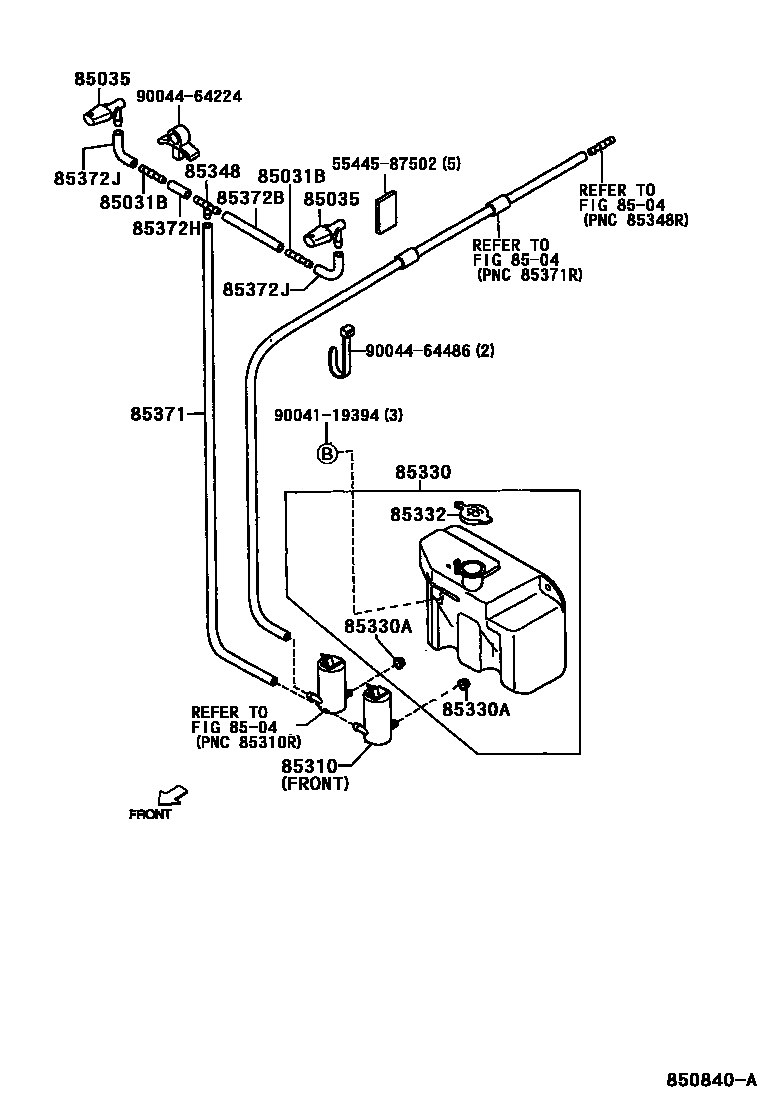

WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85031-87702×2iS221,231200009

85035NOZZLE SUB-ASSY, WASHER

main85381-97504×2iS221,231200009

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-97501iS221,231200009

85330JAR ASSY, WINDSHIELD WASHER

main85330-97501iS221,231200009

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2iS221,231200009

85332CAP, WINDSHIELD WASHER JAR

main85332-87203iS221,231200009

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-87501iS221,231200009

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85376-87202iS221,231200009

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-06286iS221,231200009

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33321iS221,231200009

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main85375-87502×2iS221,231200009

5544587502GARNISH, INSTRUMENT PANEL OUTSIDE, RH

main55445-87502

9004119394

main90041-19394

9004464224

main90044-64224

9004464486

main90044-64486

16 parts on this diagram · 1 diagram in section
