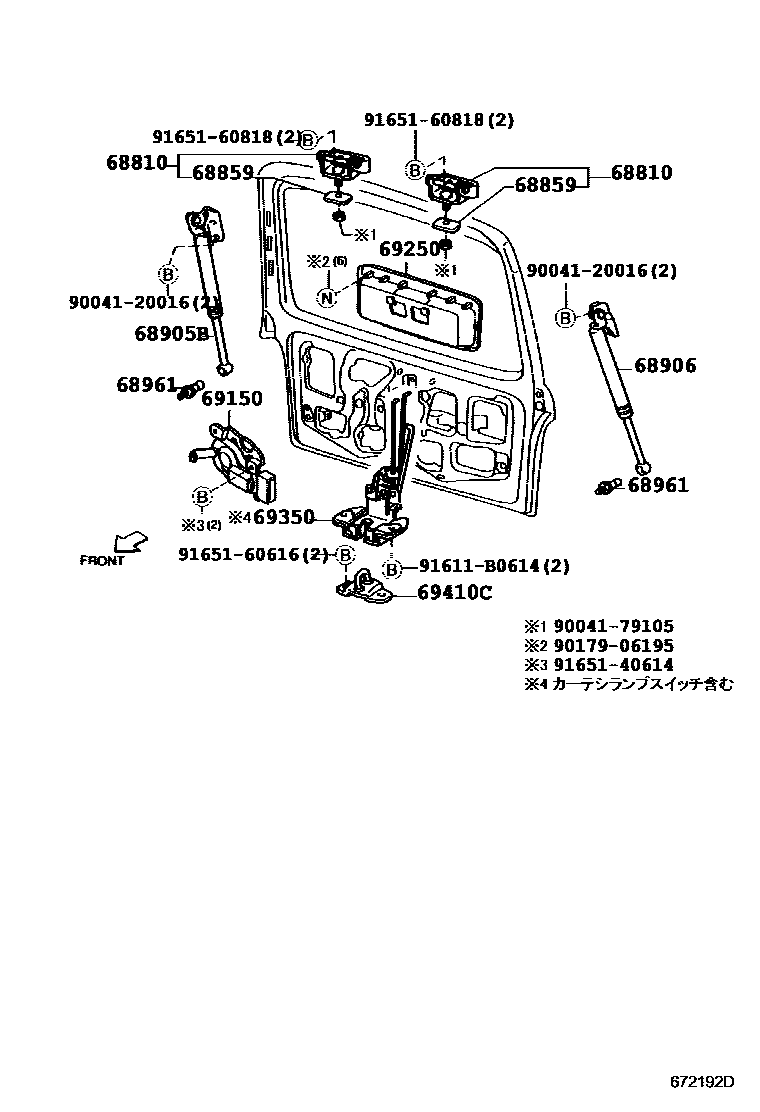

BACK DOOR LOCK & HINGE

68810HINGE ASSY, BACK DOOR, UPPER

main68801-87506×2iS221,231200009

68859PACKING, BACK DOOR HINGE

main68859-87201×2iS221,231200009

68905BSTAY SUB-ASSY, BACK DOOR, RH

main68950-97503iS221,231..X..LOR200206

main68950-97506iS221,231200009-200106

main68950-97507iS221,231..HIR200106

main68950-97509iS221,231..LOR200206

68906STAY SUB-ASSY, BACK DOOR, LH

main68960-97503iS221,231..X..LOR200206

main68960-97505iS221,231..X..HIR200106

main68960-97506iS221,231..HIR200106

main68960-97507iS221,231..LOR200206

68961BOLT, BACK DOOR STAY

main68459-87502×2iS221,231200009

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-97501iS221,231200009

69250HANDLE ASSY, TAIL GATE LOCK

main69250-97504-01iS221,231..X200106

main69250-97504-09iS221,231..X200106

main69250-97504-13iS221,231..X200106

main69250-97504-14iS221,231..X200106-200206

main69250-97504-23iS221,231..X200206

main69250-97504-28iS221,231..X200106

main69250-97504-38iS221,231..X200106

main69250-97506-01iS221,231200009

BLACK M..,6A5

main69250-97506-02iS221,231200009-200106

RED MC,3K3

main69250-97506-03iS221,231200009

SILVER M.,1C0

main69250-97506-04iS221,231200009-200206

DARK BLUE MC M.,B42

main69250-97506-08iS221,231200009

WHITE,056

main69250-97506-09iS221,231200106

SHAMPGNE ME.,583

main69250-97506-13iS221,231200206

GREENISH SIL. M.,S29

main69250-97506-18iS221,231200009

WHITE PM.,W16

69350LOCK ASSY, BACK DOOR

main69350-97508iS221,231200009

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69430-87507iS221,231200009

9004120016

main90041-20016

9004179105

main90041-79105

9017906195

main90179-06195

91611B0614

main91611-B0614

9165140614

main91651-40614

9165160616

main91651-60616

9165160818

main91651-60818

16 parts on this diagram · 1 diagram in section
