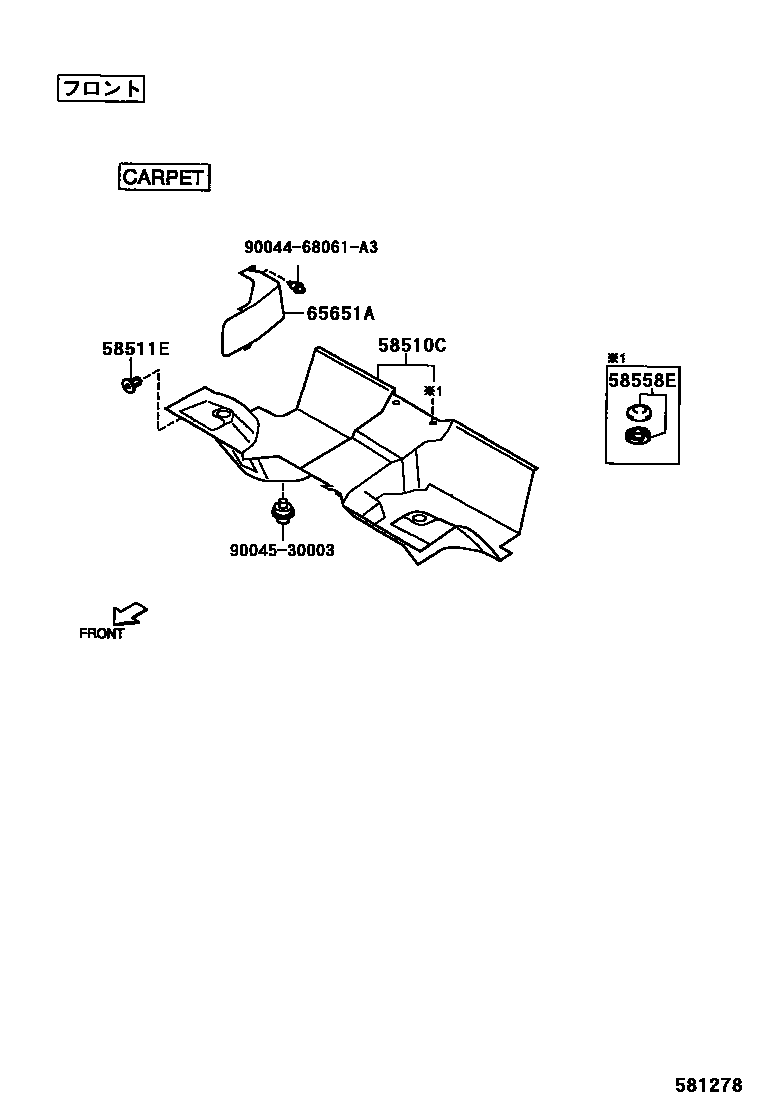

FLOOR MAT & SILENCER PAD

0001 1���� �-���� 0002 1���- & �� �-���� 0003 1���- & �� �-���� 0004 1����� �-�

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-97503-03iS221,231..4AT..G200009-200106

GRAY

main58510-97510-03iS221,231..4AT..X200009-200106

GRAY

main58510-97517-03iS221,231..5MT..G200009-200106

GRAY

main58510-97518-03iS221,231..5MT..X200009-200106

GRAY

main58510-97526-03iS221,231..4AT200106-200206

GRAY

main58510-97527-03iS221,231..5MT200106-200206

GRAY

main58510-97533-03iS221,231..4ATS200206

GRAY

main58510-97534-03iS221,231..5MT200206

GRAY

58511ECLIP(FOR FRONT FLOOR MAT)

main90044-68234-03×4iS221,231200009

GRAY

58558EFASTENER, PILE

main58558-87501-43×10iS221,231200009

GRAY

65651ACOVER SUB-ASSY, WHEEL HOUSE

main65651-97501-03iS221,231200009

GRAY

9004468061A3

main90044-68061A3

9004530003

main90045-30003

6 parts on this diagram · 4 diagrams in section
