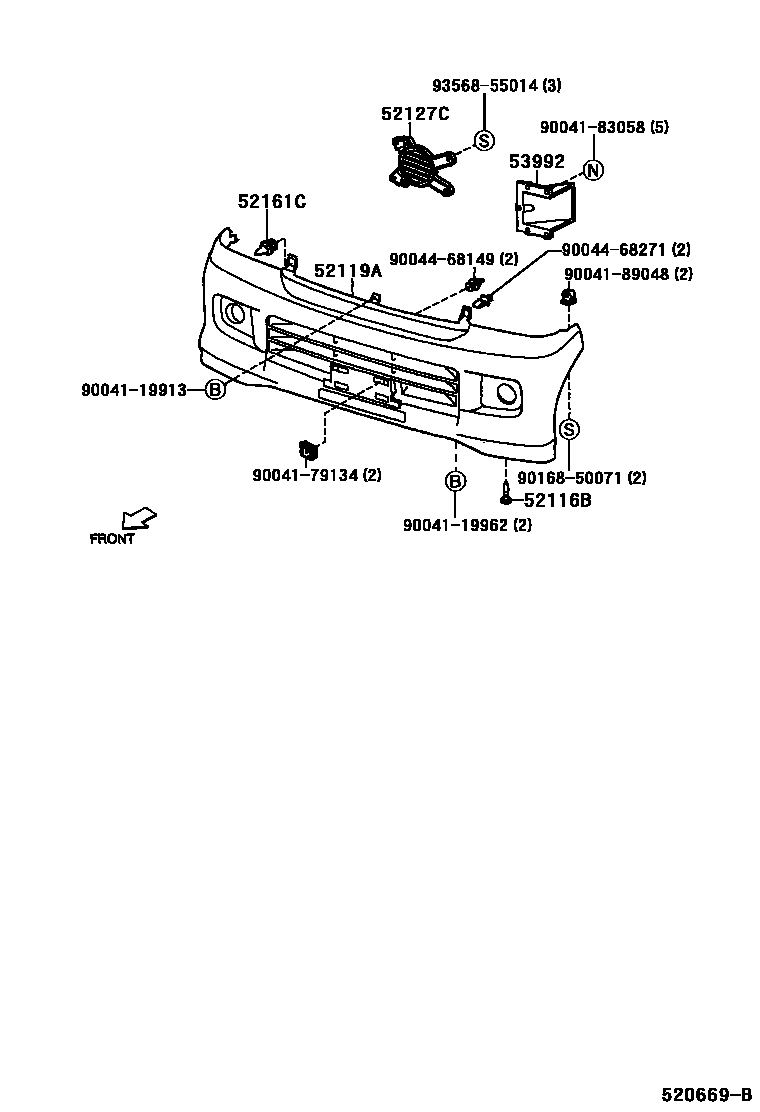

FRONT BUMPER & BUMPER STAY

52116BRETAINER, FRONT BUMPER

main90044-67204-01×2iS221,231200009

BLACK

52119ACOVER, FRONT BUMPER

main52119-97516-01iS221,231200009

BLACK M.,6A5

main52119-97516-02iS221,231200009-200106

RED MC,3K3

main52119-97516-03iS221,231200009

SILVER M.,1C0

main52119-97516-04iS221,231200009-200206

DARK BLUE MC M.,B42

main52119-97516-08iS221,231200009

WHITE,056

main52119-97516-09iS221,231200106

SHAMPGNE ME.,583

main52119-97516-13iS221,231200206

GREENISH SILVER.M.,S29

main52119-97516-18iS221,231200009

WHITE PM.,W16

52127CCOVER, FRONT BUMPER HOLE

main52127-97501×2iS221,231..X200009

52161CPIECE, FRONT BUMPER

main90044-67419×2iS221,231200009

53992GUIDE, COOL AIR

main53992-97502iS221,231200009

9004119913

main90041-19913

9004119962

main90041-19962

9004179134

main90041-79134

9004183058

main90041-83058

9004189048

main90041-89048

9004468149

main90044-68149

9004468271

main90044-68271

9016850071

main90168-50071

9356855014

main93568-55014

14 parts on this diagram · 1 diagram in section
