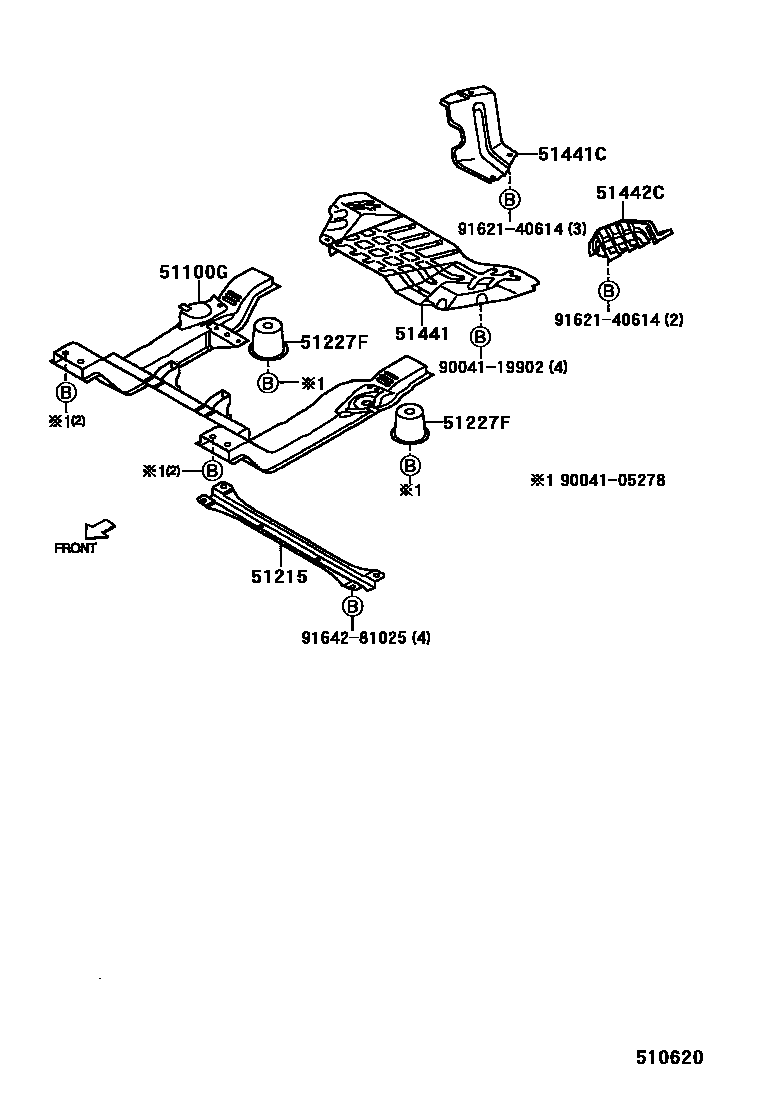

Toyota SPARKY — SUSPENSION CROSSMEMBER & UNDER COVER
51100GFRAME ASSY, FRONT
51215REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER
51227FWEIGHT, FRONT SUSPENSION MEMBER DAMPER
51441CCOVER, ENGINE UNDER, RH
51442CCOVER, ENGINE UNDER, LH
9004105278
9004119902
9162140614
9164281025
10 parts on this diagram · 1 diagram in section
SUSPENSION CROSSMEMBER & UNDER COVER for Toyota SPARKY
This section contains 10 genuine Toyota parts for the SUSPENSION CROSSMEMBER & UNDER COVER system of the Toyota SPARKY. Key components include: FRAME ASSY, FRONT, REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER, WEIGHT, FRONT SUSPENSION MEMBER DAMPER, COVER, ENGINE UNDER, NO.1, COVER, ENGINE UNDER, RH.
