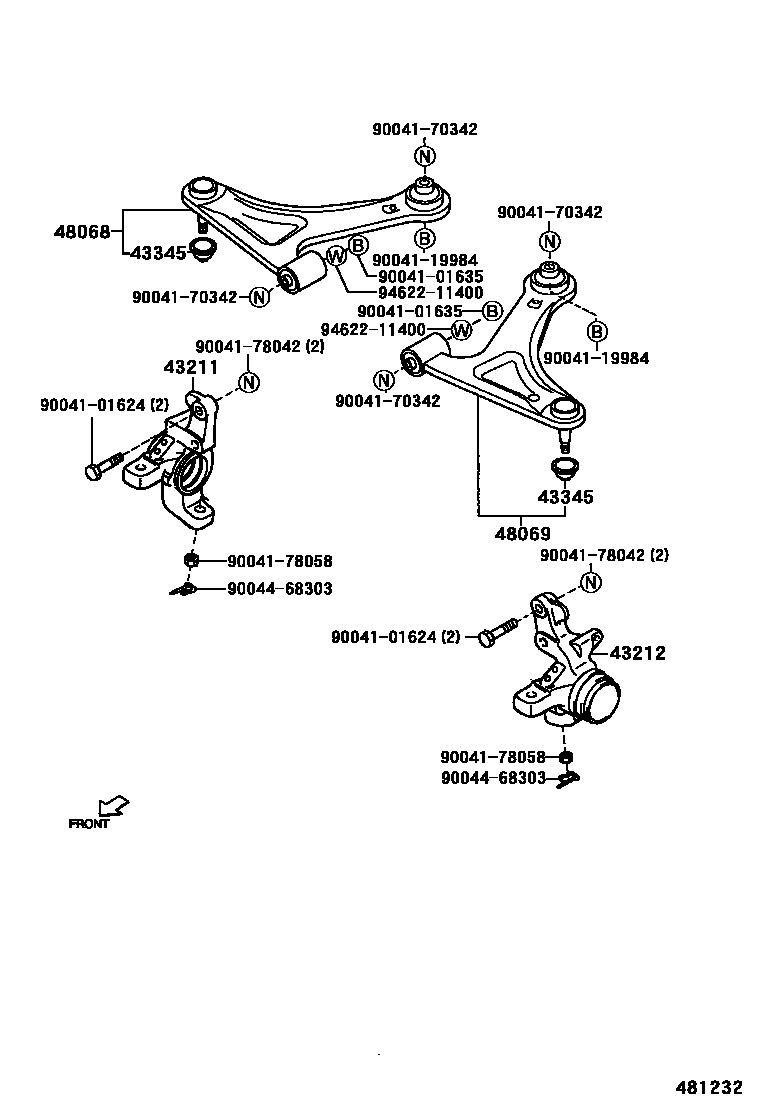

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-97506iS221,231200009-200106

main43211-97508iS221,231200106

43212KNUCKLE, STEERING, LH

main43212-97506iS221,231200009-200106

main43212-97508iS221,231200106

43345COVER, LOWER BALL JOINT DUST

main43345-97501×2iS221,231200009

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-97503iS221,231200009-200106

main48068-97507iS221,231200106

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-97503iS221,231200009-200106

main48069-97507iS221,231200106

9004101624

main90041-01624

9004101635

main90041-01635

9004119984

main90041-19984

9004170342

main90041-70342

9004178042

main90041-78042

9004178058

main90041-78058

9004468303

main90044-68303

9462211400

main94622-11400

13 parts on this diagram · 1 diagram in section
