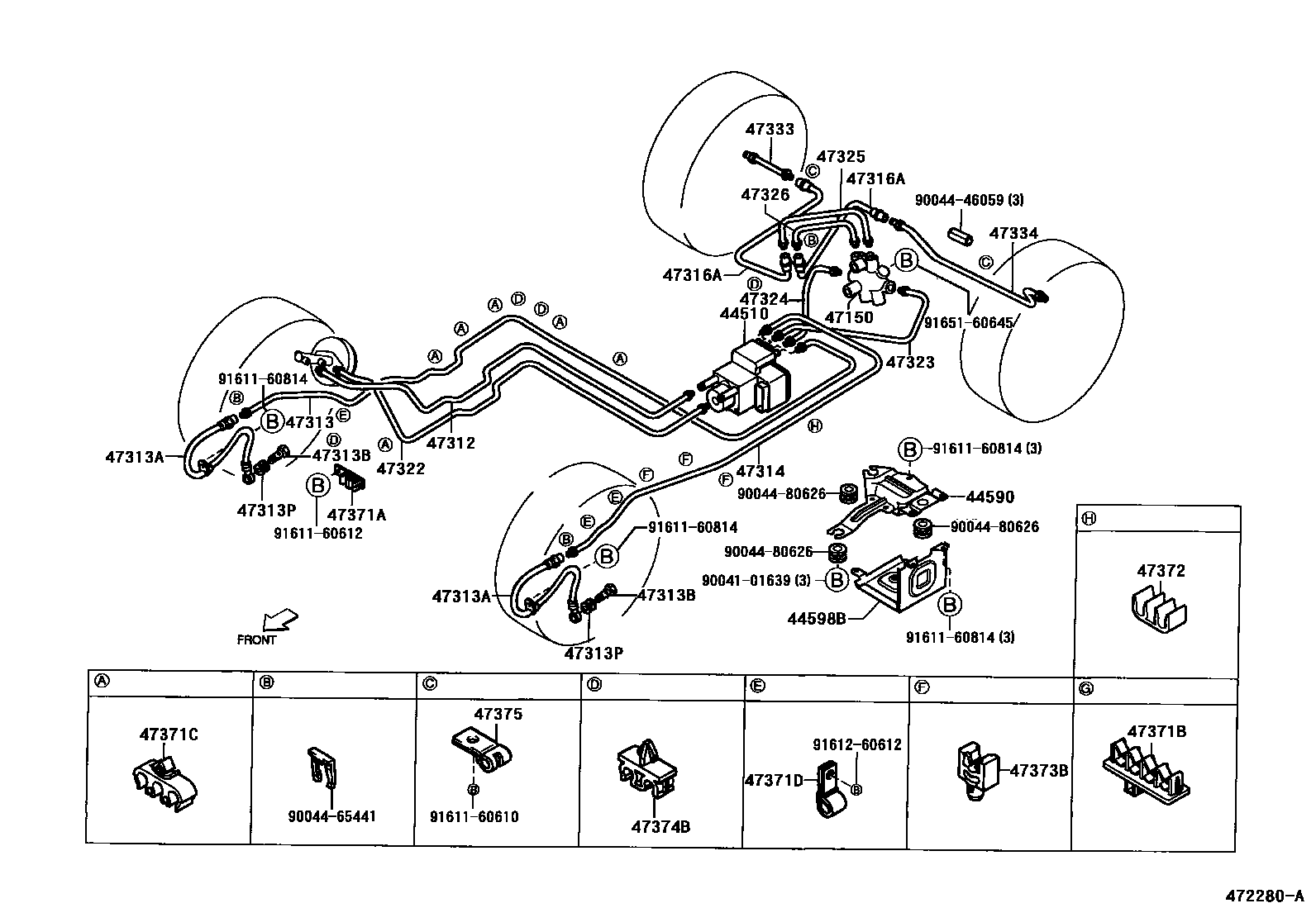

Toyota SPARKY — BRAKE TUBE & CLAMP
44590BRACKET ASSY, BRAKE ACTUATOR
44598BCOVER, BRAKE ACTUATOR
47150VALVE ASSY, PROPORTIONING
47312TUBE, FRONT BRAKE, NO.2
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47322TUBE, REAR BRAKE, NO.2
47325TUBE, REAR BRAKE, NO.5
47326TUBE, REAR BRAKE, NO.6
47333TUBE, REAR BRAKE, NO.12
47334TUBE, REAR BRAKE, NO.13
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
9004101639
9004446059
9004465441
9004480626
9161160610
9161160612
9161160814
9161260612
9165160645
35 parts on this diagram · 2 diagrams in section
BRAKE TUBE & CLAMP for Toyota SPARKY
This section contains 36 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota SPARKY. Key components include: ACTUATOR ASSY, BRAKE, BRACKET ASSY, BRAKE ACTUATOR, COVER, BRAKE ACTUATOR, VALVE ASSY, PROPORTIONING, TUBE, FRONT BRAKE, NO.2.
