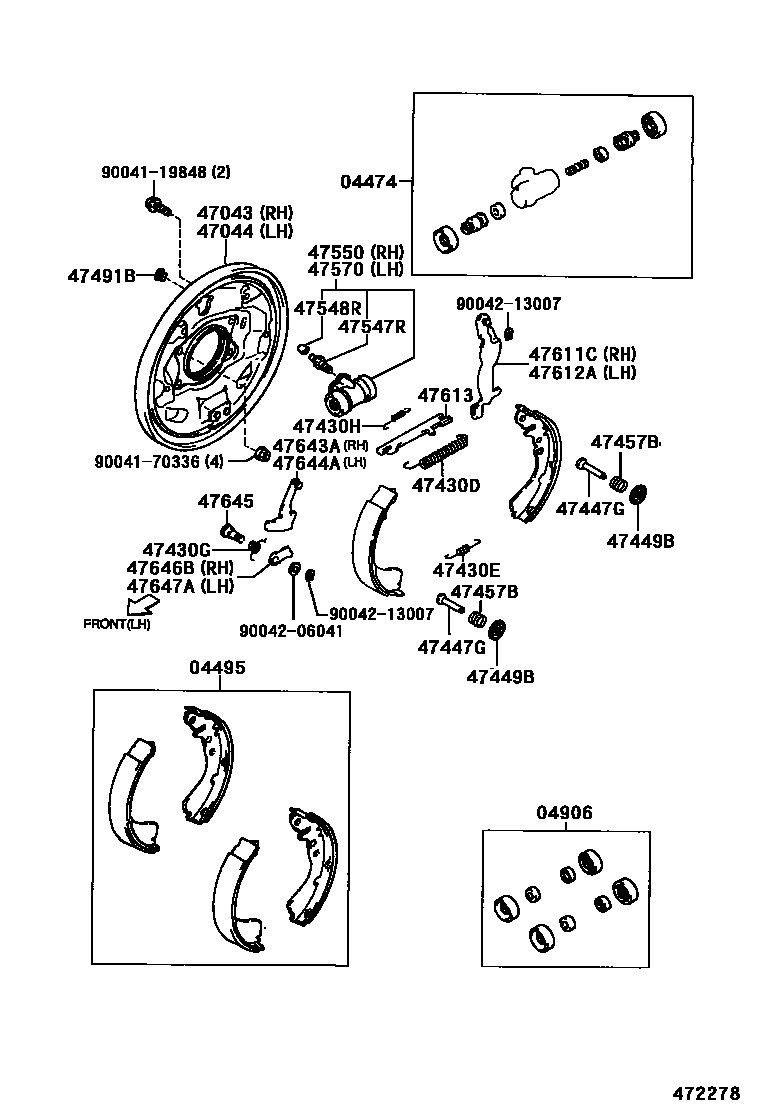

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04474CYLINDER KIT, REAR WHEEL
04495SHOE KIT, REAR BRAKE
04906CUP KIT, REAR WHEEL CYLINDER
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)
47491BPLUG, HOLE(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47611CLEVER, PARKING BRAKE SHOE, RH
47612ALEVER, PARKING BRAKE SHOE, LH
47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)
47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47645PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE)
47646BLATCH, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47647ALATCH, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
9004119848
main90041-19848
9004170336
main90041-70336
9004206041
main90042-06041
9004213007
main90042-13007
29 parts on this diagram · 1 diagram in section
