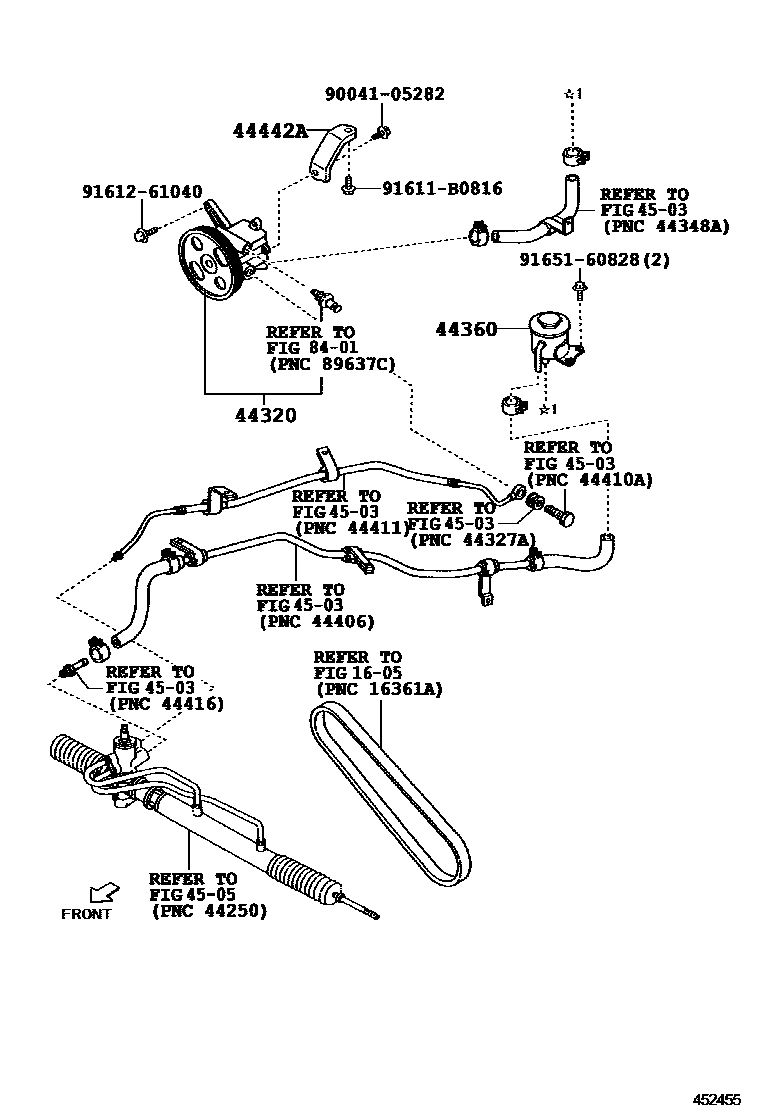

VANE PUMP & RESERVOIR (POWER STEERING)

1605V-BELT

→ Go to FIG 16-05

44320PUMP ASSY, VANE

main44310-97503iS221,231200009-200103

main44310-97505iS221,231200103-200206

main44310-97506iS221,231200206

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-97503iS221,231200009

44442ABRACKET, VANE PUMP, REAR

main44442-97502iS221,231200009

4503POWER STEERING TUBE

→ Go to FIG 45-03

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105282

main90041-05282

91611B0816

main91611-B0816

9161261040

main91612-61040

9165160828

main91651-60828

11 parts on this diagram · 1 diagram in section
