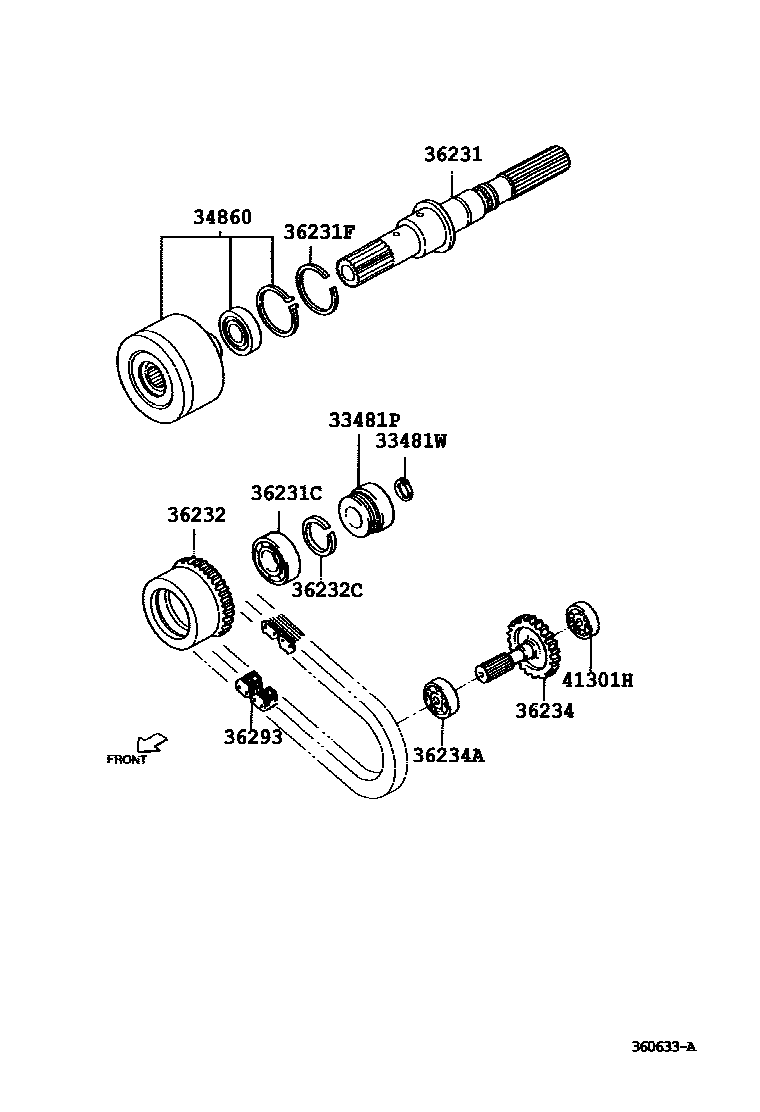

TRANSFER GEAR

33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

main33481-97502iS231200009-200206

main33481-97504iS231..4ATS200206

main33481-97505iS231..5MT200206

33481WRING, SHAFT SNAP (FOR TRANSFER SPEEDMETER DRIVE GEAR)

main96150-02500iS231200009

34860CLUTCH ASSY, TRANSFER FRONT DRIVE

main34860-97505iS231..5MT200009-200107

main34860-97506iS231..4AT200009-200107

main34860-97507iS231..5MT200107-200111

main34860-97508iS231..4AT200107-200111

main34860-97515iS231..5MT200111

main34860-97516iS231..ATM200111

36231SHAFT, TRANSFER OUTPUT, REAR

main36231-97503iS231..5MT200009

main36231-97504iS231..ATM200009

36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)

main90043-63284iS231200009

36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

main90045-20305iS231..5MT200009-200110

main90045-20306iS231..4AT200009-200106

main90045-20325iS231..ATM200107

main90045-20326iS231..5MT200110

36232GEAR, TRANSFER FRONT DRIVE

main36232-97507iS231..5MT200009

main36232-97508iS231..ATM200009

36232CRING, SHAFT SNAP (FOR TRANSFER FRONT DRIVE GEAR BEARING)

main96152-00280iS231200009

36234SHAFT, TRANSFER OUTPUT, FRONT

main36234-97501iS231200009

36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)

main97130-06005iS231200009

36293CHAIN, TRANSFER FRONT DRIVE

main36293-97501iS231200009

41301HBEARING(FOR RING GEAR MOUNTING CASE)

main97100-06203iS231200009

12 parts on this diagram · 1 diagram in section
