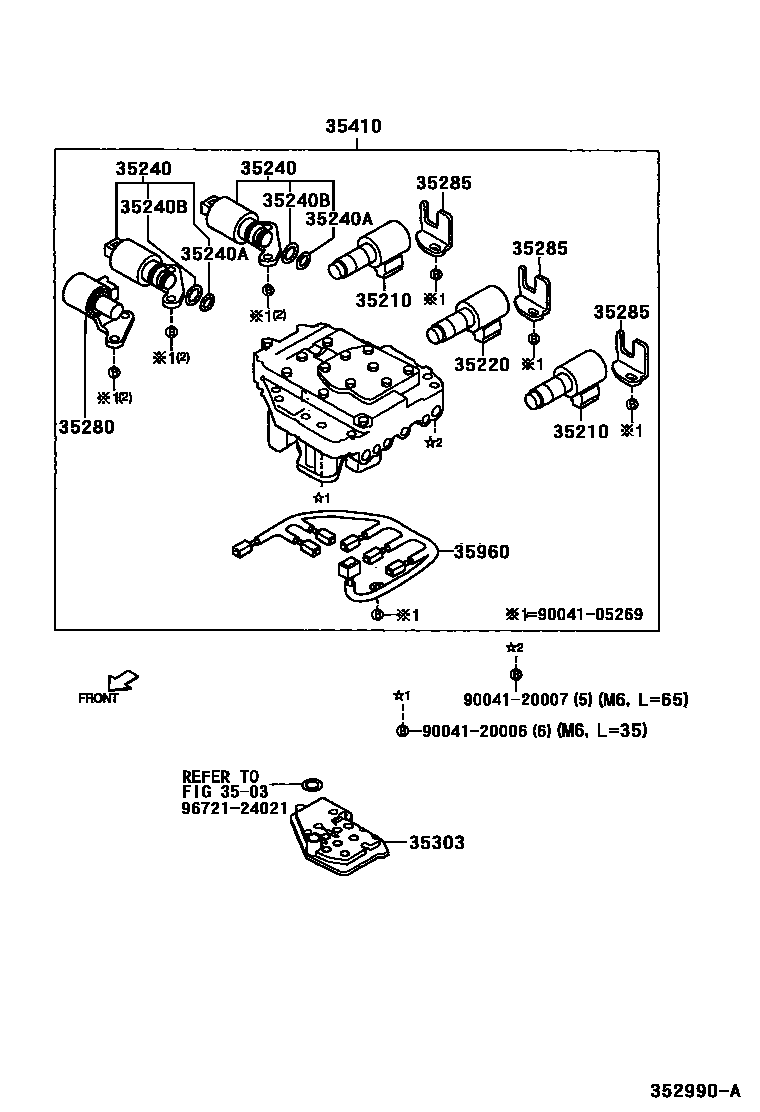

VALVE BODY & OIL STRAINER (ATM)

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-97201×2iS221,231..ATM200009

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-97201iS221,231..ATM200009

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-97201×2iS221,231..ATM200009

35240ARING, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)

main90043-01279×2iS221,231..ATM200009

35240BRING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)

main90043-01280×2iS221,231..ATM200009

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-97201iS221,231..ATM200009

35285PLATE, SOLENOID LOCK

main35285-97201×3iS221,231..ATM200009

35303STRAINER SUB-ASSY, OIL

main35303-97501iS221,231..ATM200009

35410BODY ASSY, TRANSMISSION VALVE

main35410-97206iS221,231..ATM200009

35960WIRE, SOLENOID

main35960-97202iS221,231..4AT200009-200010

main35960-97203iS221,231..ATM200011

9004105269

main90041-05269

9004120006

main90041-20006

9004120007

main90041-20007

14 parts on this diagram · 1 diagram in section
