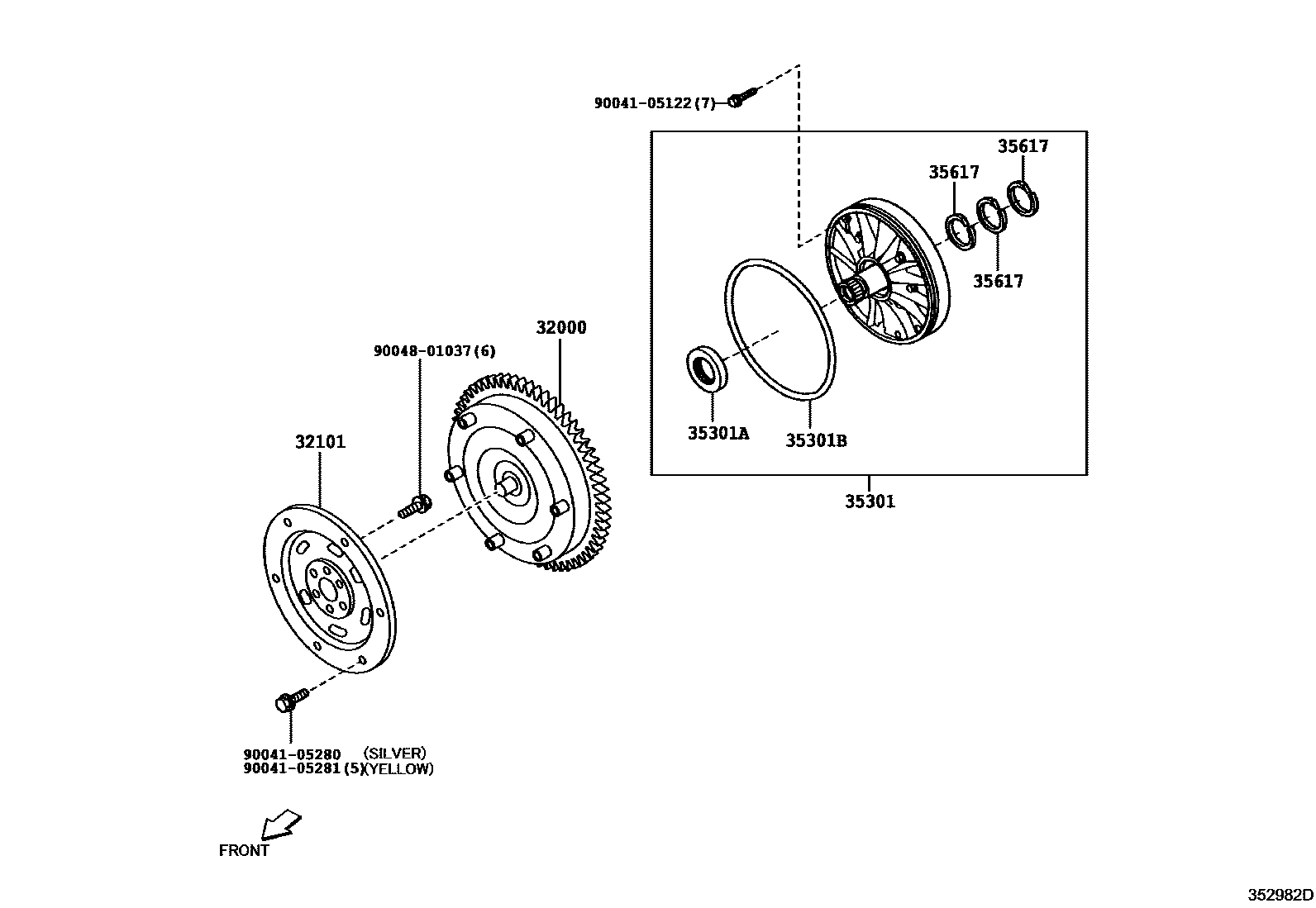

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-97501iS221,231..ATM200009

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32103-97501iS221,231..ATM200009

35301BODY SUB-ASSY, FRONT OIL PUMP

main35310-97203iS221,231..ATM200009

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90043-11336iS221,231..ATM200009

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90043-01161iS221,231..ATM200009

35617RING, CLUTCH DRUM OIL SEAL

main35653-97201×3iS221,231..ATM200009

9004105122

main90041-05122

9004105280

main90041-05280

9004105281

main90041-05281

9004801037

main90048-01037

10 parts on this diagram · 1 diagram in section
