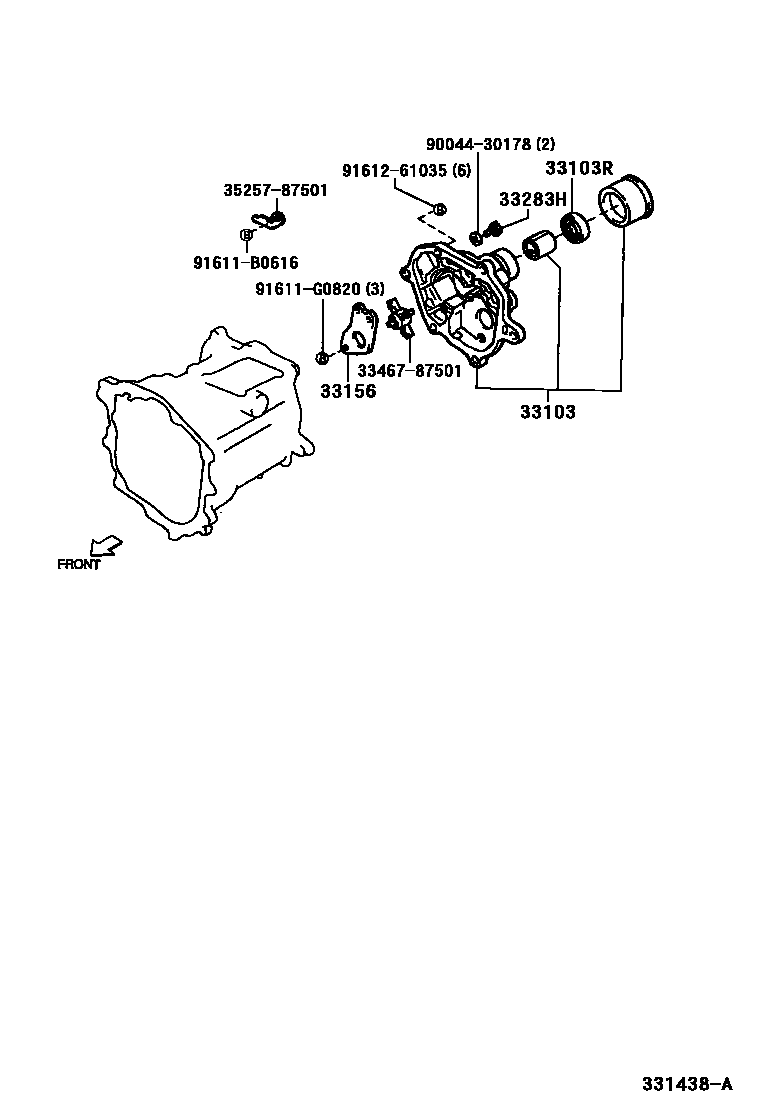

EXTENSION HOUSING (MTM)

0001 1 0002 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-97501iS221..5MT200009

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90043-11285iS221..5MT200009

33156RETAINER, OUTPUT SHAFT REAR BEARING

main33151-97501iS221..5MT200009

main33151-97502iS231..5MT200009

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-16012×2iS221..5MT200009

3346787501ROTOR, OIL PUMP DRIVE

main33467-87501

3525787501PLATE, OIL GUIDE

main35257-87501

9004430178

main90044-30178

91611B0616

main91611-B0616

91611G0820

main91611-G0820

9161261035

main91612-61035

10 parts on this diagram · 2 diagrams in section
