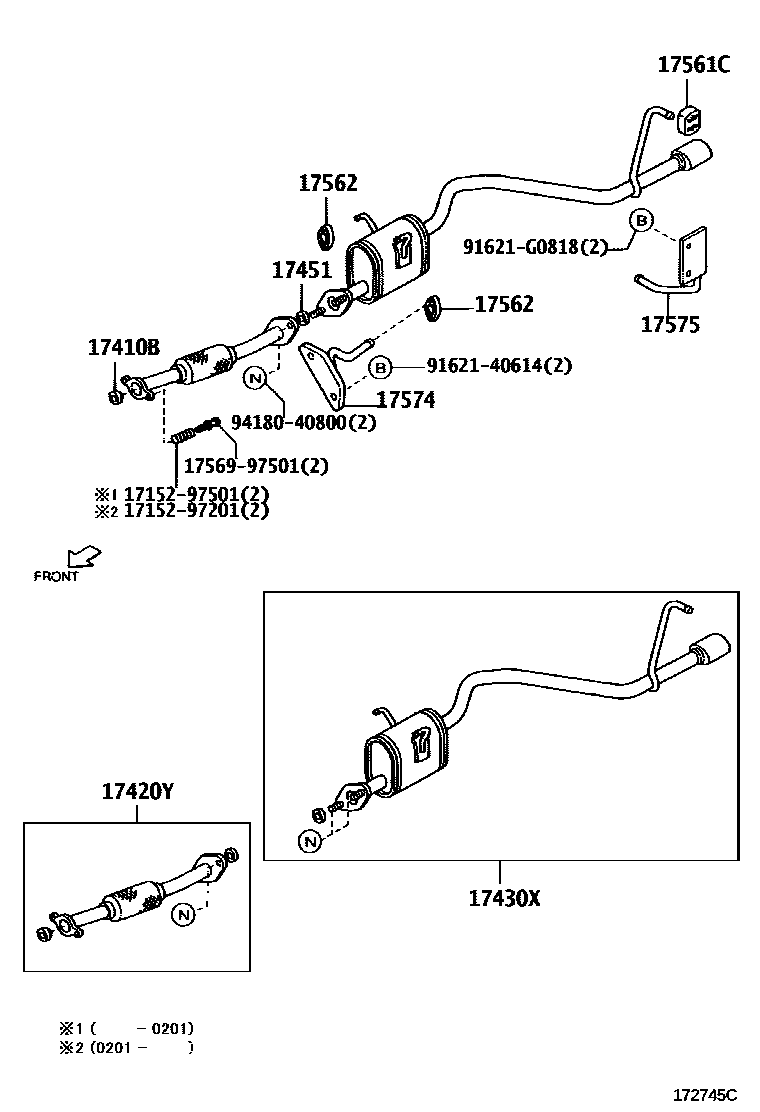

EXHAUST PIPE
17410BGASKET, EXHAUST PIPE
17420YPIPE SET, EXHAUST, FRONT
17430XPIPE SET, EXHAUST TAIL
17451GASKET, EXHAUST PIPE
17561CSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
1715297201BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
main17152-97201
1715297501BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
main17152-97501
1756997501PLATE, EXHAUST PIPE SUPPORT
main17569-97501
9162140614
main91621-40614
91621G0818
main91621-G0818
9418040800
main94180-40800
14 parts on this diagram · 2 diagrams in section
