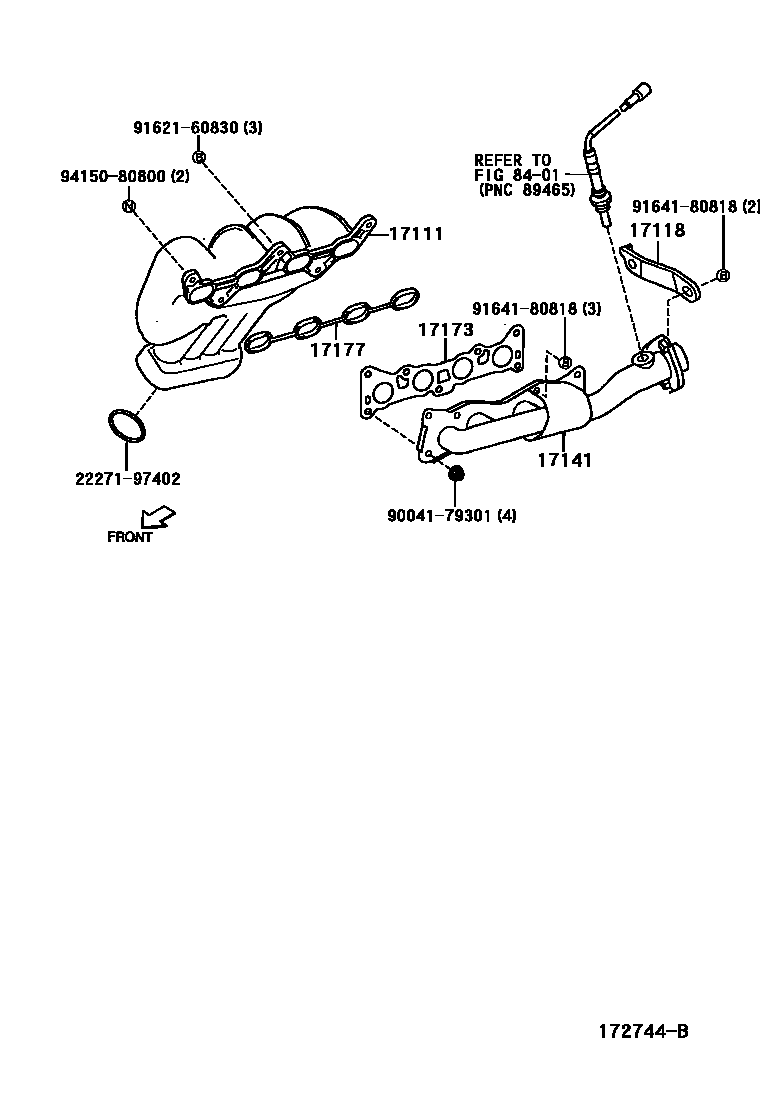

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17111-97401iK3VE..S221,231200009-200107

main17111-97402iK3VE..S221,231200107

17118STAY, MANIFOLD

main17118-97402iK3VE..S221,231200009-200206

main17118-97405iK3VE..S221,231200206

17141MANIFOLD, EXHAUST

main17141-97401iK3VE..S221,231200009-200206

main17141-97403iK3VE..S221,231200206

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-97402iK3VE..S221,231200009

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-97401iK3VE..S221,231200009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2227197402GASKET, THROTTLE BODY

main22271-97402

9004179301

main90041-79301

9162160830

main91621-60830

9164180818

main91641-80818

9415080800

main94150-80800

11 parts on this diagram · 2 diagrams in section
