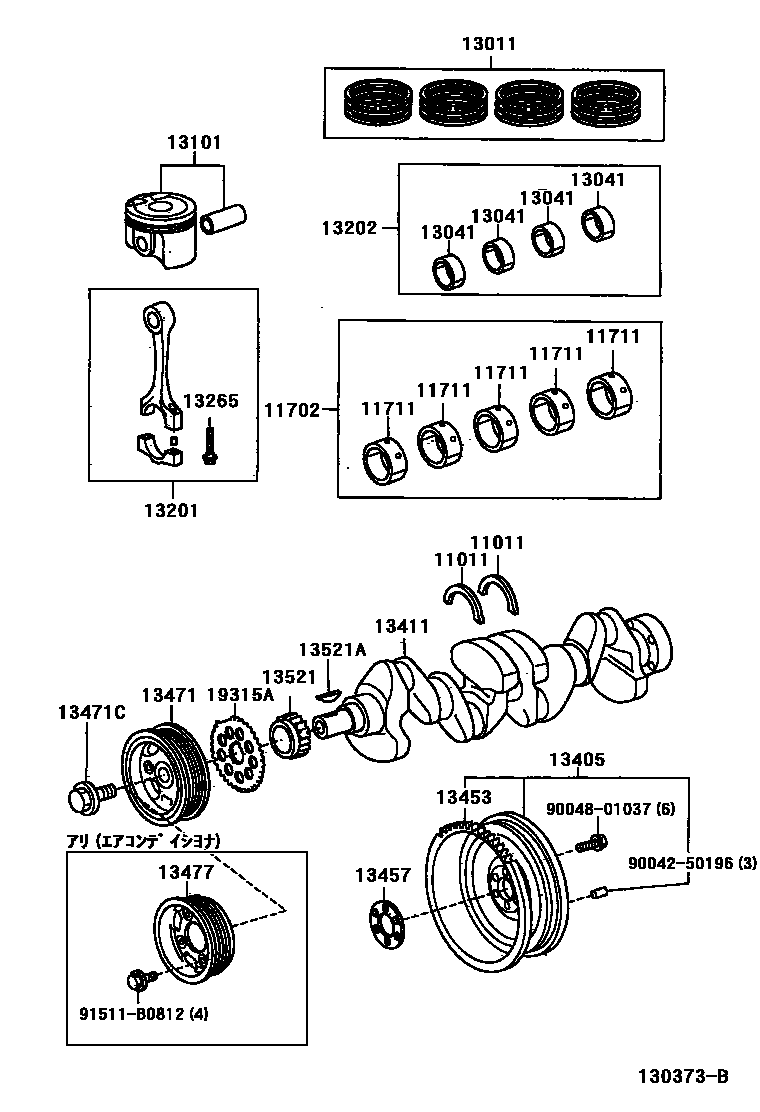

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
11702BEARING SET, CRANKSHAFT
11711BEARING, CRANKSHAFT
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
13201ROD SUB-ASSY, CONNECTING
13202BEARING SET, CONNECTING ROD
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
13457RING, FLYWHEEL SPACER
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13477PULLEY, CRANKSHAFT, NO.2
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315AROTOR, CRANK POSITION SENSOR
9004250196
main90042-50196
9004801037
main90048-01037
91511B0812
main91511-B0812
22 parts on this diagram · 1 diagram in section
