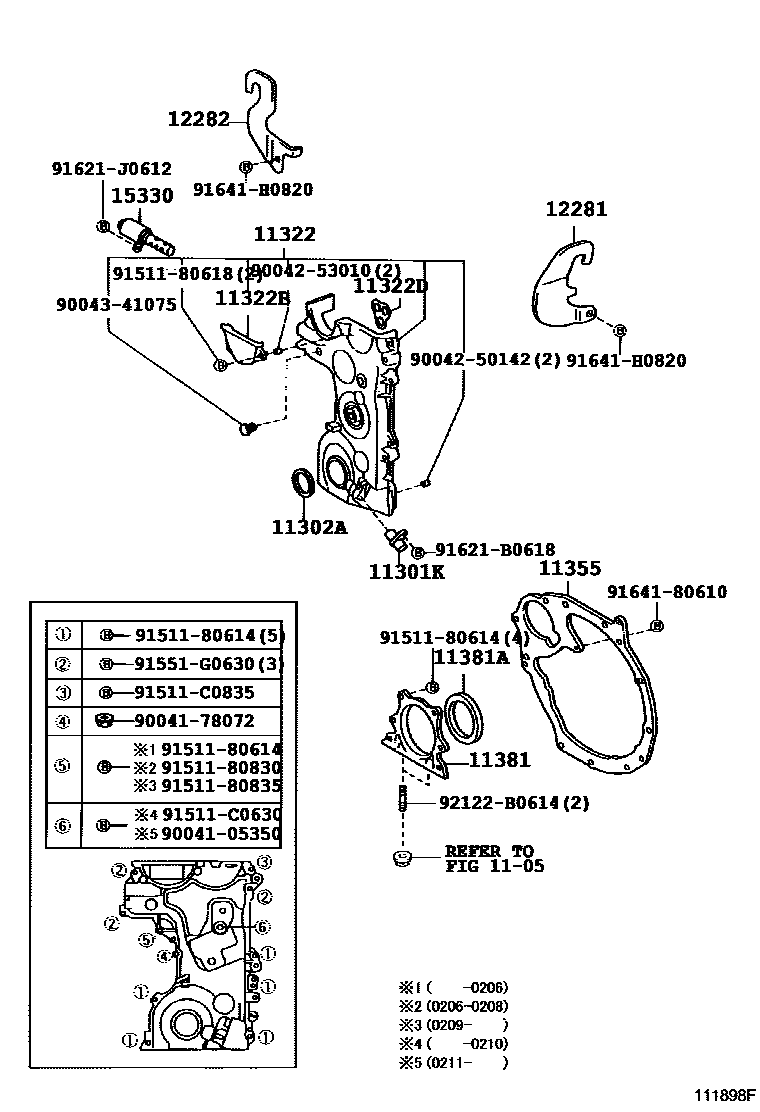

TIMING GEAR COVER & REAR END PLATE

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301KSENSOR, CRANK POSITION

main19311-97401iK3VE..S221,231200009

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-35040iK3VE..S221,231200009

11322COVER, TIMING GEAR, REAR

main11310-97401iK3VE..S221,231200009-200206

main11310-97402iK3VE..S221,231200206-200208

main11310-97403iK3VE..S221,231200209-200211

main11310-97404iK3VE..S221,231200211

11322BCOVER, TIMING BELT, NO.2

main11322-97401iK3VE..S221,231200009

11322DGASKET, TIMING BELT COVER, NO.1

main11328-97401iK3VE..S221,231200009

11355PLATE, REAR END

main11355-97402iK3VE..S221,231200009

11381RETAINER, ENGINE REAR OIL SEAL

main11381-97401iK3VE..S221,231200009

11381ASEAL, ENGINE REAR OIL

main90043-11292iK3VE..S221,231200009

12281HANGER, ENGINE, NO.1

main12281-97401iK3VE..S221,231200009

12282HANGER, ENGINE, NO.2

main12282-97405iK3VE..S221,231200009

15330VALVE ASSY, CAM TIMING OIL CONTROL

main15330-97401iK3VE..S221,231200009

9004105350

main90041-05350

9004178072

main90041-78072

9004250142

main90042-50142

9004253010

main90042-53010

9004341075

main90043-41075

9151180614

main91511-80614

9151180618

main91511-80618

9151180830

main91511-80830

9151180835

main91511-80835

91511C0630

main91511-C0630

91511C0835

main91511-C0835

91551G0630

main91551-G0630

91621B0618

main91621-B0618

91621J0612

main91621-J0612

9164180610

main91641-80610

91641H0820

main91641-H0820

92122B0614

main92122-B0614

29 parts on this diagram · 1 diagram in section
