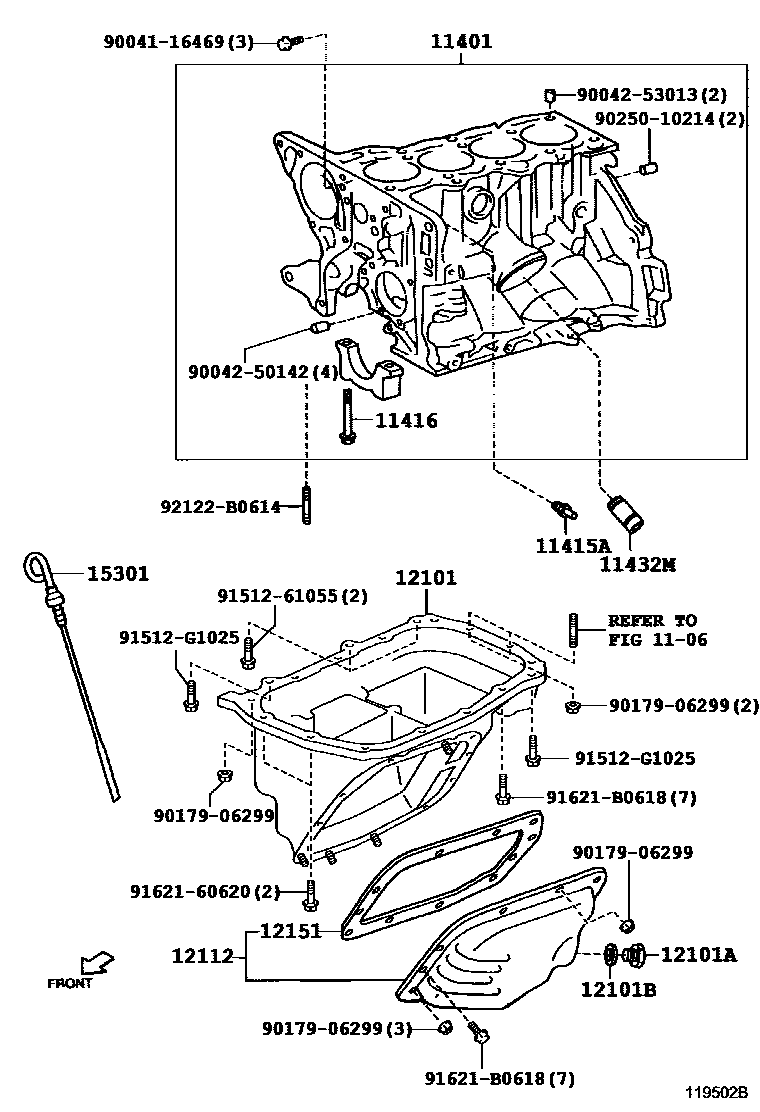

CYLINDER BLOCK

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

11401BLOCK SUB-ASSY, CYLINDER

main11401-97403iK3VE..S221,231200009-200206

main11401-97406iK3VE..S221,231200206

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90048-08005iK3VE..S221,231200009

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90041-05271×10iK3VE..S221,231200009

11432MUNION(FOR CYLINDER BLOCK)

main90404-19013iK3VE..S221,231200009

12101PAN SUB-ASSY, OIL

main12101-97402iK3VE..S221,231200009

12101APLUG(FOR OIL PAN DRAIN)

main90043-41041iK3VE..S221,231200009

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90044-30281iK3VE..S221,231200009

12112PAN, OIL NO.2

main12101-97405iK3VE..S221,231200009

12151GASKET, OIL PAN

main12151-97401iK3VE..S221,231200009

15301GAGE SUB-ASSY, OIL LEVEL

main15301-97502iK3VE..S221,231200009

9004116469

main90041-16469

9004250142

main90042-50142

9004253013

main90042-53013

9017906299

main90179-06299

9025010214

main90250-10214

9151261055

main91512-61055

91512G1025

main91512-G1025

9162160620

main91621-60620

91621B0618

main91621-B0618

92122B0614

main92122-B0614

21 parts on this diagram · 1 diagram in section
