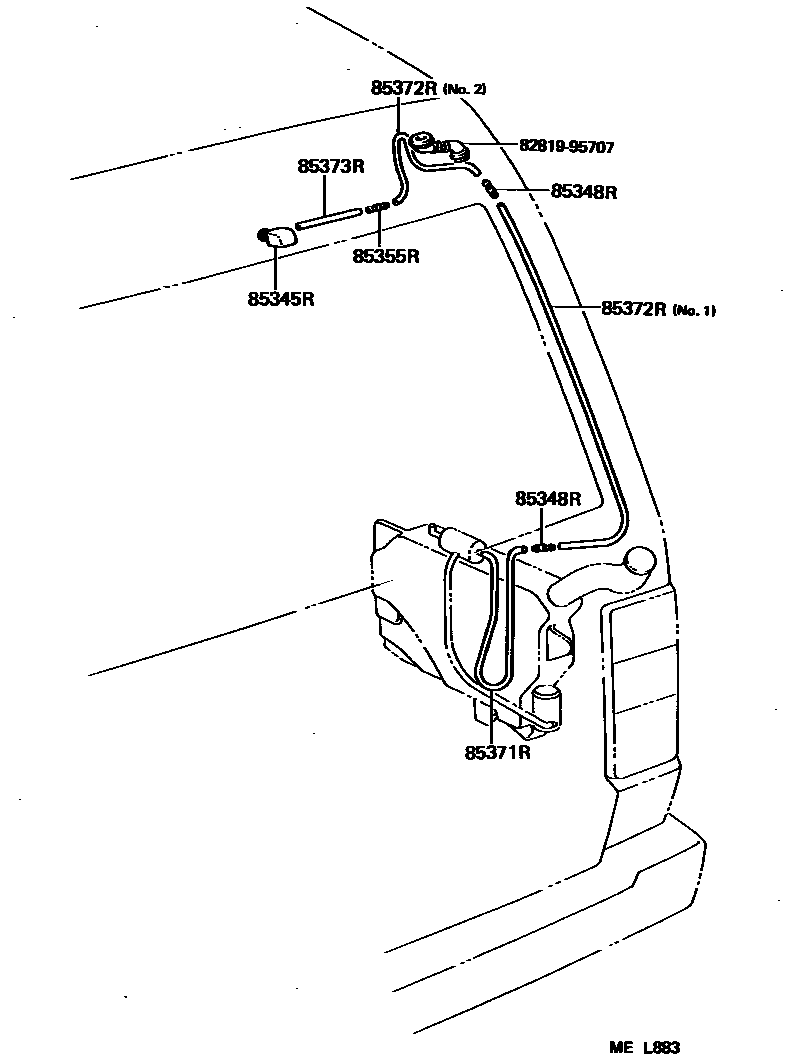

REAR WASHER

85345RNOZZLE, REAR WASHER

main85035-95711iCM30,36,41,KM3#,YM31..SRF198808-199201

main85035-95712iCM3#,4#,KM3#,YM3#,40..HRF,MRF198808-199201

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×2iCM3#,4#,KM3#,YM3#,40..HRF,MRF; CM30,36,41,KM3#,YM31..SRF198808-199201

85355RVALVE, REAR WASHER HOSE

main85031-12250iCM3#,4#,KM3#,YM30,40198808-199001

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013iCM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,SCA,SUC,SUP; CM30,40,KM30,YM40..SSW,SW; CM36,41,KM35,36..DLX198808-199201

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33403iCM30,40,KM30,YM40..LD,SSW,SW; CM31,KM31,36..SUP; CM36,41,KM35,36..DLX198808-199201

*H,L=200,NO.2

main90445-08226iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

main90446-06013iCM30,36,41,KM30,35,36..SRF; CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC; CM30,40,KM30,YM40..(HRF,MRF)..(LD,SSW,SW); CM36,41,KM35,36..(HRF,MRF)..DLX; KM31..HRF; KM31..SRF198808-199201

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90446-07001iCM30,31,40,KM30,36,YM3#,40..FXV,GXL,SCA,SUC,SUP; CM30,36,41,KM30,35,36..SRF; CM30,40,KM30,YM40..(HRF,MRF)..(LD,SSW,SW); CM36,41,KM35,36..(HRF,MRF)..DLX; KM31..HRF; KM31..SRF198808-199109

8281995707GROMMET, WIRING HARNESS

main82819-95707

7 parts on this diagram · 1 diagram in section
