METER

0001 1 0002 1 0003 1 0004 1 0005 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×13iCM30,40..5F..(FXV,GXL); CM30..(LD,SUC)..DSL; CM30..4FC..(FXV,GXL); CM30..4FC..SUC;YM40..4FC..(FXV,GXL); CM40..W4D..4FC; KM30,YM40..LD,SCA,SUC; YM30,40..5F..(FXV,GXL); YM30..4FC;CM30,40..5F..(LD,SUC)..TD198808-199201

main99132-12034×7iCM30,KM30..LD,SCA,SUC; CM40,YM40..4FC..(SSW,SW); CM40,YM40..FXV,GXL; CM40,YM40..LD;CM30,YM30..FXV,GXL; CM40..5F..(SSW,SW); CM41;CM31,36..4FC; YM31..4FC;CM3#,YM40..5F..(DLX,SSW,SUP,SW)198808-199201

83100GGLASS, COMBINATION METER

main83134-95706iCM36,41,KM35,36,YM31..DLX198808-199201

main83134-95707iCM30,31,KM30,31,36,YM31..SSW,SUP,SW198808-199201

main83134-95708iCM40,YM40..SSW,SW198808-199201

main83134-95G00iCM30,KM30..LD,SCA,SUC198808-199201

main83134-95G01iCM30,40,YM30,40..(FXV,GXL,LD)..(CBR,TD)198808-199201

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×9iCM30,40..5F..(FXV,GXL); CM30..(LD,SUC)..DSL; CM30..4FC..(FXV,GXL); CM30..4FC..SUC;YM40..4FC..(FXV,GXL); CM40..W4D..4FC; KM30,YM40..LD,SCA,SUC; YM30,40..5F..(FXV,GXL); YM30..4FC;CM30,40..5F..(LD,SUC)..TD198808-199201

12V 1.2W OR 14V 1.4W

main83101-20040×15iCM30,KM30..LD,SCA,SUC; CM31,36..4FC;CM4#..5F..(DLX,SSW,SW); CM40,YM40..4FC..(SSW,SW); CM40,YM40..FXV,GXL; CM40,YM40..LD;CM30,YM30..FXV,GXL; YM31..4FC;CM3#,YM40..5F..(DLX,SSW,SUP,SW)198808-199201

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-27020iCM40..W5D..4FC199008-199201

main83247-95712iKM35,36..DLX198808-199008

main83247-95713iKM31,36..05S198808-199008

main83247-95714iCM36,41,KM36,YM31..(3FC,4FC,5F,5H)..DLX198808-199201

main83247-95715iYM40..5F..SW;KM3#,YM31..SUP,SW199008-199201

main83247-95717iCM30,31..SSW,SUP,SW198808-199201

main83247-95G03iCM30,KM30..LD,SCA,SUC198808-199201

main83247-95G05iCM30,YM30..FXV,GXL;CM40,YM40..5F..(FXV,GXL)198808-199201

main83247-95G07iCM30,40..(FXV,GXL,LD,SUC)..TD198808-199201

main83247-95G08iCM40,YM40..4FC..(FXV,GXL)198808-199201

main83247-95T00iCM40..5F..(SSW,SW)198808-199201

main83247-95T01iCM40,YM40..LD198808-199201

main83247-95T02iYM40..4FC..SW198808-199201

83110SPEEDOMETER ASSY

main83110-95734iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198808-199201

main83110-95735iCM30,40,YM30,40..FXV198808-199201

main83110-95737iCM30,31,40,KM30,31,36,YM31,40..SSW,SUP,SW198808-199201

main83110-95738iCM36,41,KM35,36,YM31..DLX198808-199201

83128KNOB, TRIP COUNTER

main83128-95J00iCM3#,4#,KM3#,YM3#,40198808-199201

83132CASE, COMBINATION METER

main83132-95G00iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198808-199201

main83132-95J02iCM36,41,KM35,36,YM31..DLX198808-199201

main83132-95J05iCM30,31,KM30,31,36,YM31..SSW,SUP,SW198808-199201

main83132-95J06iCM40,YM40..SSW,SW198808-199201

83145LENS, METER, NO.1

main83145-27020iKM36,YM31..(3FC,5F,5H)..DLX199008-199201

main83145-27040iYM31..4FC..DLX199008-199201

main83145-27060iCM40..W5D..4FC199008-199201

main83145-89320×2iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198808-199201

main83145-95721iKM35,36..DLX198808-198810

main83145-95761iKM35,36..DLX198810-199008

main83145-95G21iCM36,41198808-199201

main83145-95G22iYM40..5F..SW198808-199201

main83145-95G24iYM40..4FC..SW198808-199201

main83145-95G28iKM31,36..05S198808-199008

main83145-95G30iCM40..5F..(SSW,SW);CM30,31..SSW,SUP,SW198808-199201

main83145-95T00iKM30..SW198808-199008

83145ALENS, METER, NO.2

main83145-95722iCM36,41,KM35,36,YM31..DLX198808-199201

main83145-95726iCM30,31,40,KM30,31,36,YM31,40..SSW,SUP,SW198808-199201

main83145-95756iCM40..LD198808-199201

main83145-95J78iCM30,40,YM30,40..FXV,GXL198808-199201

83145BLENS, METER, NO.3

main83145-95757iCM40..5F..(FXV,GXL)198808-199201

main83145-95758iCM40..W4D..4FC198808-199201

main83145-95G19iYM31..DLX;CM36,KM35,36..(3FC,4H,5F,5H)..DLX198808-199201

main83145-95G23iCM30,31,KM30,31,36,YM31,40..(3FC,4H,5F,5H)..(SSW,SUP,SW)198808-199201

main83145-95G25iCM31,YM31,40..4FC..(SUP,SW)198808-199201

main83145-95G29iCM36..4FC198808-199201

main83145-95G31iCM41198808-199201

main83145-95G32iYM30..5F198808-199201

main83145-95G33iYM30..4FC198808-199201

main83145-95G34iCM30..5F..(LD,SUC)198808-199201

main83145-95G36iCM30..4FC..SUC198808-199201

main83145-95G37iCM30..5F..(FXV,GXL)198808-199201

main83145-95G39iCM30..4FC..(FXV,GXL)198808-199201

main83145-95G40iYM40..LD198808-199201

main83145-95G41iYM40..5F..(FXV,GXL)198808-199201

main83145-95G42iYM40..4FC..(FXV,GXL)198808-199201

main83145-95G43iKM30..LD,SCA,SUC198808-199201

main83145-95T01iCM40..SSW,SW198808-199201

83145CLENS, METER, NO.4

main83145-95G20iCM36,41,KM35,36,YM31..DLX198808-199201

main83145-95G35iCM30..SUC..TD198808-199201

main83145-95G38iCM30,40..(FXV,GXL,LD)..TD198808-199201

83310GAGE ASSY, FUEL RECEIVER

main83243-95G00iCM36,41,KM35,36,YM31..DLX198808-199201

main83243-95G01iCM30,31,40,KM30,31,36,YM31,40..SSW,SUP,SW198808-199201

main83243-95G02iCM30,40,KM30,YM40..LD,SCA,SUC198808-199201

main83243-95G03iCM30,40,YM30,40..FXV,GXL198808-199201

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

9018305032

main90183-05032

9356055016

main93560-55016

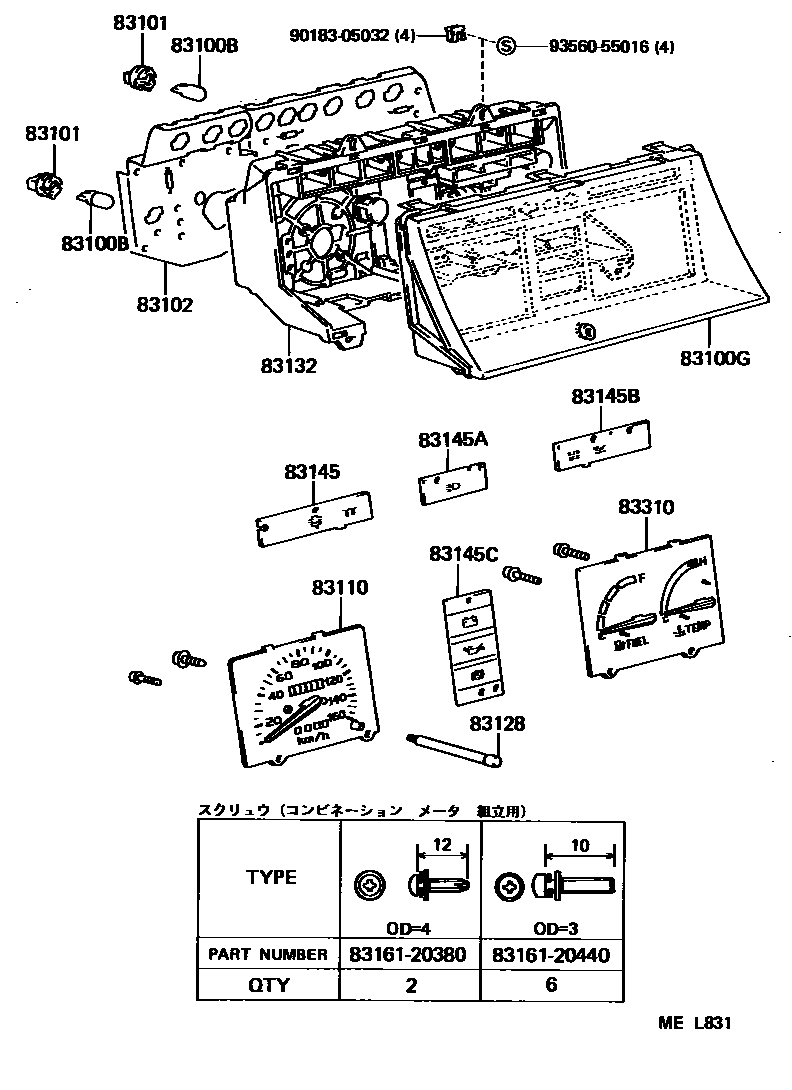

16 parts on this diagram · 5 diagrams in section
