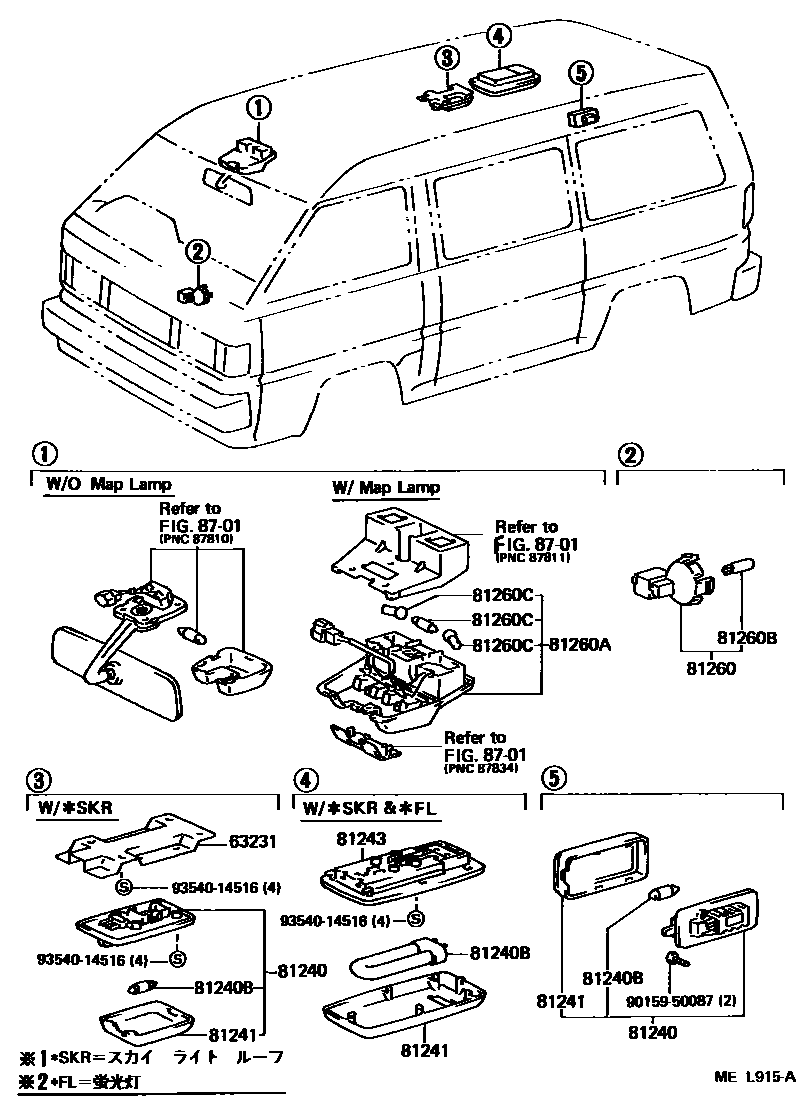

INTERIOR LAMP

63231BRACKET, ROOM LAMP

main63231-95704iCM30,40,KM30,YM30,40..(GXL,SUC)..(CBR,TD)198808-199201

81240LAMP ASSY, ROOM, NO.1

main81240-22081-23iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC; CM30..5F..SUC..TD198808-199201

main81240-22081-46iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC; CM30..5F..SUC..TD198808-199201

main81240-95708-03iCM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201

GRAY,TRIM1#

main81240-95708-06iCM30..5F..GXL;CM30..SUC..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SCA,SUC198808-199201

SABLE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-11004iCM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201

main90981-11034iCM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD)198808-199201

main99132-12100iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC; CM30..5F..SUC..TD198808-199201

81241LENS, ROOM LAMP, NO.1

main81241-20060iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC; CM30..5F..SUC..TD198808-199201

main81241-87003iCM30,40,YM30,40..FXV; CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC; CM30..5F..SUC..TD198808-199201

main81241-95013iCM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201

81243BODY, ROOM LAMP, NO.1

main81243-87004-03iCM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD)198808-199201

GRAY,TRIM1#

main81243-87004-06iCM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD)198808-199201

LIGHT SABLE,TRIM4#

81260LAMP ASSY, GLOVE BOX

main81260-22070iCM30,40,YM30,40..FXV,GXL198808-199201

81260ALAMP ASSY, MAP

main81240-87010-06iCM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD)198808-199201

LIGHT SABLE,TRIM4#

main81240-87010-13iCM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD)198808-199201

GRAY,TRIM1#

81260BBULB(FOR GLOVE BOX)

main90981-11018iCM30,40,YM30,40..FXV,GXL198808-199201

81260CBULB(FOR MAP LAMP)

main90981-12005×2iCM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD)198808-199201

main99132-12100iCM30,40,KM30,YM30,40..(FXV,GXL,SUC)..(CBR,TD)198808-199201

8701MIRROR

→ Go to FIG 87-01

9015950087

main90159-50087

9354014516

main93540-14516

12 parts on this diagram · 1 diagram in section
