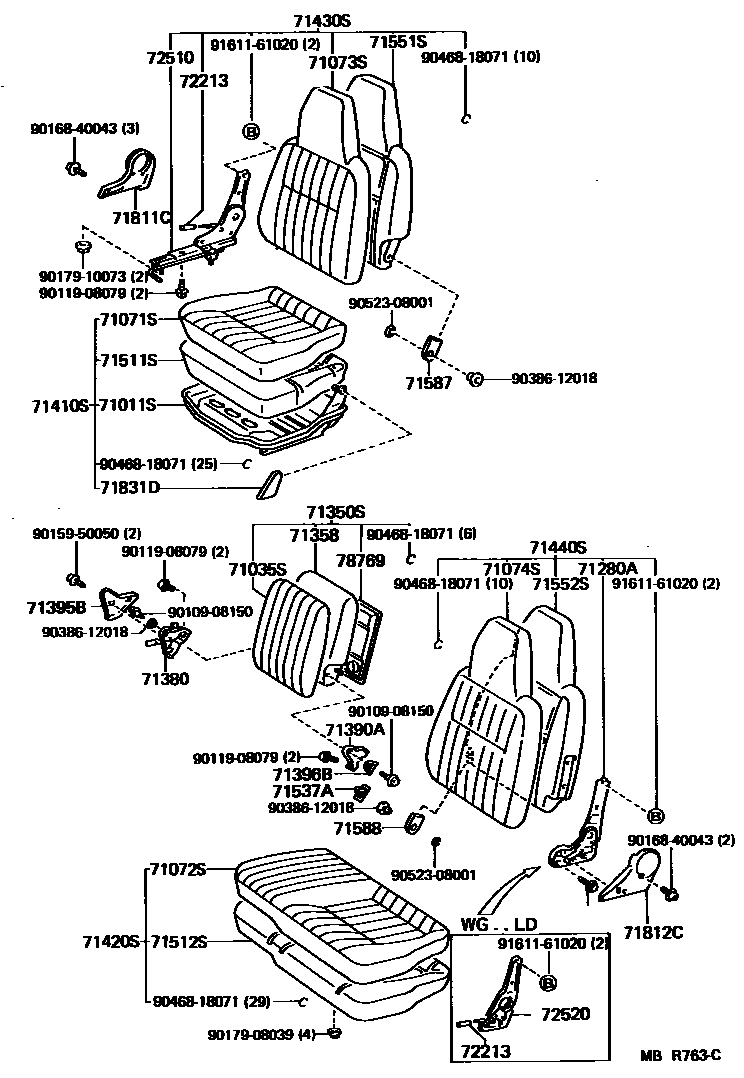

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-95706iCM3#,4#,KM3#,YM3#,40198808-199201

71035SCOVER, FRONT SEATBACK, CENTER

main71095-95709-03iKM30,35,36..MTM..(DLX,SW)198808-199201

GRAY,TRIM1#

main71095-95710-03iKM30..LD198808-199201

GRAY,TRIM1#

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-95735-03iCM30,36,4#,KM30,35,36,YM31,40..DLX,SW198808-199201

GRAY,TRIM1#

main71071-95736-03iCM30,40,KM30,YM40..LD198808-199201

GRAY,TRIM1#

main71071-95738-03iCM30,KM30..SCA,SUC198808-199201

GRAY,TRIM1#

main71071-95738-06iCM30,KM30..SCA,SUC198808-199201

SABLE,TRIM4#

main71071-95739-03iCM30,40,YM30,40..GXL198808-199201

GRAY,TRIM1#

main71071-95739-06iCM30,40,YM30,40..GXL198808-199201

SABLE,TRIM4#

main71071-95740-03iCM30,40,YM30,40..FXV198808-199201

GRAY,TRIM1#

main71071-95740-06iCM30,40,YM30,40..FXV198808-199201

SABLE,TRIM4#

main71071-95746-03iCM30,31,40,KM31,36,YM31..SSW,SUP198808-199201

GRAY,TRIM1#

main71071-95749-03iCM30,40,YM30,40..GXL199104-199104

main71071-95749-06iCM30,40,YM30,40..GXL198909-199201

main71071-95753-06iCM30,40,YM30,40..FXV198909-199201

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-95754-03iKM30,35,36..MTM..(DLX,SW)198808-199201

GRAY,TRIM1#

main71072-95755-03iCM30,36,4#,KM30,36,YM31,40..(3FC,4FC,5F)..(DLX,SW)198808-199201

GRAY,TRIM1#

main71072-95756-03iKM30..LD198808-199201

GRAY,TRIM1#

main71072-95758-03iCM30,KM30..SCA,SUC198808-199201

GRAY,TRIM1#

main71072-95758-06iCM30,KM30..SCA,SUC198808-199201

SABLE,TRIM4#

main71072-95759-03iCM30,40,YM30,40..GXL198808-199201

GRAY,TRIM1#

main71072-95759-06iCM30,40,YM30,40..GXL198808-199201

SABLE,TRIM4#

main71072-95760-03iCM30,40,YM30,40..FXV198808-199201

GRAY,TRIM1#

main71072-95760-06iCM30,40,YM30,40..FXV198808-199201

SABLE,TRIM4#

main71072-95761-03iCM30,40,YM40..LD198808-199201

GRAY,TRIM1#

main71072-95773-03iCM30,31,40,KM31,36,YM31..SSW,SUP198808-199201

GRAY,TRIM1#

main71072-95778-03iCM30,40,YM30,40..GXL198903-199201

main71072-95778-06iCM30,40,YM30,40..GXL198909-199201

main71072-95784-06iCM30,40,YM30,40..FXV198909-199201

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-95738-03iCM30,36,4#,KM30,35,36,YM31,40..DLX,SW198808-199201

GRAY,TRIM1#

main71073-95739-03iCM30,40,KM30,YM40..LD198808-199201

GRAY,TRIM1#

main71073-95741-03iCM30,KM30..SCA,SUC198808-199201

GRAY,TRIM1#

main71073-95741-06iCM30,KM30..SCA,SUC198808-199201

SABLE,TRIM4#

main71073-95742-03iCM30,40,YM30,40..GXL198808-199201

GRAY,TRIM1#

main71073-95742-06iCM30,40,YM30,40..GXL198808-199201

SABLE,TRIM4#

main71073-95743-03iCM30,40,YM30,40..FXV198808-199201

GRAY,TRIM1#

main71073-95743-06iCM30,40,YM30,40..FXV198808-199201

SABLE,TRIM4#

main71073-95745-03iCM30,31,40,KM31,36,YM31..SSW,SUP198808-199201

GRAY,TRIM1#

main71073-95751-03iCM30,40,YM30,40..GXL199104-199104

main71073-95751-06iCM30,40,YM30,40..GXL198909-199201

main71073-95755-06iCM30,40,YM30,40..FXV198909-199201

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-95745-03iCM30,36,4#,KM30,35,36,YM31,40..DLX,SW198808-199201

GRAY,TRIM1#

main71074-95746-03iCM30,40,KM30,YM40..LD198808-199201

GRAY,TRIM1#

main71074-95748-03iCM30,KM30..SCA,SUC198808-199201

GRAY,TRIM1#

main71074-95748-06iCM30,KM30..SCA,SUC198808-199201

SABLE,TRIM4#

main71074-95749-03iCM30,40,YM30,40..GXL198808-199201

GRAY,TRIM1#

main71074-95749-06iCM30,40,YM30,40..GXL198808-199201

SABLE,TRIM4#

main71074-95750-03iCM30,40,YM30,40..FXV198808-199201

GRAY,TRIM1#

main71074-95750-06iCM30,40,YM30,40..FXV198808-199201

SABLE,TRIM4#

main71074-95752-03iCM30,31,40,KM31,36,YM31..SSW,SUP198808-199201

GRAY,TRIM1#

main71074-95760-03iCM30,40,YM30,40..GXL199104-199104

main71074-95760-06iCM30,40,YM30,40..GXL198909-199201

main71074-95764-06iCM30,40,YM30,40..FXV198909-199201

71280AHINGE ASSY, FRONT SEATBACK, LH

main71320-95701-01iCM30,36,4#,KM30,35,36,YM31,40..DLX,SW198808-199201

BLACK,TRIM1#

71350SBACK ASSY, FRONT SEAT, CENTER

main71350-95727-03iKM30,35,36..MTM..(DLX,SW)198808-199201

***,GRAY,TRIM1#

main71350-95728-03iKM30..LD198808-199201

***,GRAY,TRIM1#

71358PAD, CENTER SEATBACK

main71033-95702iKM30,35,36..4H,5H198808-199201

71380HINGE ASSY, CENTER SEAT, RH

main71380-95700-13iKM30,35,36..4H,5H198808-199201

GRAY,TRIM1#

71390AHINGE ASSY, CENTER SEAT, LH

main71378-95704-13iKM30,35,36..4H,5H198808-199201

GRAY,TRIM1#

71395BCOVER, CENTER SEAT HINGE, RH

main71395-95701-13iKM30,35,36..4H,5H198808-199201

GRAY,TRIM1#

71396BCOVER, CENTER SEAT HINGE, LH

main71396-95704-13iKM30,35,36..4H,5H198808-199201

GRAY,TRIM1#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-95787-03iCM30,36,4#,KM30,35,36,YM31,40..DLX,SW198808-199201

***,GRAY,TRIM1#

main71410-95788-03iCM30,40,KM30,YM40..LD198808-199201

***,GRAY,TRIM1#

main71410-95G00-03iCM30,KM30..SCA,SUC198808-199201

***,GRAY,TRIM1#

main71410-95G00-06iCM30,KM30..SCA,SUC198808-199201

***,SABLE,TRIM4#

main71410-95G01-03iCM30,40,YM30,40..GXL198808-199201

***,GRAY,TRIM1#

main71410-95G01-06iCM30,40,YM30,40..GXL198808-199201

***,SABLE,TRIM4#

main71410-95G02-03iCM30,40,YM30,40..FXV198808-199201

***,GRAY,TRIM1#

main71410-95G02-06iCM30,40,YM30,40..FXV198808-199201

***,SABLE,TRIM4#

main71410-95G08-03iCM30,31,40,KM31,36,YM31..SSW,SUP198808-199201

***,GRAY,TRIM1#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-95751-03iKM30,35,36..MTM..(DLX,SW)198808-199201

***,GRAY,TRIM1#

main71420-95752-03iCM30,36,4#,KM30,36,YM31,40..(3FC,4FC,5F)..(DLX,SW)198808-199201

***,GRAY,TRIM1#

main71420-95753-03iKM30..LD198808-199201

***,GRAY,TRIM1#

main71420-95755-03iCM30,KM30..SCA,SUC198808-199201

***,GRAY,TRIM1#

main71420-95755-06iCM30,KM30..SCA,SUC198808-199201

***,SABLE,TRIM4#

main71420-95756-03iCM30,40,YM30,40..GXL198808-199201

***,GRAY,TRIM1#

main71420-95756-06iCM30,40,YM30,40..GXL198808-199201

***,SABLE,TRIM4#

main71420-95757-03iCM30,40,YM30,40..FXV198808-199201

***,GRAY,TRIM1#

main71420-95757-06iCM30,40,YM30,40..FXV198808-199201

***,SABLE,TRIM4#

main71420-95758-03iCM30,40,YM40..LD198808-199201

***,GRAY,TRIM1#

main71420-95770-03iCM30,31,40,KM31,36,YM31..SSW,SUP198808-199201

***,GRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-95746-03iCM30,36,4#,KM30,35,36,YM31,40..DLX,SW198808-199201

***,GRAY,TRIM1#

main71430-95747-03iCM30,40,KM30,YM40..LD198808-199201

***,GRAY,TRIM1#

main71430-95749-03iCM30,KM30..SCA,SUC198808-199201

***,GRAY,TRIM1#

main71430-95749-06iCM30,KM30..SCA,SUC198808-199201

***,SABLE,TRIM4#

main71430-95750-03iCM30,40,YM30,40..GXL198808-199201

***,GRAY,TRIM1#

main71430-95750-06iCM30,40,YM30,40..GXL198808-199201

***,SABLE,TRIM4#

main71430-95751-03iCM30,40,YM30,40..FXV198808-199201

***,GRAY,TRIM1#

main71430-95751-06iCM30,40,YM30,40..FXV198808-199201

***,SABLE,TRIM4#

main71430-95753-03iCM30,31,40,KM31,36,YM31..SSW,SUP198808-199201

***,GRAY,TRIM1#

main71430-95758-03iCM36,KM35,36..VSP..SRF198808-199201

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-95754-03iCM30,36,4#,KM30,35,36,YM31,40..DLX,SW198808-199201

***,GRAY,TRIM1#

main71440-95755-03iCM30,40,KM30,YM40..LD198808-198908

***,GRAY,TRIM1#

main71440-95757-03iCM30,KM30..SCA,SUC198808-198908

***,GRAY,TRIM1#

main71440-95757-06iCM30,KM30..SCA,SUC198808-198908

***,SABLE,TRIM4#

main71440-95758-03iCM30,40,YM30,40..GXL198808-198908

***,GRAY,TRIM1#

main71440-95758-06iCM30,40,YM30,40..GXL198808-198908

***,SABLE,TRIM4#

main71440-95759-03iCM30,40,YM30,40..FXV198808-198905

***,GRAY,TRIM1#

main71440-95759-06iCM30,40,YM30,40..FXV198808-198905

***,SABLE,TRIM4#

main71440-95761-03iCM30,31,40,KM31,36,YM31..SSW,SUP198808-199201

***,GRAY,TRIM1#

main71440-95775-03iCM30,40,KM30,YM40..LD198908-199201

***,GRAY,TRIM1#

main71440-95776-03iCM30,KM30..SCA,SUC198908-199201

***,GRAY,TRIM1#

main71440-95776-06iCM30,KM30..SCA,SUC198908-199201

***,SABLE,TRIM4#

main71440-95777-03iCM30,40,YM30,40..GXL198908-199201

***,GRAY,TRIM1#

main71440-95777-06iCM30,40,YM30,40..GXL198908-199201

***,SABLE,TRIM4#

main71440-95778-03iCM30,40,YM30,40..FXV198908-199201

***,GRAY,TRIM1#

main71440-95778-06iCM30,40,YM30,40..FXV198908-199201

***,SABLE,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-95701iCM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201

main71511-95703iCM30,40,YM30,40..FXV198808-199201

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-95716iKM30,35,36..4H,5H198808-199201

main71512-95702iCM3#,4#,KM30,31,36,YM3#,40..(3FC,4FC,5F)..(DLX,GXL,LD,SCA,SSW,SUC,SUP,SW)198808-199201

main71512-95707iCM30,40,YM30,40..FXV198808-199201

71537APROTECTOR, FRONT SEAT CUSHION

main71538-95700-13iCM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,LD,SCA,SSW,SUC,SUP198808-199201

GRAY,TRIM1#

main71538-95700-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-95702iCM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW198808-199201

main71505-95705iCM36,KM35,36..VSP..SRF198808-199201

main71505-95706iCM30,40,KM30,YM30,40..GXL,SCA,SUC198808-199201

main71505-95707iCM30,40,YM30,40..FXV198808-199201

main71505-95708iCM30,31,40,KM31,36,YM31..SSW,SUP198808-199201

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71506-95702iCM30,36,4#,KM30,35,36,YM31,40..DLX,LD,SW198808-199201

main71506-95703iCM30,31,40,KM31,36,YM31..SSW,SUP198808-199201

main71506-95709iCM30,40,KM30,YM30,40..GXL,SCA,SUC198808-199201

main71506-95710iCM30,40,YM30,40..FXV198808-199201

71587PROTECTOR, FRONT SEATBACK EDGE

main71588-95700-13iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

main71588-95700-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

71588PROTECTOR, FRONT SEATBACK EDGE, NO.2

main71588-95700-13iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

main71588-95700-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

71811CCOVER, RECLINING ADJUSTER, RH

main71801-95700-03iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

main71801-95700-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

main71801-95701-13iCM36,KM35,36..VSP..SRF198808-199201

71812CCOVER, RECLINING ADJUSTER, LH

main71802-95701-13iCM30,31,40,KM30,31,36,YM3#,40..FXV,GXL,LD,SCA,SSW,SUC,SUP198908-199201

GRAY,TRIM1#

main71802-95701-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198908-199201

SABLE,TRIM4#

main71812-95700-03iCM30,36,4#,KM30,35,36,YM31,40..DLX,SW198808-199201

GRAY,TRIM1#

main71812-95702-03iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198808-198908

GRAY,TRIM1#

main71812-95702-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-198908

SABLE,TRIM4#

71831DCOVER, FRONT SEAT HINGE, RH

main71831-95700-13iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

main71831-95700-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

72213KNOB, SEAT TRACK ADJUSTING HANDLE

main72213-95700-03iCM3#,4#,KM3#,YM3#,40198909-199201

GRAY,TRIM1#

main72213-95700-06iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198909-199201

SABLE,TRIM4#

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-95708-03iCM3#,4#,KM3#,YM31,40..DLX,SSW,SUP,SW198808-199201

GRAY,TRIM1#

main72510-95709-03iCM30,40,KM30,YM30,40..GXL,LD,SCA,SUC198808-199201

GRAY,TRIM1#

main72510-95709-16iCM30,40,KM30,YM30,40..GXL,SCA,SUC198808-199201

SABLE,TRIM4#

main72510-95710-03iCM30,40,YM30,40..FXV198808-199201

GRAY,TRIM1#

main72510-95710-16iCM30,40,YM30,40..FXV198808-199201

SABLE,TRIM4#

main72510-95711-13iCM36,KM35,36..VSP..SRF198808-199201

72520ADJUSTER ASSY, RECLINING SEATBACK, LH

main72520-95706-03iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198808-198908

GRAY,TRIM1#

main72520-95706-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-198908

SABLE,TRIM4#

main72520-95708-13iCM30,31,40,KM31,36,YM31..SSW,SUP198808-199201

GRAY,TRIM1#

main72520-95709-03iCM30,40,KM30,YM30,40..FXV,GXL,LD,SCA,SUC198908-199201

GRAY,TRIM1#

main72520-95709-06iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198908-199201

SABLE,TRIM4#

78769TRAY, SUB SEATBACK

main78769-95702-13iKM30,35,36..4H,5H198808-199201

GRAY,TRIM1#

9010908150

main90109-08150

9011908079

main90119-08079

9015950050

main90159-50050

9016840043

main90168-40043

9017908039

main90179-08039

9017910073

main90179-10073

9038612018

main90386-12018

9046818071

main90468-18071

9052308001

main90523-08001

9161161020

main91611-61020

41 parts on this diagram · 15 diagrams in section
