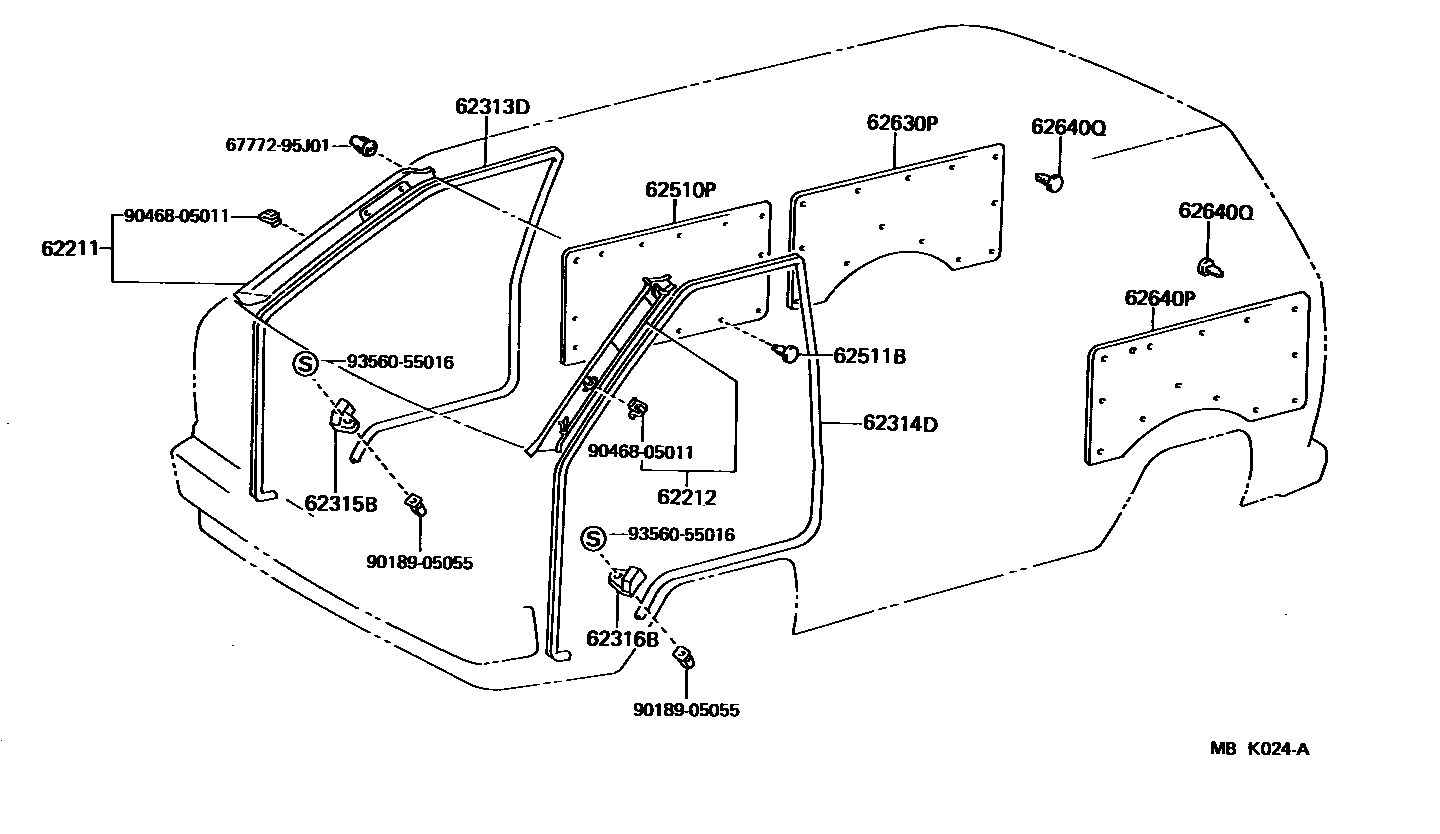

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1 0005 1

62211GARNISH, FRONT PILLAR, RH

main62211-95706-03iCM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201

GRAY,TRIM1#

sub62211-27010

main62211-95706-06iCM30..5F..GXL;CM30..SUC..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SCA,SUC198808-199201

SABLE,TRIM4#

sub62211-27010

main62211-95707-03iCM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201

main62211-95707-03iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC198808-199201

GRAY,TRIM1#

main62211-95707-06iCM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201

SABLE,TRIM4#

main62211-95707-06iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC198808-199201

62212GARNISH, FRONT PILLAR, LH

main62212-95707-03iCM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201

GRAY,TRIM1#

sub62212-27010

main62212-95707-06iCM30..5F..GXL;CM30..SUC..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SCA,SUC198808-199201

SABLE,TRIM4#

sub62212-27010

main62212-95708-03iCM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201

main62212-95708-03iCM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201

GRAY,TRIM1#

main62212-95708-06iCM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201

main62212-95708-06iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC198808-199201

SABLE,TRIM4#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-95710-13iCM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201

GRAY,TRIM1#

main62313-95710-16iCM30..5F..GXL;CM30..SUC..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SCA,SUC198808-199201

SABLE,TRIM4#

main62313-95711-03iCM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201

main62313-95711-03iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC198808-199201

GRAY,TRIM1#

main62313-95711-16iCM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201

main62313-95711-16iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC198808-199201

SABLE,TRIM4#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-95710-13iCM30..DSL;CM30..5F..GXL;CM30..4FC..(GXL,SUC);CM31,36,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201

GRAY,TRIM1#

main62313-95710-16iCM30..5F..GXL;CM30..SUC..DSL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SCA,SUC198808-199201

SABLE,TRIM4#

main62314-95703-03iCM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201

main62314-95703-03iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC198808-199201

GRAY,TRIM1#

main62314-95703-16iCM30..5F..GXL;CM30..4FC..(GXL,SUC);CM40,KM30,YM30,40..GXL,SUC198808-199201

main62314-95703-16iCM30..5F..SUC..TD;CM30,40,YM30,40..FXV198808-199201

SABLE,TRIM4#

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62317-95700-13iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

sub62317-27010

main62317-95700-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

sub62317-27010

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62318-95700-13iCM3#,4#,KM3#,YM3#,40198808-199201

GRAY,TRIM1#

sub62318-27010

main62318-95700-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

SABLE,TRIM4#

sub62318-27010

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-95700-03iCM30,KM30..SUC198808-199201

GRAY,TRIM1#

main62510-95700-16iCM30,KM30..SUC198808-199201

SABLE,TRIM4#

main62510-95702-03iCM30,40,KM30,YM40..W4D..(LD,SSW,SW)198808-199201

GRAY,TRIM1#

main62510-95703-03iCM36,41,KM31,35,36,YM31..V4D..(05S,06S)198808-199201

GRAY,TRIM1#

main62510-95704-03iCM36,41,KM31,35,36,YM31..V4D..(05S,06S)198808-199201

main62510-95706-03iKM36..VSP..MRF198808-199201

GRAY,TRIM1#

main62510-95707-03iCM30,40,KM30,YM40..W4D..(SSW,SW)198808-199201

main62510-95707-03iCM30,40,KM30,YM40..W4D..(SSW,SW)198808-199201

main62510-95711-03iCM30,40,YM30,40..GXL198808-199201

GRAY,TRIM1#

main62510-95711-16iCM30,40,YM30,40..GXL198808-199201

SABLE,TRIM4#

main62510-95713-03iCM36,41,KM35,36..V4D..VSG..(02S,03S)198808-199201

GRAY,TRIM1#

main62510-95715-03iKM30..SUC198808-199201

main62510-95715-16iKM30..SUC198808-199201

main62510-95718-03iKM30..SCA198808-199201

GRAY,TRIM1#

main62510-95718-16iKM30..SCA198808-199201

SABLE,TRIM4#

main62510-95726-03iCM30,40,YM30,40..GXL198808-199201

main62510-95726-06iCM30,40,YM30,40..GXL198808-199201

main62510-95730-03iYM30..4FC..FXV199012-199201

main62510-95730-03iCM30,40,YM30,40..FXV198808-199201

GRAY,TRIM1#

main62510-95730-06iCM30,40,YM30,40..FXV198808-199201

SABLE,TRIM4#

main62510-95730-06iYM30..4FC..FXV199012-199201

main62510-95730-16iCM30,40,YM30,40..FXV198909-199201

main62510-95731-03iCM30,40,YM30,40..FXV198808-199201

main62510-95731-06iCM30,40,YM30,40..FXV198808-199201

main62510-95732-03iCM30,40,YM30,40..GXL199104-199104

main62510-95732-03iCM30,40,YM30,40..GXL198903-199201

main62510-95732-06iCM30,40,YM30,40..GXL198909-199201

main62511-95707iCM36,KM35,36..VSP..SRF198808-199201

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-06020-13iCM30,KM30..SCA,SUC198808-199201

SHADOW GRAY,TRIM1#

sub90467-06020

main90467-06020-36iCM30,KM30..SCA,SUC198808-199201

SABLE,TRIM4#

sub90467-06020

main90467-09010-03iKM36..VSP..MRF198808-199201

GRAY,TRIM1#

sub90467-09010

main90467-10071-03iCM36,KM35,36..VSP..SRF198808-199201

GRAY,TRIM1#

sub90467-10071

62630PPANEL ASSY, QUARTER TRIM, REAR RH

main62630-95701-03iCM30,40,KM30,YM40..LD198808-199201

GRAY,TRIM1#

main62630-95704-03iKM36..VSP..MRF198808-199201

GRAY,TRIM1#

main62630-95706-03iCM30,40,KM30,YM40..W4D..(SSW,SW)198808-199201

GRAY,TRIM1#

main62630-95710-03iCM30,40,YM30,40..GXL198808-199201

GRAY,TRIM1#

main62630-95710-16iCM30,40,YM30,40..GXL198808-199201

SABLE,TRIM4#

main62630-95713-03iCM36,41,KM31,35,36,YM31..V1..V4D..VSG198808-199201

GRAY,TRIM1#

main62630-95714-03iCM36,KM35,36..V4D..VSG..MRF198808-199201

GRAY,TRIM1#

main62630-95718-03iCM31,36,41,KM31,35,36,YM31..V1..V5D198808-199201

GRAY,TRIM1#

main62630-95719-03iCM36,KM35,36..V5D..MRF198808-199201

GRAY,TRIM1#

main62630-95720-03iKM30..SCA198808-199201

GRAY,TRIM1#

main62630-95720-16iKM30..SCA198808-199201

SABLE,TRIM4#

main62630-95721-03iCM30,KM30..SUC198808-199201

GRAY,TRIM1#

main62630-95721-16iCM30,KM30..SUC198808-199201

SABLE,TRIM4#

main62630-95729-03iCM30,40,YM30,40..FXV198808-199201

GRAY,TRIM1#

main62630-95729-06iCM30,40,YM30,40..FXV198808-199201

SABLE,TRIM4#

main62630-95729-16iCM30,40,YM30,40..FXV198909-199201

main62630-95730-03iCM30,40,YM30,40..GXL199104-199104

main62630-95730-03iCM30,40,YM30,40..GXL198903-199201

main62630-95730-06iCM30,40,YM30,40..GXL198909-199201

main62630-95732-03iCM30,40,KM30..W5D198910-199201

GRAY,TRIM1#

main62631-95702iCM36,KM35,36..VSP..SRF198808-199201

62640PPANEL ASSY, QUARTER TRIM, REAR LH

main62632-95704iCM36,KM35,36..VSP..SRF198808-199201

main62640-95701-03iCM30,40,KM30,YM40..LD198808-199201

GRAY,TRIM1#

main62640-95705-03iKM36..VSP..MRF198808-199201

GRAY,TRIM1#

main62640-95707-03iCM30,40,KM30,YM40..SSW,SW198808-199201

GRAY,TRIM1#

main62640-95710-03iCM30,40,YM30,40..GXL198808-199201

GRAY,TRIM1#

main62640-95710-16iCM30,40,YM30,40..GXL198808-199201

SABLE,TRIM4#

main62640-95712-03iCM31,36,41,KM31,35,36,YM31..V1..(05S,06S)198808-199201

GRAY,TRIM1#

main62640-95713-03iCM36,KM35,36..MRF..(05S,06S)198808-199201

GRAY,TRIM1#

main62640-95715-03iCM36,41,KM35,36..V1..VSG..(02S,03S)198808-199201

GRAY,TRIM1#

main62640-95716-03iCM36,KM35,36..VSG..MRF..(02S,03S)198808-199201

GRAY,TRIM1#

main62640-95718-03iCM30,KM30..SUC198808-199201

GRAY,TRIM1#

main62640-95718-16iCM30,KM30..SUC198808-199201

SABLE,TRIM4#

main62640-95719-03iKM30..SCA198808-199201

GRAY,TRIM1#

main62640-95719-16iKM30..SCA198808-199201

SABLE,TRIM4#

main62640-95727-03iCM30,40,YM30,40..FXV198808-199201

GRAY,TRIM1#

main62640-95727-06iCM30,40,YM30,40..FXV198808-199201

SABLE,TRIM4#

main62640-95727-16iCM30,40,YM30,40..FXV198909-199201

main62640-95728-03iCM30,40,YM30,40..GXL198903-199201

main62640-95728-03iCM30,40,YM30,40..GXL199104-199104

main62640-95728-06iCM30,40,YM30,40..GXL198909-199201

62640QCLIP (FOR QUARTER TRIM REAR PANEL)

main90467-09010-03iCM30,40,YM30,40..FXV,GXL198808-199201

GRAY,TRIM1#

sub90467-09010

main90467-09010-46iCM30,40,YM30,40..FXV,GXL198808-199201

SABLE,TRIM4#

sub90467-09010

main90467-10071-03iCM36,KM35,36..VSP..SRF198808-199201

GRAY,TRIM1#

sub90467-10071

6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J01

9018905055

main90189-05055

9046805011

main90468-05011

9356055016

main93560-55016

15 parts on this diagram · 5 diagrams in section
