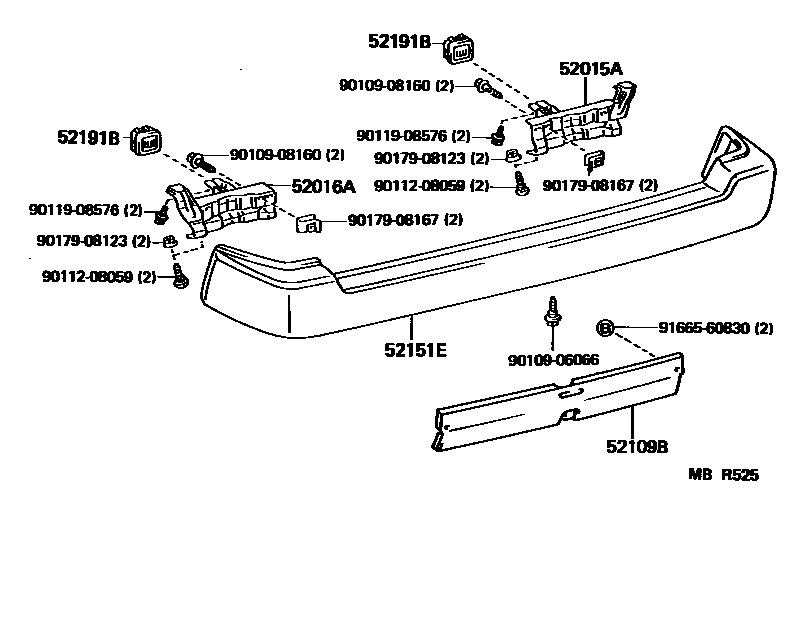

REAR BUMPER & BUMPER STAY

0001 1 0002 14WD ������

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-95700iCM30..4FC..GXL;CM40,KM30,YM30,40;CM30..5F..(LD,SSW,SUC,SW);CM31,36,KM31,35,36,YM31..V1; CM30..4FC..SUC198808-199201

main52015-95701iCM36,KM35,36..MRF198808-199201

main52015-95703iCM30,41..5F..(DLX,FXV,GXL); CM30..4FC..FXV; CM30..4FC..SUC198808-199201

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-95700iCM30..4FC..GXL;CM40,KM30,YM30,40;CM30..5F..(LD,SSW,SUC,SW);CM31,36,KM31,35,36,YM31..V1; CM30..4FC..SUC198808-199201

main52016-95701iCM36,KM35,36..MRF198808-199201

main52016-95703iCM30,41..5F..(DLX,FXV,GXL); CM30..4FC..FXV; CM30..4FC..SUC198808-199201

52109BWEIGHT SUB-ASSY, REAR BUMPER

main52109-95700iCM30,41..5F..(DLX,FXV,GXL); CM30..4FC..SUC198808-199201

52151EBAR, REAR BUMPER

main52151-95708iCM3#,4#,KM3#,YM3#,40..DLX,GXL,LD,SCA,SSW,SUC,SUP,SW198808-199201

main52151-95709-02iCM30,40,YM30,40..FXV,GXL198808-199201

RED MICA,3H4

main52151-95709-06iCM30,40,YM30,40..GXL198909-198910

main52151-95709-07iCM30,40,YM30,40..GXL198903-198903

main52151-95709-17iCM30,40,YM30,40..GXL199105-199108

main52151-95709-23iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC199008-199201

SILVER M,20T

main52151-95709-24iCM30,40,YM30,40..GXL199005-199007

main52151-95709-25iCM30,40,YM30,40..FXV198909-198910

main52151-95709-33iCM30,40,YM30,40..GXL198906-199002

main52151-95709-43iCM30,40,KM30,YM30,40..GXL,SCA,SUC198906-199201

SILVER M,148

52191BGROMMET, REAR BUMPER STAY

main52191-95701×2iCM3#,4#,KM3#,YM3#,40198808-199201

9010906066

main90109-06066

9010908160

main90109-08160

9011208059

main90112-08059

9011908576

main90119-08576

9017908123

main90179-08123

9017908167

main90179-08167

9166560830

main91665-60830

12 parts on this diagram · 2 diagrams in section
