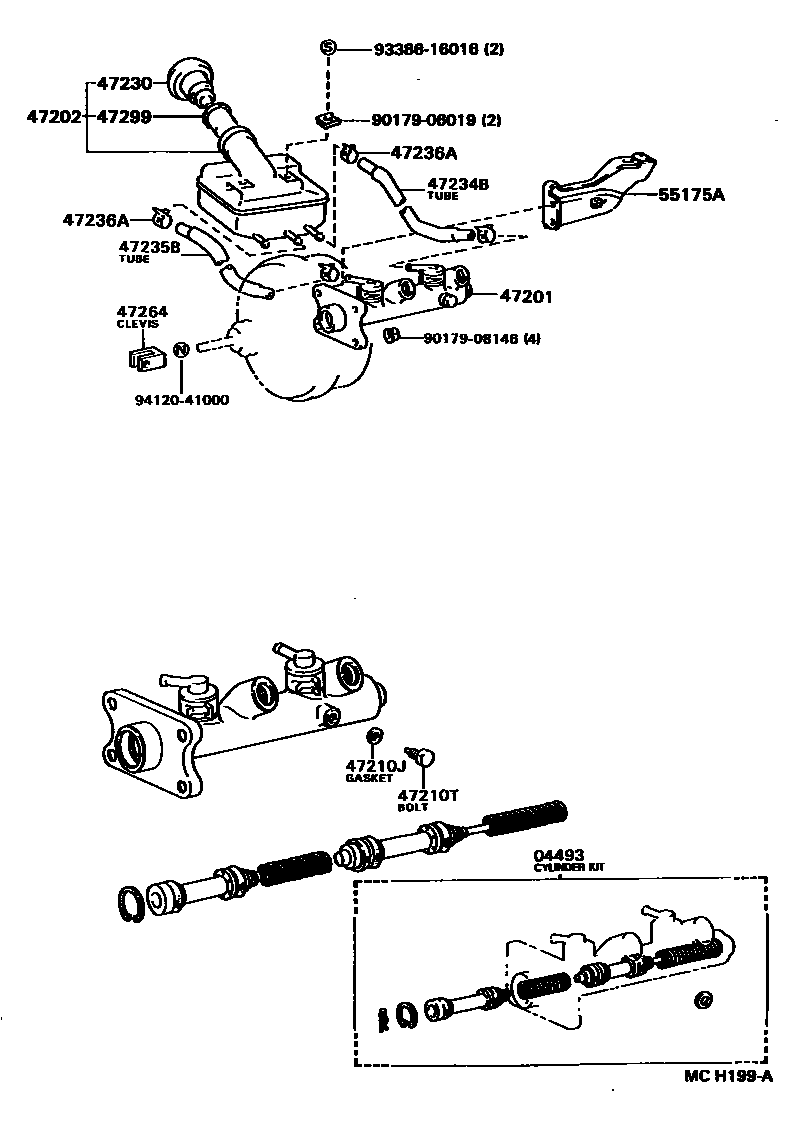

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-27080iCM3#,4#,KM3#,YM3#,40198808-199201

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-27220iCM3#,4#,KM3#,YM3#,40198808-199201

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28100iCM3#,4#,KM30,31,36,YM3#,40..5F,5H198808-199201

main47220-28110iCM3#,40,KM3#,YM3#,40..3FC,4FC,4H198808-199201

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCM3#,4#,KM3#,YM3#,40198808-199201

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iCM3#,4#,KM3#,YM3#,40198808-199201

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28010iCM3#,4#,KM3#,YM3#,40198808-199201

47234BTUBE, RESERVOIR, NO.1

main47234-27120iCM3#,4#,KM3#,YM3#,40198808-199201

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-27080iCM3#,4#,KM3#,YM3#,40198808-199201

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16002iCM3#,4#,KM3#,YM3#,40198808-199201

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iCM3#,4#,KM3#,YM3#,40198808-199201

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iCM3#,4#,KM3#,YM3#,40198808-199201

55175ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-95710iCM3#,4#,KM3#,YM3#,40198808-199201

sub55175-27010

9017906019

main90179-06019

9017908146

main90179-08146

9338616016

main93386-16016

9412041000

main94120-41000

16 parts on this diagram · 1 diagram in section
