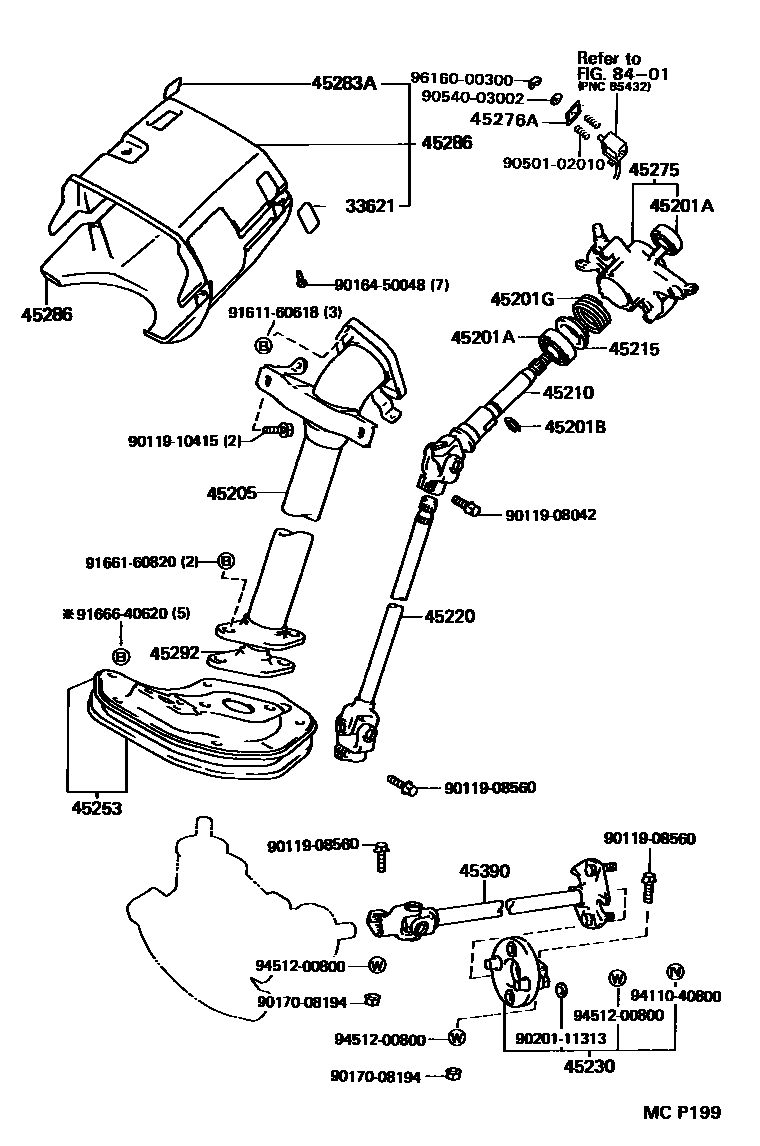

STEERING COLUMN & SHAFT

0001 1 0002 1W(TILT STEERING) 0003 1W(TILT & TEMS) 0004 1W(TILT STEERING) 0005 1W(TILT & TEMS) 0006 1 0007 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36020iKM30,36..5H199008-199201

main33621-36040iKM30,35,36..4H198808-199008

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iCM3#,4#,KM3#,YM3#,40198808-199201

main90363-28001iCM3#,4#,KM3#,YM3#,40198808-199201

main90363-30007iCM30,40,YM30,40..FXV198808-199201

CTR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCM3#,4#,KM3#,YM3#,40198808-199201

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-45011iCM3#,4#,KM3#,YM3#,40198808-199201

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-27090iCM3#,4#,KM3#,YM31,40..DLX,LD,SSW,SUP,SW198808-199201

main45205-27100iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

main45205-27140iCM30,40,YM30,40..FXV198808-199201

45210SHAFT ASSY, STEERING MAIN

main45210-22050iCM3#,4#,KM3#,YM3#,40198808-199201

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iCM3#,4#,KM3#,YM3#,40198808-199201

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-27100iCM30,40,YM30,40..FXV198808-199201

main45220-27110iCM3#,4#,KM3#,YM3#,40198808-199201

45230COUPLING ASSY, FLEXIBLE

main45230-27080iCM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW198808-199201

main45230-27090iCM3#,KM30,31,36,YM31..DLX,LD,SSW,SUP,SW; CM30,KM30,YM30..FXV,GXL,SCA,SUC198808-199201

main45230-27100iCM4#,YM40198808-199201

45253COVER, STEERING COLUMN HOLE

main45253-27080iKM30,35,36..4H,5H198808-199201

45275BRACKET, STEERING COLUMN, UPPER

main45280-27092iKM30,35,36..4H,5H198808-199201

main45280-27101iCM3#,4#,KM31,36,YM31,40..5F..(DLX,LD,SSW,SUP,SW)198808-199201

main45280-27111iCM30,40,KM30,YM30,40..5F..(FXV,GXL,SCA,SUC)198808-199201

main45280-27160iCM31,36,40,KM30,31,36,YM31,40..ATM..(DLX,SSW,SUP,SW)198808-199201

main45280-27170iCM30,40,KM30,YM30,40..ATM..(FXV,GXL,SCA,SUC)198808-199201

45276ASTOPPER, KEY INTERLOCK RELEASE BUTTON

main45276-28010iCM3#,40,KM30,31,36,YM3#,40..ATM198808-199201

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iCM3#,4#,KM3#,YM3#,40198808-199201

45286COVER, STEERING COLUMN

main45286-27161-03iKM30,35,36..4H198808-199008

main45286-27171-13iCM3#,4#,KM30,31,36,YM31,40..(3FC,4FC,5F)..(DLX,LD,SSW,SUP,SW)198808-199201

main45286-27181-03iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

main45286-27181-06iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

main45286-27232-03iKM30,36..5H199008-199201

main45287-27070-13iKM30,35,36..4H,5H198808-199201

main45287-27080-13iCM3#,4#,KM30,31,36,YM31,40..(3FC,4FC,5F)..(DLX,LD,SSW,SUP,SW)198808-199201

main45287-27090-03iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

main45287-27090-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198808-199201

45292SEAL, MAIN SHAFT LOWER DUST

main45292-27010iCM3#,4#,KM3#,YM3#,40198808-199201

main45292-27030iCM30,40,YM30,40..FXV198808-199201

45390SHAFT ASSY, STEERING TORQUE

main45390-27060iCM3#,KM3#,YM31..DLX,LD,SSW,SUP,SW198808-199201

main45390-27070iCM3#,KM30,31,36,YM31..DLX,LD,SSW,SUP,SW; CM30,KM30,YM30..FXV,GXL,SCA,SUC198808-199201

main45390-27080iCM4#,YM40198808-199201

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908042

main90119-08042

9011908560

main90119-08560

9011910415

main90119-10415

9016450048

main90164-50048

9017008194

main90170-08194

9020111313

main90201-11313

9050102010

main90501-02010

9054003002

main90540-03002

9161160618

main91611-60618

9166160820

main91661-60820

9166640620

main91666-40620

9411040800

main94110-40800

9451200800

main94512-00800

9616000300

main96160-00300

31 parts on this diagram · 7 diagrams in section
