TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

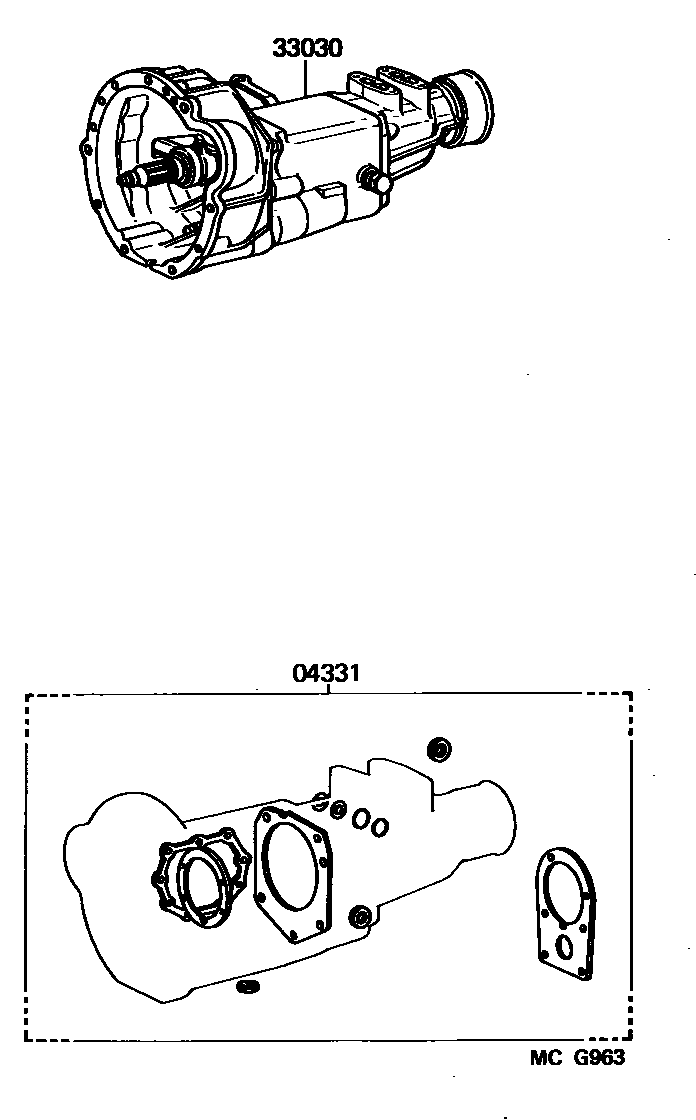

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-35091i198808-199008

main04331-35170i198808-199201

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-27560i198808-199009

main33030-27580i198808-199009

main33030-27720i198808-199005

main33030-27721i199005-199008

main33030-27740i198808-199005

main33030-27741i199005-199008

main33030-27750i198808-199008

main33030-27800i198808-199008

main33030-27810i198808-199008

main33030-2K120i199109-199201

main33110-27908i199009-199201

main33110-27909i199009-199201

main33110-27912i198808-199008

main33110-27913i198808-199201

main33110-27915i198808-199201

main33110-27916i198808-199201

main33110-27919i199008-199201

main33110-27920i199008-199201

main33110-27921i199008-199201

main33110-2K900i199008-199201

main33110-2K901i199008-199201

main33110-2K902i199008-199201

main33110-2K903i199008-199201

2 parts on this diagram · 2 diagrams in section
