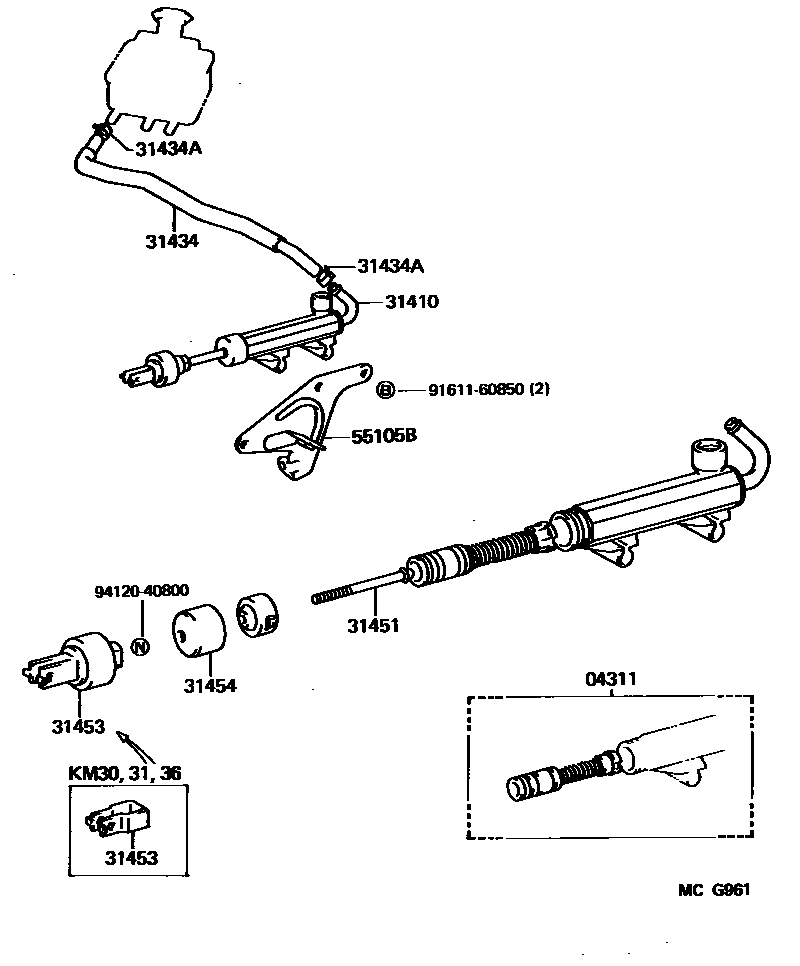

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-27010iCM3#,4#,KM30,31,36,YM3#,40..5F,5H198808-199201

31410CYLINDER ASSY, CLUTCH MASTER

main31420-27052iKM30,31,36..5F,5H198808-199201

main31420-27072iCM3#,4#,YM3#,40..5F198808-199201

31434TUBE, CLUTCH RESERVOIR

main31434-27040iCM3#,4#,KM30,31,36,YM3#,40..5F,5H198808-199201

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800×2iCM3#,4#,KM30,31,36,YM3#,40..5F,5H198808-199201

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-27010iKM30,31,36..5F,5H198808-199201

main31451-27020iCM3#,4#,YM3#,40..5F198808-199201

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-27010iCM3#,4#,YM3#,40..5F198808-199201

main31453-27010iKM30,31,36..5F,5H198808-199201

31454BOOT, CLUTCH MASTER CYLINDER

main31454-27010iCM3#,4#,KM30,31,36,YM3#,40..5F,5H198808-199201

55105BSUPPORT SUB-ASSY, CLUTCH MASTER CYLINDER

main55105-95707iCM3#,4#,KM30,31,36,YM3#,40..5F,5H198808-199201

9161160850

main91611-60850

9412040800

main94120-40800

10 parts on this diagram · 1 diagram in section
