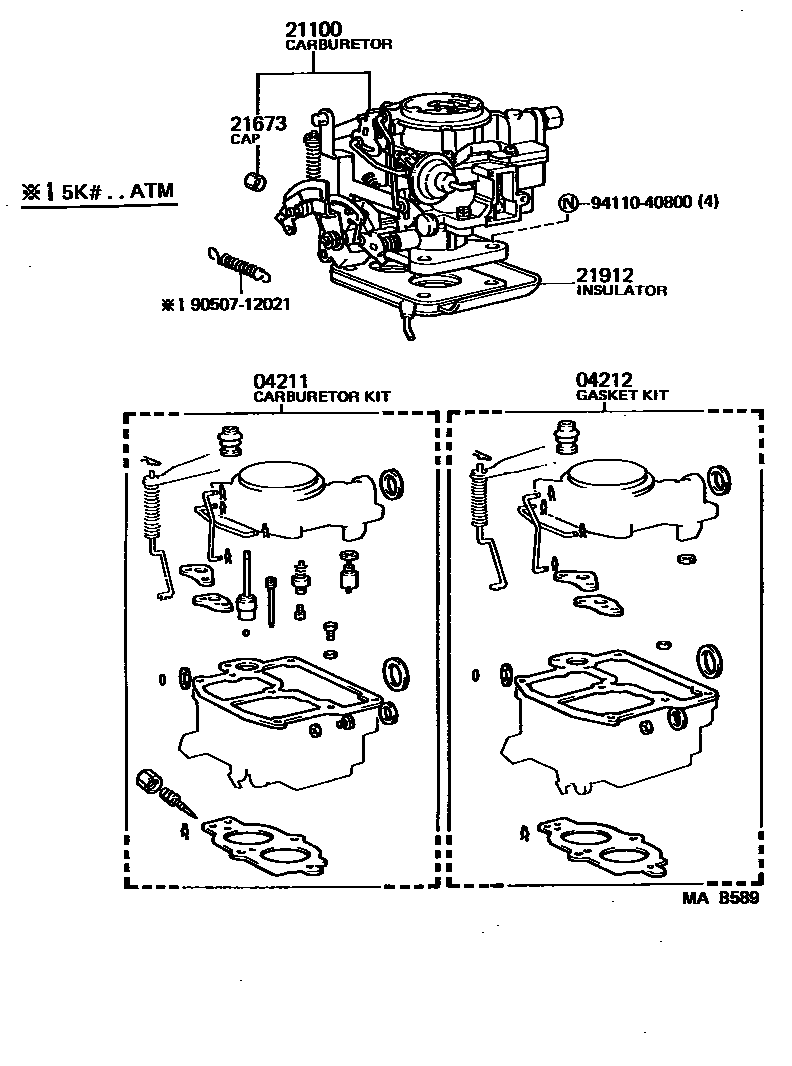

CARBURETOR ASSEMBLY

0001 1 0002 1

04211CARBURETOR KIT

main04211-13271i4KJ..KM35199001-199008

main04211-13340i5KU..KM30198808-199001

main04211-13341i5KU..KM30199001-199010

main04211-13342i5KU..KM30199010-199201

main04211-13351i5KJ..KM31,36198808-199001

main04211-13353i5KJ..KM31,36199001-199008

main04211-13490i5KJ..KM31,36199008-199201

main04211-72220i2YU,3YU..YM30,40198808-199003

main04211-72290i2YJ..YM31199008-199201

04212GASKET KIT, CARBURETOR

main04212-13060i4KJ..KM35198808-199001

main04212-13061i4KJ..KM35199001-199008

main04212-13070i5K#..KM30,31,36198808-199001

main04212-13071i5K#..KM30,31,36199001-199201

main04212-72041i2YJ..YM31199008-199201

main04212-72050i2YU,3YU..YM30,40198808-198910

main04212-73100i2YU,3YU..YM30,40198910-199003

main04212-73101i2YU,3YU..YM30,40199003-199201

21100CARBURETOR ASSY

main21100-13391i4KJ..KM35198808-199008

main21100-13530i5KU..KM30..MTM198808-199201

main21100-13540i5KU..KM30..3FC198808-199201

main21100-13550i5KJ..KM31,36..MTM198808-199008

main21100-13560i5KJ..KM31,36..3FC198808-199008

main21100-13730i5KJ..KM31,36..MTM199008-199201

main21100-13740i5KJ..KM31,36..3FC199008-199201

main21100-72301i2YU,3YU..YM30,40198808-199201

main21100-72370i2YJ..YM31199008-199201

21673CAP, IDLE LIMIT

main21673-13280i2Y#,3YU..YM3#,40; 4KJ,5K#..KM3#198808-199201

21912INSULATOR, CARBURETOR HEAT

main21912-13031i4KJ,5K#..KM3#198808-198912

main21912-13070i4KJ,5K#..KM3#198912-199201

main21912-72010i2YU,3YU..YM30,40198808-198912

main21912-72011i2Y#,3YU..YM3#,40198912-199201

9050712021

main90507-12021

9411040800

main94110-40800

7 parts on this diagram · 2 diagrams in section
