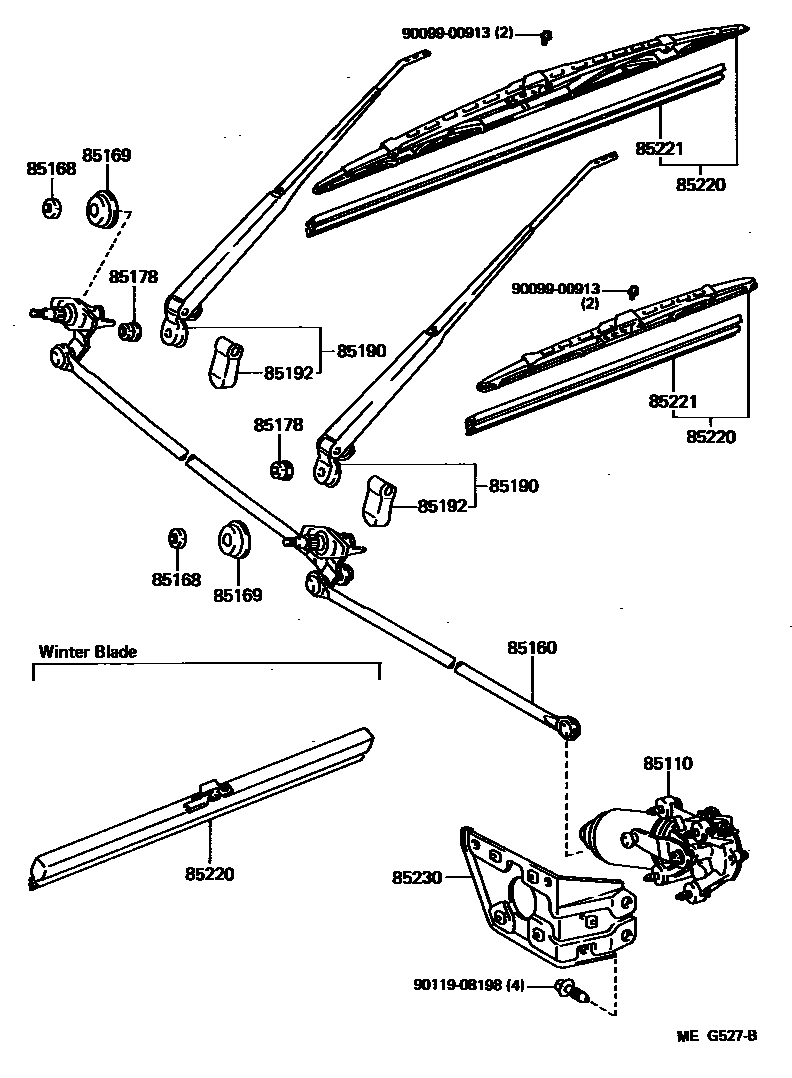

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-95716iCM3#,4#,KM3#,YM30,40198509-198808

main85110-95718iCM3#,4#,KM3#,YM30,40198509-198808

COLD SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85160-95707iCM3#,4#,KM3#,YM30,40198509-198808

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700×2iCM3#,4#,KM3#,YM30,40198509-198808

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85179-95701×2iCM3#,4#,KM3#,YM30,40198509-198808

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123×2iCM3#,4#,KM3#,YM30,40198509-198808

85190ARM ASSY, WINDSHIELD WIPER

main85190-95715iCM3#,4#,KM3#,YM30,40198509-198808

DRIVER SIDE

main85210-95705iCM3#,4#,KM3#,YM30,40198509-198808

ASSISTANT SIDE

85192COVER, WINDSHIELD WIPER ARM

main85192-28020×2iCM3#,4#,KM3#,YM30,40198509-198808

85220BLADE ASSY, WINDSHIELD WIPER

main85220-22500iCM3#,4#,KM3#,YM30,40198509-198808

LH

main85220-32420iCM3#,4#,KM3#,YM30,40198509-198808

RH

main85220-95712iCM3#,4#,KM3#,YM30,40198509-198808

LH,WINTER BLADE

main85220-95713iCM3#,4#,KM3#,YM30,40198509-198808

RH,WINTER BLADE

85221BLADE, WINDSHIELD WIPER

main85221-95703iCM3#,4#,KM3#,YM30,40198509-198808

LH

main85221-95704iCM3#,4#,KM3#,YM30,40198509-198808

RH

85230BRACKET ASSY, WINDSHIELD WIPER

main85269-95700iCM3#,4#,KM3#,YM30,40198509-198808

9009900913

main90099-00913

9011908198

main90119-08198

12 parts on this diagram · 1 diagram in section
