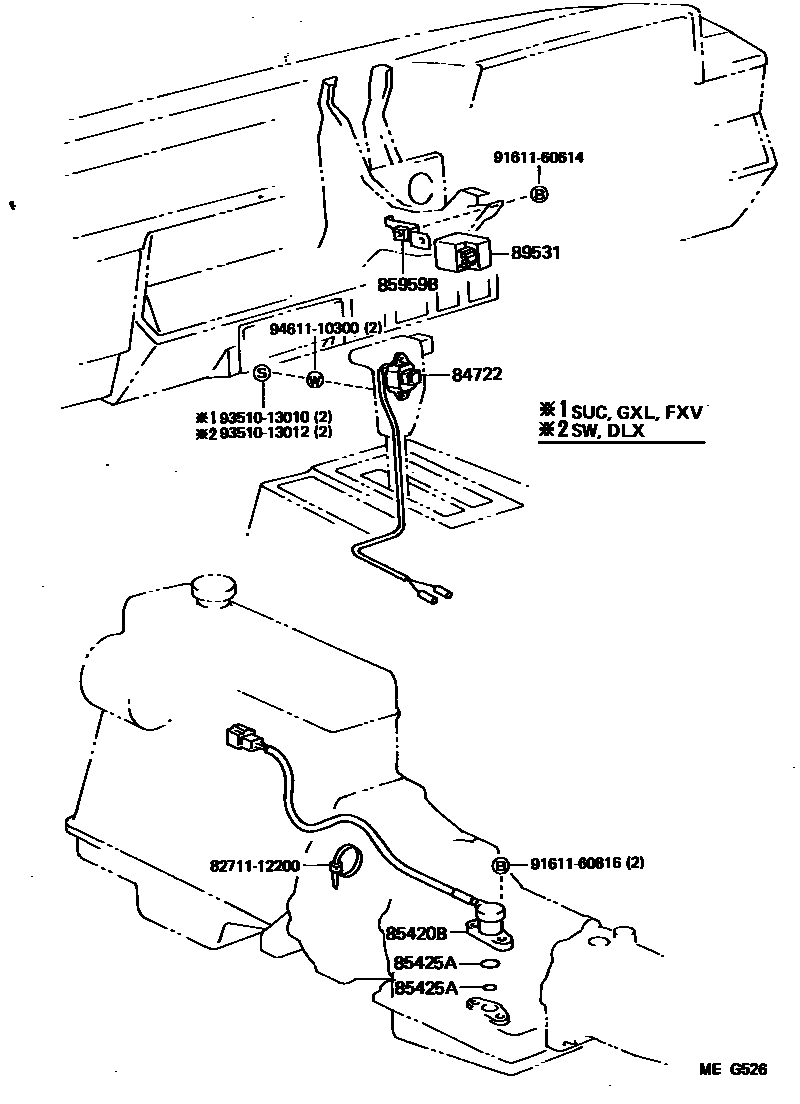

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84722SWITCH, TRANSMISSION CONTROL

main84722-14070-06iCM30,YM30,40..4FC..(FXV,GXL,SUC)198509-198808

BROWN,BROWN,TRIM4#

main84722-14070-24iCM30,YM30..4FC..(GXL,SUC)198509-198808

BLUE,BLUE,TRIM4#,8#

main84722-35010iCM30,36..4FC..(DLX,SW)198509-198808

85420BSOLENOID ASSY, TRANSMISSION

main85420-12050iCM30,36..4FC198509-198601

main85420-27010iYM30,40..4FC198509-198808

main85420-27020iCM30,36..4FC198601-198808

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-11001iCM30,36,YM30,40..4FC198509-198808

ID=11

main90301-23001iCM30,36,YM30,40..4FC198509-198808

ID=23

85959BHOLDER, RELAY

main85959-27030iCM30,36,YM30..4FC198509-198808

89531RELAY, TRANSMISSION CONTROL

main89531-14050iCM30,36,YM30..4FC198509-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9161160614

main91611-60614

9161160816

main91611-60816

9351013010

main93510-13010

9351013012

main93510-13012

9461110300

main94611-10300

11 parts on this diagram · 1 diagram in section
