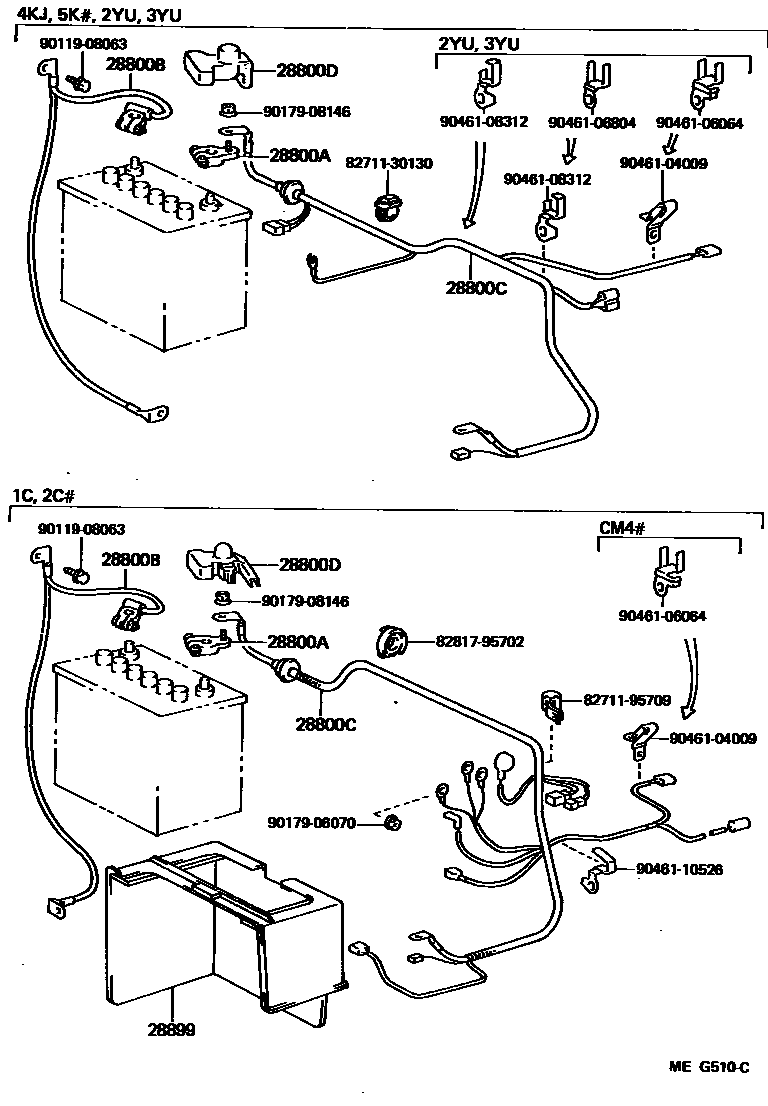

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05004i4KJ,5K#,2YU,3YU..KM3#,YM30,40198509-198610

main90982-05005i1C,2C#..CM3#,4#198509-198610

main90982-05028i4KJ,5K#,2YU,3YU..KM3#,YM30,40198610-198808

main90982-05030i1C,2C#..CM3#,4#198610-198808

28800BCABLE, BATTERY TO GROUND

main82123-95700i4KJ,5K#,2YU,3YU..KM3#,YM30,40198509-198808

main82123-95701i1C,2C#..CM3#,4#198509-198808

main82123-95703i2C#..CM30,36..4FC198708-198808

COLD SPEC

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-95703i1C,2C..CM30,35..5F198509-198608

main82122-95704i2C..CM41198510-198608

main82122-95705i2C..CM30,36..4FC198509-198608

main82122-95706i2CT..CM30..5F198509-198608

main82122-95707i2CT..CM40198510-198608

main82122-95708i2CT..CM30..4FC198509-198608

main82122-95709i5KU..KM30..4F,4H198509-198808

main82122-95710i5KU..KM30..5F198509-198808

main82122-95711i5KU..KM30..3FC198509-198808

main82122-95712i5KJ..KM36..DLX198509-198808

main82122-95713i5KJ..KM31,36..5F198509-198808

main82122-95714i5KJ..KM31..3FC198509-198808

main82122-95715i2YU..YM30..5F198509-198808

main82122-95716i3YU..YM40..5F198510-198808

main82122-95717i2YU..YM30..4FC198509-198808

main82122-95718i3YU..YM40..4FC198510-198808

main82122-95719i4KJ..KM35198509-198808

main82122-95720i2C..CM30..4FC; 2C..CM36..SRF198509-198608

COLD SPEC

main82122-95721i2CT..CM30..4FC198509-198608

COLD SPEC

main82122-95731i1C,2C..CM30,35..5F198608-198708

main82122-95732i2C..CM30,36..4FC198608-198708

main82122-95733i2CT..CM30..5F198608-198708

main82122-95734i2CT..CM30..4FC198608-198708

main82122-95735i2CT..CM40198608-198708

main82122-95736i2C..CM41198608-198708

main82122-95739i2C..CM30..4FC; 2C..CM36198608-198708

COLD SPEC

main82122-95740i2CT..CM30..4FC198608-198708

COLD SPEC

main82122-95744i2C..CM30..4FC; 2C..CM36198708-198808

COLD SPEC

main82122-95745i2CT..CM30..4FC198708-198808

COLD SPEC

main82122-95751i1C,2C..CM30,35..5F198708-198808

main82122-95752i2C..CM30,36..4FC198708-198808

main82122-95753i2CT..CM30..5F198708-198808

main82122-95754i2CT..CM30..4FC198708-198808

main82122-95755i2CT..CM40198708-198808

main82122-95756i2C..CM41198708-198808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30080i4KJ,5K#,2YU..KM3#,YM30198509-198512

main82821-95702i1C,2C#..CM3#,4#198509-198808

main82821-95703i4KJ,5K#,2YU,3YU..KM3#,YM30,40198512-198808

28899INSULATOR, BATTERY

main28899-42040i1C,2C#..CM3#,4#198710-198808

8271130130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30130

8271195709WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95709

8281795702PROTECTOR, WIRING HARNESS, NO.1

main82817-95702

9011908063

main90119-08063

9017906070

main90179-06070

9017908146

main90179-08146

9046104009

main90461-04009

9046106064

main90461-06064

9046106804

main90461-06804

9046108312

main90461-08312

9046110526

main90461-10526

16 parts on this diagram · 1 diagram in section
