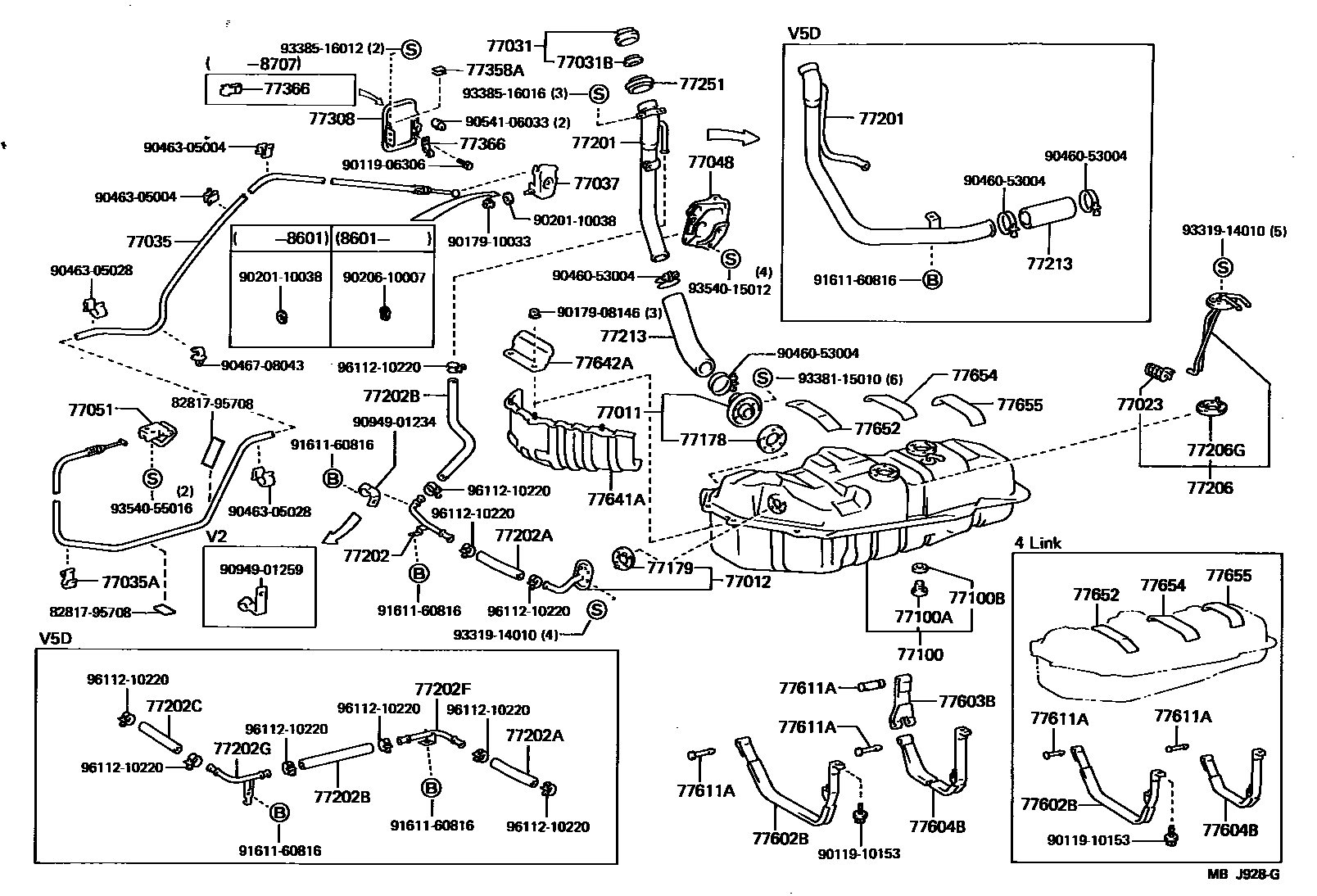

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-27010iCM3#,4#,KM3#,YM30,40198509-198808

sub77011-26020

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-27060iCM3#,KM3#,YM30198509-198608

main77012-27061iCM3#,KM3#,YM30198608-198808

main77012-27070iCM4#,YM40198510-198808

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iKM3#,YM30,40198509-198808

main77023-32010iCM3#,4#198509-198808

77031CAP ASSY, FUEL TANK

main77310-12100iKM3#,YM30,40198509-198808

main77310-35061iCM3#,4#198509-198808

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iCM3#,4#,KM3#,YM30,40198509-198808

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-95700iCM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D198509-198808

main77035-95701iCM35,36,41,KM31,35,36..V5D198509-198808

sub77035-27020

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main69749-12010iCM3#,4#,KM3#,YM30,40198509-198808

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-95700iCM3#,4#,KM3#,YM30,40198509-198808

77048SEAL SUB-ASSY, FUEL INLET PIPE, UPPER

main77048-95700iCM35,36,41,KM31,35,36..V5D198509-198808

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-95700-01iCM3#,4#,KM3#,YM30,40198509-198808

BLACK

sub77051-95700

77100TANK ASSY, FUEL

main77001-27140iCM35,36..V5D198509-198804

sub77001-27310

main77001-27150iYM40198510-198804

sub77001-27350

main77001-27160iCM40;CM41..V4D198510-198804

sub77001-27360

main77001-27170iCM41..V5D198510-198804

sub77001-27370

main77001-27190iKM30,YM30;KM31,35,36..V4D198509-198804

sub77001-27320

main77001-27200iCM30;CM35,36..V4D198509-198804

sub77001-27330

main77001-27210iKM31,35,36..V5D198509-198804

sub77001-27340

main77001-27310iCM35,36..V5D198804-198808

main77001-27320iKM30,YM30;KM31,35,36..V4D198804-198808

main77001-27330iCM30;CM35,36..V4D198804-198808

main77001-27340iKM31,35,36..V5D198804-198808

main77001-27350iYM40198804-198808

main77001-27360iCM40;CM41..V4D198804-198808

main77001-27370iCM41..V5D198804-198808

77100APLUG(FOR FUEL TANK)

main90105-12116iCM3#,4#,KM3#,YM30,40198804-198808

main90341-20004iCM3#,4#,KM3#,YM30,40198509-198804

77100BGASKET(FOR FUEL TANK)

main90430-12245iCM3#,4#,KM3#,YM30,40198804-198808

main90430-20007iCM3#,4#,KM3#,YM30,40198509-198804

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-13020iCM3#,4#,KM3#,YM30,40198509-198808

77179RETAINER, FUEL TANK MOUNTING, FRONT

main77179-14030iCM3#,4#,KM3#,YM30,40198509-198808

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-27110iCM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D198509-198808

main77201-27120iCM41,KM31..V5D198509-198608

sub77201-27190

sub77201-27200

main77201-27150iCM35,KM35,36..V5D198509-198608

sub77201-27210

main77201-27190iCM35,36,41,KM31,35,36..V1..V5D198608-198808

main77201-27210iCM35,KM35,36..V5D..MRF198608-198808

77202TUBE SUB-ASSY, BREATHER

main77203-27120iCM30,36,KM30,YM30;CM35,KM31,35,36..V4D198509-198510

main77203-27160iCM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D198510-198808

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77259-27140iCM3#,KM3#,YM30198509-198808

main77259-27150iCM4#,YM40198510-198808

77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)

main77259-27160iCM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D198509-198808

main90445-22013iCM35,36,41,KM31,35,36..V5D198509-198808

sub90445-22024

77202CHOSE, FUEL, NO.3 (FOR BREATHER TUBE)

main90445-22015iCM35,36,41,KM31,35,36..V5D198509-198808

sub90445-22002

77202FTUBE, FUEL, NO.1 (FOR BREATHER TUBE)

main77203-27130iCM35,KM31,35,36..V5D198509-198808

main77203-27170iCM35,36,41,KM31,35,36..V1..V5D198510-198808

77202GTUBE, FUEL, NO.2 (FOR BREATHER TUBE)

main77203-27140iCM35,36,41,KM31,35,36..V5D198509-198808

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-27100iKM3#,YM30198509-198808

main77017-27110iCM3#198509-198808

main77017-27130iYM40198510-198808

main77017-27140iCM4#198510-198808

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iCM3#,4#,KM3#,YM30,40198509-198808

77213HOSE, FUEL TANK SUB INLET

main77259-27120iCM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D198509-198808

main77259-27130iCM35,36,41,KM31,35,36..V5D198509-198808

77251SHIELD, FUEL TANK, INLET, NO.1

main77251-10010iCM3#,4#,KM3#,YM30,40198509-198808

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-95700iCM3#,4#,KM3#,YM30,40198509-198707

main77305-95701iCM3#,4#,KM3#,YM30,40198707-198808

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-87001iCM3#,4#,KM3#,YM30,40198509-198808

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-95700iCM3#,4#,KM3#,YM30,40198509-198701

sub77360-95701

main77360-95701iCM3#,4#,KM3#,YM30,40198701-198707

sub77360-95702

main77366-95702iCM3#,4#,KM3#,YM30,40198707-198808

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-27040iCM35,KM35,36..V1;CM30,36,KM30,31,YM30198509-198511

main77602-27041iKM30..3FC198511-198808

main77602-27050iCM35,KM35,36..MRF198509-198808

main77602-27060iCM4#,YM40198510-198808

main77602-27070iKM35,36..V1198510-198511

main77602-27071iKM30,31..MTM198511-198808

77603BBAND SUB-ASSY, FUEL TANK, NO.2 RH

main77614-27010iCM35,36,KM35,36198509-198808

77604BBAND SUB-ASSY, FUEL TANK, NO.2 LH

main77604-27020iCM30,KM30,31,YM30198509-198808

main77604-27030iCM35,36,KM35,36198509-198808

main77604-27040iCM4#,YM40198510-198808

77611APIN (FOR FUEL TANK BAND)

main77653-27010iCM35,36,KM35,36198509-198808

L=57

main77653-28010iCM3#,4#,KM3#,YM30,40198509-198808

L=73

77641APROTECTOR, FUEL TANK, NO.1

main77641-27010iCM30,KM30,YM30;CM35,36,KM31,35,36..V4D198509-198808

main77641-27020iCM35,36,KM31,35,36..V5D198509-198808

77642APROTECTOR, FUEL TANK, NO.2

main77606-27060iCM3#,4#,KM3#,YM30,40198509-198608

sub77606-27061

main77606-27061iCM3#,4#,KM3#,YM30,40198608-198808

77652CUSHION, FUEL TANK, NO.1

main77651-27120iCM3#,4#,KM3#,YM30,40198509-198808

77654CUSHION, FUEL TANK, NO.2

main77651-27131iCM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40198509-198808

77655CUSHION, FUEL TANK, NO.3

main77651-27150iCM3#,4#,KM3#,YM30,40198509-198808

8281795708PROTECTOR, WIRING HARNESS, NO.1

main82817-95708

9011906306

main90119-06306

9011910153

main90119-10153

9017908146

main90179-08146

9017910033

main90179-10033

9020110038

main90201-10038

9020610007

main90206-10007

9046053004

main90460-53004

9046305004

main90463-05004

9046305028

main90463-05028

9046708043

main90467-08043

9054106033

main90541-06033

9094901234

main90949-01234

9094901259

main90949-01259

9161160816

main91611-60816

9331914010

main93319-14010

9338115010

main93381-15010

9338516012

main93385-16012

9338516016

main93385-16016

9354015012

main93540-15012

9354055016

main93540-55016

9611210220

main96112-10220

60 parts on this diagram · 4 diagrams in section
