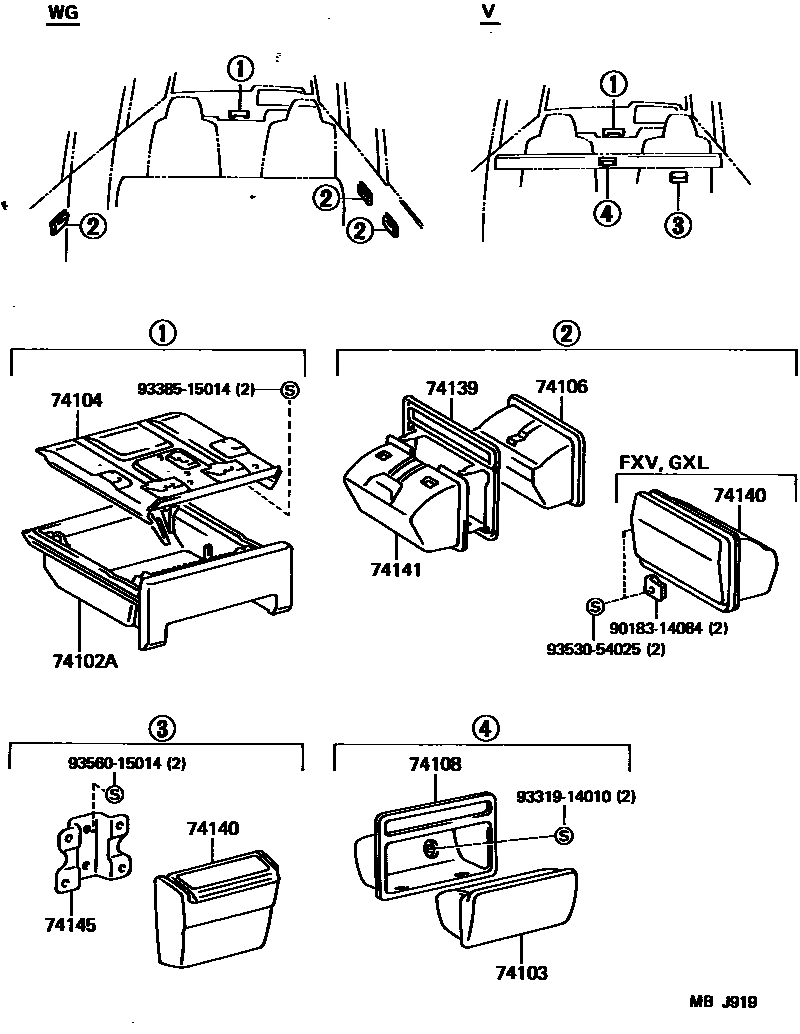

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-95702-04iCM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

main74102-95702-06iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198509-198808

BROWN,BROWN,TRIM4#

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74105-10010-26iKM35,36..DLX..06S198509-198808

BROWN,BROWN,TRIM4#

main74105-10010-34iKM35,36..DLX..06S198509-198808

BLUE,BLUE,TRIM4#,8#

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-95710iCM3#,4#,KM3#,YM40..DLX,SCA,SUC,SUP,SW,XL7198509-198808

main74104-95711iCM30,40,YM30,40..FXV,GXL198509-198808

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74105-10010-26iCM30,KM30..SCA,SUC; CM35,36,41..V4D..05S; KM31,36..V4D..SUP198509-198808

BROWN,BROWN,TRIM4#

main74105-10010-34iCM30,40,KM30,YM40..SW; CM30,KM30,YM40..DLX,SCA,SUC,XL7; CM35,36,41..V4D..05S; KM31,36..V4D..SUP198509-198808

BLUE,BLUE,TRIM4#,8#

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74141-95550iKM35,36..DLX..06S198509-198808

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-10030iCM30,40,KM30,YM40..DLX,SCA,SUC,XL7; CM35,36,41..V4D..05S; KM31,36..V4D..SUP;CM30,40,KM30,YM40..SW198509-198808

74140RECEPTACLE ASSY, ASH(FOR SEAT)

main74130-14020-36×3iCM30,40,YM30,40..FXV,GXL198509-198808

BROWN,BROWN,TRIM4#

main74130-14020-54×3iCM30,40,YM30,40..GXL198509-198808

BLUE,BLUE,TRIM4#,8#

main74130-95J00-04iCM35,36,41..V5D..05S; KM31,36..V5D..SUP198509-198808

BLUE,BLUE,TRIM4#,8#

main74130-95J00-16iCM35,36,41..V5D..05S; KM31,36..V5D..SUP198509-198808

BROWN,BROWN,TRIM4#

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030iCM30,40,KM30,YM40..DLX,SCA,SUC,XL7; CM35,36..V4D..05S; KM31,36..V4D..SUP;CM30,40,KM30,YM40..SW198509-198808

74145PLATE, REAR ASH RECEPTACLE

main74145-90B00iCM35,36,41..V5D..05S; KM31,36..V5D..SUP198509-198808

9018314084

main90183-14084

9331914010

main93319-14010

9338515014

main93385-15014

9353054025

main93530-54025

9356015014

main93560-15014

14 parts on this diagram · 1 diagram in section
