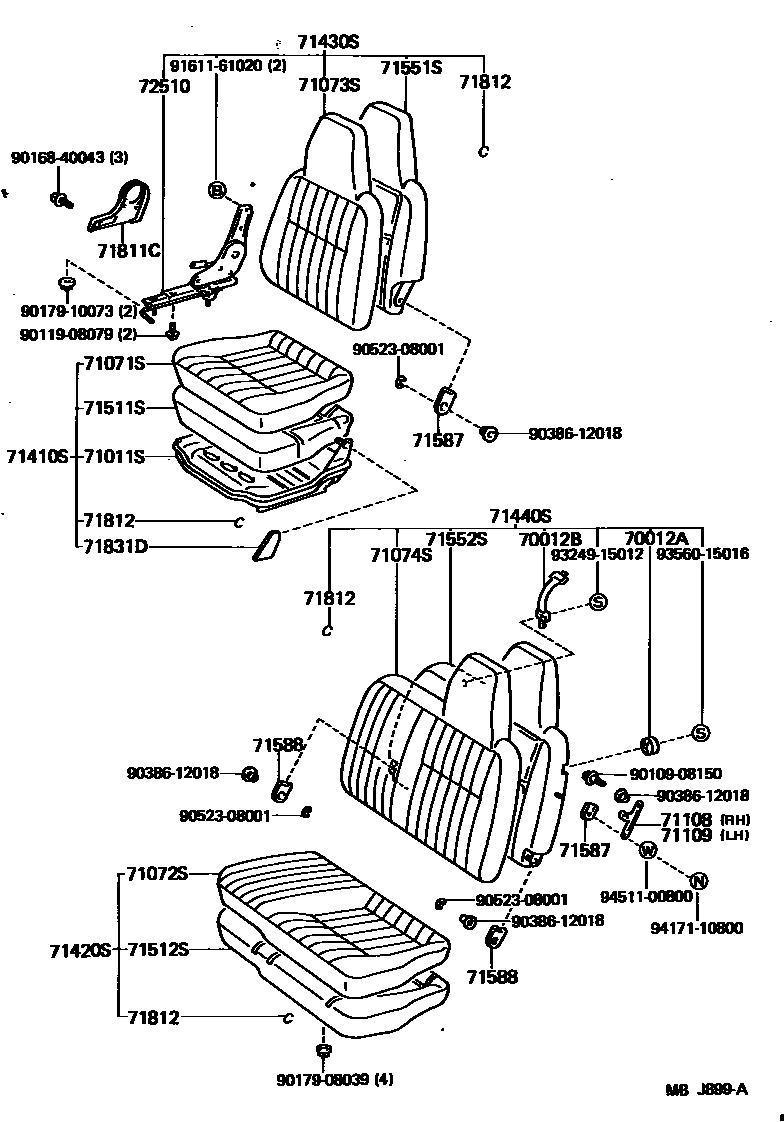

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

70012ACUSHION(FOR NO.1 SEATBACK)

main71268-95702×2iKM35,36..DLX198509-198808

70012BBAND, ENGINE SERVICE HOLE COVER SUPPORT

main71240-95700-04iKM35,36..VSG..DLX198509-198808

BLUE,BLUE,TRIM4#,8#

main71240-95700-06iKM35,36..DLX198509-198808

BROWN,BROWN,TRIM4#

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-95706iCM3#,4#,KM3#,YM30,40198509-198808

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-95715-04iCM30,KM30..SW; CM35,36,41,KM35,36..VSG..DLX198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71071-95715-06iCM35,36,41,KM35,36..DLX198509-198608

VL,BROWN,BROWN,TRIM4#

main71071-95715-14iCM30,40,KM30,YM40..SW; CM35,36,41,KM35,36..VSG..DLX198608-198808

VL,BLUE,DEEP BLUE,TRIM4#,8#

main71071-95715-16iCM35,36,41,KM35,36..DLX198608-198808

VL,BROWN,BROWN,TRIM4#

main71071-95716-04iKM31,36..SUP198509-198603

FB,BLUE,BLUE,TRIM4#,8#

main71071-95716-06iKM31,36..SUP198509-198603

FB,BROWN,BROWN,TRIM4#

main71071-95717-04iCM30,40,KM30,YM40..XL7198509-198601

PF,BLUE,BLUE,TRIM4#,8#

main71071-95718-04iCM30,KM30..SUC198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71071-95718-06iCM30,KM30..SUC198509-198808

FB,BROWN,BROWN,TRIM4#

main71071-95719-04iCM30,40,YM30,40..GXL198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71071-95719-06iCM30,40,YM30,40..GXL198509-198808

FB,BROWN,BROWN,TRIM4#

main71071-95720-06iCM30,40,YM30,40..FXV198509-198608

FB,BROWN,BROWN,TRIM4#

main71071-95724-04iCM30,40,KM30,YM40..XL7198601-198808

PF,BLUE,BLUE,TRIM4#,8#

main71071-95725-04iKM31,36..SUP198603-198808

FB,BLUE,BLUE,TRIM4#,8#

main71071-95725-06iKM31,36..SUP198603-198808

FB,BROWN,BROWN,TRIM4#

main71071-95726-04iCM40,YM40..GXL198610-198808

GXL LIMITED,BLUE,BLUE,TRIM4#,8#

main71071-95730-06iCM30,40,YM30,40..FXV198608-198808

FB,BROWN,BROWN,TRIM4#

main71071-95731-04iKM30..SCA198608-198808

FB,BLUE,BLUE,TRIM4#,8#

main71071-95731-06iKM30..SCA198608-198808

FB,BROWN,BROWN,TRIM4#

main71071-95747-06iCM30,40,YM30,40..FXV198804-198805

(4G3)/(4D2),BROWN,BROWN,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-95716-04iCM30,KM30..(3FC,4FC,5F)..SW; CM35,36,41..VSG198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71072-95716-06iCM35,36,41198509-198608

VL,BROWN,BROWN,TRIM4#

main71072-95716-14iCM30,40,KM30,YM40..(3FC,4FC,5F)..SW; CM35,36,41..VSG198608-198808

VL,BLUE,BLUE,TRIM4#,8#

main71072-95716-16iCM35,36,41198608-198808

VL,BROWN,BROWN,TRIM4#

main71072-95717-04iCM30,KM31,36..(3FC,5F)..(DLX,SUP)198509-198603

FB,BLUE,BLUE,TRIM4#,8#

main71072-95717-06iKM31,36..SUP198509-198603

FB,BROWN,BROWN,TRIM4#

main71072-95718-04iCM30,40,KM30,YM40..XL7198509-198601

PF,BLUE,BLUE,TRIM4#,8#

main71072-95719-04iCM30,KM30..SUC198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71072-95719-06iCM30,KM30..SUC198509-198808

FB,BROWN,BROWN,TRIM4#

main71072-95720-04iCM30,40,YM30,40..GXL198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71072-95720-06iCM30,40,YM30,40..GXL198509-198808

FB,BROWN,BROWN,TRIM4#

main71072-95721-06iCM30,40,YM30,40..FXV198509-198608

FB,BROWN,BROWN,TRIM4#

main71072-95724-04iKM35,36..VSG..DLX198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71072-95724-06iKM35,36..DLX198509-198608

VL,BROWN,BROWN,TRIM4#

main71072-95724-14iKM35,36..VSG..DLX198608-198808

VL,BLUE,BLUE,TRIM4#,8#

main71072-95724-16iKM35,36..DLX198608-198808

VL,BROWN,BROWN,TRIM4#

main71072-95725-04iKM30..4H..SW198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71072-95725-14iKM30..4H..SW198608-198808

VL,BLUE,BLUE,TRIM4#,8#

main71072-95726-04iKM30..DLX198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71072-95734-04iCM30,40,KM30,YM40..XL7198601-198808

PF,BLUE,BLUE,TRIM4#,8#

main71072-95735-04iKM31,36..SUP198603-198808

FB,BLUE,BLUE,TRIM4#,8#

main71072-95735-06iKM31,36..SUP198603-198808

FB,BROWN,BROWN,TRIM4#

main71072-95736-04iCM30,40,YM30,40..GXL198704-198808

GXL LIMITED,BLUE,BLUE,TRIM4#,8#

main71072-95744-06iCM30,40,YM30,40..FXV198608-198808

FB,BROWN,BROWN,TRIM4#

main71072-95745-04iKM30..SCA198608-198808

FB,BLUE,BLUE,TRIM4#,8#

main71072-95745-06iKM30..SCA198608-198808

FB,BROWN,BROWN,TRIM4#

main71072-95774-06iCM30,40,YM30,40..FXV198804-198805

(4G3)/(4D2),BROWN,BROWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-95713-04iCM30,KM30..SW; CM35,36,41,KM35,36..VSG..DLX198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71073-95713-06iCM35,36,41,KM35,36..DLX198509-198608

VL,BROWN,BROWN,TRIM4#

main71073-95713-14iCM30,40,KM30,YM40..SW; CM35,36,41,KM35,36..VSG..DLX198608-198808

VL,BLUE,BLUE,TRIM4#,8#

main71073-95713-16iCM35,36,41,KM35,36..DLX; CM35,KM35..VSP198608-198808

COOLING VAN,BROWN,BROWN,TRIM4#; VL,BROWN,BROWN,TRIM4#

main71073-95714-04iCM30,KM30..DLX198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71073-95714-06iKM31,36..SUP198509-198603

FB,BROWN,BROWN,TRIM4#

main71073-95715-04iCM30,40,KM30,YM40..XL7198509-198601

PF,BLUE,BLUE,TRIM4#,8#

main71073-95718-04iCM30,KM30..SUC198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71073-95718-06iCM30,KM30..SUC198509-198808

FB,BROWN,BROWN,TRIM4#

main71073-95719-04iCM30,40,YM30,40..GXL198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71073-95719-06iCM30,40,YM30,40..GXL198509-198808

FB,BROWN,BROWN,TRIM4#

main71073-95720-06iCM30,40,YM30,40..FXV198509-198608

FB,BROWN,BROWN,TRIM4#

main71073-95726-04iCM30,40,KM30,YM40..XL7198601-198808

PF,BLUE,BLUE,TRIM4#,8#

main71073-95727-04iKM31,36..SUP198603-198808

FB,BLUE,BLUE,TRIM4#,8#

main71073-95727-06iKM31,36..SUP198603-198808

FB,BROWN,BROWN,TRIM4#

main71073-95728-04iCM40,YM40..GXL198610-198808

GXL LIMITED,BLUE,BLUE,TRIM4#,8#

main71073-95733-06iCM30,40,YM30,40..FXV198608-198808

FB,BROWN,BROWN,TRIM4#

main71073-95734-04iKM30..SCA198608-198808

FB,BLUE,BLUE,TRIM4#,8#

main71073-95734-06iKM30..SCA198608-198808

FB,BROWN,BROWN,TRIM4#

main71073-95749-06iCM30,40,YM30,40..FXV198804-198805

(4G3)/(4D2),BROWN,BROWN,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-95714-04iCM30,KM30..SW;CM35,36,41..VSG198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71074-95714-06iCM35,36,41198509-198608

VL,BROWN,BROWN,TRIM4#

main71074-95714-14iCM35,36,41..VSG;CM30,40,KM30,YM40..SW198608-198808

VL,BLUE,BLUE,TRIM4#,8#

main71074-95714-16iCM35,36,41198608-198808

VL,BROWN,BROWN,TRIM4#

main71074-95715-04iCM30,KM30..DLX198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71074-95715-06iKM31,36..SUP198509-198603

FB,BROWN,BROWN,TRIM4#

main71074-95716-04iCM30,40,KM30,YM40..XL7198509-198601

PF,BLUE,BLUE,TRIM4#,8#

main71074-95717-04iCM30,KM30..SUC198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71074-95717-06iCM30,KM30..SUC198509-198808

FB,BROWN,BROWN,TRIM4#

main71074-95718-04iCM30,40,YM30,40..GXL198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71074-95718-06iCM30,40,YM30,40..GXL198509-198808

FB,BROWN,BROWN,TRIM4#

main71074-95719-06iCM30,40,YM30,40..FXV198509-198608

FB,BROWN,BROWN,TRIM4#

main71074-95722-04iKM35,36..VSG..DLX198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71074-95722-06iKM35,36..DLX198509-198608

VL,BROWN,BROWN,TRIM4#

main71074-95722-14iKM35,36..VSG..DLX198608-198808

VL,BLUE,BLUE,TRIM4#,8#

main71074-95722-16iKM35,36..DLX198608-198808

VL,BROWN,BROWN,TRIM4#

main71074-95733-04iCM30,40,KM30,YM40..XL7198601-198808

PF,BLUE,BLUE,TRIM4#,8#

main71074-95734-04iKM31,36..SUP198603-198808

FB,BLUE,BLUE,TRIM4#,8#

main71074-95734-06iKM31,36..SUP198603-198808

FB,BROWN,BROWN,TRIM4#

main71074-95735-04iCM30,40,YM30,40..GXL198704-198808

GXL LIMITED,BLUE,BROWN,TRIM4#,8#

main71074-95740-06iCM30,40,YM30,40..FXV198608-198808

FB,BROWN,BROWN,TRIM4#

main71074-95741-04iKM30..SCA198608-198808

FB,BLUE,BLUE,TRIM4#,8#

main71074-95741-06iKM30..SCA198608-198808

FB,BROWN,BROWN,TRIM4#

main71074-95757-06iCM30,40,YM30,40..FXV198804-198805

(4G3)/(4D2),BROWN,BROWN,TRIM4#

71108HINGE SUB-ASSY, FRONT SEATBACK, UPPER RH

main71183-95701iKM35,36..DLX198509-198808

71109HINGE SUB-ASSY, FRONT SEATBACK, UPPER LH

main71184-95701iKM35,36..DLX198509-198808

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-95767-04iCM30,KM30..SW; CM35,36,41,KM35,36..VSG..DLX198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71410-95767-06iCM35,36,41,KM35,36..DLX198509-198608

VL,BROWN,BROWN,TRIM4#

main71410-95767-14iCM30,40,KM30,YM40..SW; CM35,36,41,KM35,36..VSG..DLX198608-198808

VL,BLUE,DEEP BLUE,TRIM4#,8#

main71410-95767-16iCM35,36,41,KM35,36..DLX198608-198808

VL,BROWN,BROWN,TRIM4#

main71410-95768-04iCM30,KM30..DLX198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71410-95768-06iKM31,36..SUP198509-198603

FB,BROWN,BROWN,TRIM4#

main71410-95769-04iCM30,40,KM30,YM40..XL7198509-198601

PF,BLUE,BLUE,TRIM4#,8#

main71410-95770-04iCM30,KM30..SUC198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71410-95770-06iCM30,KM30..SUC198509-198808

FB,BROWN,BROWN,TRIM4#

main71410-95771-04iCM30,40,YM30,40..GXL198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71410-95771-06iCM30,40,YM30,40..GXL198509-198808

FB,BROWN,BROWN,TRIM4#

main71410-95772-06iCM30,40,YM30,40..FXV198509-198608

FB,BROWN,BROWN,TRIM4#

main71410-95776-04iCM30,40,KM30,YM40..XL7198601-198808

PF,BLUE,BLUE,TRIM4#,8#

main71410-95777-04iKM31,36..SUP198603-198808

FB,BLUE,BLUE,TRIM4#,8#

main71410-95777-06iKM31,36..SUP198603-198808

FB,BROWN,BROWN,TRIM4#

main71410-95782-06iCM30,40,YM30,40..FXV198608-198808

FB,BROWN,BROWN,TRIM4#

main71410-95783-04iKM30..SCA198608-198808

FB,BLUE,BLUE,TRIM4#,8#

main71410-95783-06iKM30..SCA198608-198808

FB,BROWN,BROWN,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-95713-04iKM35,36..VSG..DLX198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71420-95713-06iKM35,36..DLX198509-198608

VL,BROWN,BROWN,TRIM4#

main71420-95713-14iKM35,36..VSG..DLX198608-198808

VL,BLUE,BLUE,TRIM4#,8#

main71420-95713-16iKM35,36..DLX198608-198808

VL,BROWN,BROWN,TRIM4#

main71420-95714-04iKM30..4H..SW198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71420-95714-14iKM30..4H..SW198608-198808

VL,BLUE,BLUE,TRIM4#,8#

main71420-95715-04iKM30..DLX198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71420-95718-04iCM35,36,41..VSG198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71420-95718-06iCM35,36,41198509-198608

VL,BROWN,BROWN,TRIM4#

main71420-95718-14iCM35,36,41..VSG198608-198808

VL,BLUE,BLUE,TRIM4#,8#

main71420-95718-16iCM35,36,41198608-198808

VL,BROWN,BROWN,TRIM4#

main71420-95719-04iCM30..DLX198603-198808

FB,BLUE,BLUE,TRIM4#,8#

main71420-95719-06iKM31,36..SUP198509-198603

FB,BROWN,BROWN,TRIM4#

main71420-95720-04iCM30,40,KM30,YM40..XL7198509-198601

PF,BLUE,BLUE,TRIM4#,8#

main71420-95721-04iCM30,KM30..SUC198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71420-95721-06iCM30,KM30..SUC198509-198808

FB,BROWN,BROWN,TRIM4#

main71420-95722-04iCM30,40,YM30,40..GXL198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71420-95722-06iCM30,40,YM30,40..GXL198509-198808

FB,BROWN,BROWN,TRIM4#

main71420-95723-06iCM30,40,YM30,40..FXV198509-198608

FB,BROWN,BROWN,TRIM4#

main71420-95731-04iCM30,40,KM30,YM40..XL7198601-198808

PF,BLUE,BLUE,TRIM4#,8#

main71420-95732-04iKM31,36..SUP198603-198808

FB,BLUE,BLUE,TRIM4#,8#

main71420-95732-06iKM31,36..SUP198603-198808

FB,BROWN,BROWN,TRIM4#

main71420-95741-06iCM30,40,YM30,40..FXV198608-198808

FB,BROWN,BROWN,TRIM4#

main71420-95742-04iKM30..SCA198608-198808

FB,BLUE,BLUE,TRIM4#,8#

main71420-95742-06iKM30..SCA198608-198808

FB,BROWN,BROWN,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-95721-04iCM30,KM30..SW; CM35,36,41,KM35,36..VSG..DLX198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71430-95721-06iCM35,36,41,KM35,36..DLX198509-198608

VL,BROWN,BROWN,TRIM4#

main71430-95721-14iCM30,40,KM30,YM40..SW; CM35,36,41,KM35,36..VSG..DLX198608-198808

VL,BLUE,BLUE,TRIM4#,8#

main71430-95721-16iCM35,36,41,KM35,36..DLX198608-198808

VL,BROWN,BROWN,TRIM4#

main71430-95722-04iCM30,KM30..DLX198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71430-95722-06iKM31,36..SUP198509-198603

FB,BROWN,BROWN,TRIM4#

main71430-95724-04iCM30,40,KM30,YM40..XL7198509-198808

PF,BLUE,BLUE,TRIM4#,8#

main71430-95727-04iCM30,KM30..SUC198509-198608

FB,BLUE,BLUE,TRIM4#,8#

main71430-95727-06iCM30,KM30..SUC198509-198608

FB,BROWN,BROWN,TRIM4#

main71430-95728-04iCM30,40,YM30,40..GXL198509-198608

FB,BLUE,BLUE,TRIM4#,8#

main71430-95728-06iCM30,40,YM30,40..GXL198509-198608

FB,BROWN,BROWN,TRIM4#

main71430-95729-06iCM30,40,YM30,40..FXV198509-198608

FB,BROWN,BROWN,TRIM4#

main71430-95735-04iKM31,36..SUP198603-198808

FB,BLUE,BLUE,TRIM4#,8#

main71430-95735-06iKM31,36..SUP198603-198808

FB,BROWN,BROWN,TRIM4#

main71430-95741-04iCM30,KM30..SUC198608-198808

FB,BLUE,BLUE,TRIM4#,8#

main71430-95741-06iCM30,KM30..SUC198608-198808

FB,BROWN,BROWN,TRIM4#

main71430-95742-04iCM30,40,YM30,40..GXL198608-198808

FB,BLUE,BLUE,TRIM4#,8#

main71430-95742-06iCM30,40,YM30,40..GXL198608-198808

FB,BROWN,BROWN,TRIM4#

main71430-95743-06iCM30,40,YM30,40..FXV198608-198808

FB,BROWN,BROWN,TRIM4#

main71430-95744-04iKM30..SCA198608-198808

FB,BLUE,BLUE,TRIM4#,8#

main71430-95744-06iKM30..SCA198608-198808

FB,BROWN,BROWN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-95721-04iCM30,KM30..SW;CM35,36,41..VSG198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71440-95721-06iCM35,36,41198509-198608

VL,BROWN,BROWN,TRIM4#

main71440-95721-14iCM30,KM30..SW;CM35,36,41..VSG198608-198808

VL,BLUE,BLUE,TRIM4#,8#

main71440-95721-16iCM35,36,41198608-198808

VL,BROWN,BROWN,TRIM4#

main71440-95722-04iKM31,36..SUP198509-198808

FB,BLUE,BLUE,TRIM4#,8#

main71440-95722-06iKM31,36..SUP198509-198603

FB,BROWN,BROWN,TRIM4#

main71440-95723-04iCM30,40,KM30,YM40..XL7198509-198808

PF,BLUE,BLUE,TRIM4#,8#

main71440-95725-04iCM30,KM30..SUC198509-198608

FB,BLUE,BLUE,TRIM4#,8#

main71440-95725-06iCM30,KM30..SUC198509-198608

FB,BROWN,BROWN,TRIM4#

main71440-95726-04iCM30,40,YM30,40..GXL198509-198608

FB,BLUE,BLUE,TRIM4#,8#

main71440-95726-06iCM30,40,YM30,40..GXL198509-198608

FB,BROWN,BROWN,TRIM4#

main71440-95727-06iCM30,40,YM30,40..FXV198509-198608

FB,BROWN,BROWN,TRIM4#

main71440-95730-04iKM35,36..VSG..DLX198509-198608

VL,BLUE,BLUE,TRIM4#,8#

main71440-95730-06iKM35,36..DLX198509-198608

VL,BROWN,BROWN,TRIM4#

main71440-95730-14iKM35,36..VSG..DLX198608-198808

VL,BLUE,BLUE,TRIM4#,8#

main71440-95730-16iKM35,36..DLX198608-198808

VL,BROWN,BROWN,TRIM4#

main71440-95741-04iCM30,KM30..DLX198603-198808

FB,BLUE,BLUE,TRIM4#,8#

main71440-95741-06iKM31,36..SUP198603-198808

FB,BROWN,BROWN,TRIM4#

main71440-95747-04iCM30,KM30..SUC198608-198808

FB,BLUE,BLUE,TRIM4#,8#

main71440-95747-06iCM30,KM30..SUC198608-198808

FB,BROWN,BROWN,TRIM4#

main71440-95748-04iCM30,40,YM30,40..GXL198608-198808

FB,BLUE,BLUE,TRIM4#,8#

main71440-95748-06iCM30,40,YM30,40..GXL198608-198808

FB,BROWN,BROWN,TRIM4#

main71440-95749-06iCM30,40,YM30,40..FXV198608-198808

FB,BROWN,BROWN,TRIM4#

main71440-95750-04iKM30..SCA198608-198808

FB,BLUE,BLUE,TRIM4#,8#

main71440-95750-06iKM30..SCA198608-198808

FB,BROWN,BROWN,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-95701iCM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

main71511-95702iCM30,40,YM30,40..FXV198509-198808

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-95711iKM35,36..DLX198509-198808

main71502-95712iKM30..4H198509-198808

main71512-95702iCM30,40,KM30,YM30,40..(3FC,4F,4FC,5F)..(DLX,GXL,SCA,SUC,SW,XL7); CM35,36,41; KM31,36..SUP198509-198808

main71512-95703iCM30,40,YM30,40..FXV198509-198808

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-95702iCM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7198509-198808

main71505-95703iCM30,40,KM30,YM30,40..GXL,SCA,SUC198509-198808

main71505-95704iCM30,40,YM30,40..FXV198509-198808

main71505-95705iCM35,KM35..VSP198608-198808

COOLING VAN

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71506-95701iKM35,36..DLX198509-198808

main71506-95702iCM30,40,KM30,YM40..DLX,SW,XL7; CM35,36,41; KM31,36..SUP198509-198808

main71506-95703iCM30,40,KM30,YM30,40..GXL,SCA,SUC198509-198808

main71506-95704iCM30,40,YM30,40..FXV198509-198808

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-95700-04×2iKM35,36..VSG..DLX198509-198808

PASSENGER SEAT,BLUE,BLUE,TRIM4#,8#

main71587-95700-06×2iKM35,36..DLX198509-198808

PASSENGER SEAT,BROWN,BROWN,TRIM4#

main71588-95700-04iCM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

DRIVER SEAT,BLUE,BLUE,TRIM4#,8#

main71588-95700-06iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198509-198808

DRIVER SEAT,BROWN,BROWN,TRIM4#

71588PROTECTOR, FRONT SEATBACK EDGE, NO.2

main71588-95700-04iCM30,40,KM30,YM40..DLX,SW; CM35,36,41,KM31,36..VSG..(3FC,4FC,5F); KM35,36..VSG..DLX198509-198808

BLUE,BLUE,TRIM4#,8#; RH,BLUE,BLUE,TRIM4#,8#

main71588-95700-06iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC; CM35,36,41,KM31,36..3FC,4FC,5F; KM35,36..DLX198509-198808

BROWN,BROWN,TRIM4#; RH,BROWN,BROWN,TRIM4#

main71588-95701-04iKM35,36..VSG..DLX198509-198808

LH,BLUE,BLUE,TRIM4#,8#

main71588-95701-06iKM35,36..DLX198509-198808

LH,BROWN,BROWN,TRIM4#

71811CCOVER, RECLINING ADJUSTER, RH

main71801-95700-04iCM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

main71801-95700-06iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198509-198808

BROWN,BROWN,TRIM4#

main71801-95701-06iCM35,KM35..VSP198608-198808

COOLING VAN,BROWN,BROWN,TRIM4#

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main90468-18071iCM3#,4#,KM3#,YM30,40198509-198808

71831DCOVER, FRONT SEAT HINGE, RH

main71831-95700-04iCM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

main71831-95700-06iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198509-198808

BROWN,BROWN,TRIM4#

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-95708-04iCM3#,4#,KM3#,YM40..DLX,SUP,SW198509-198808

BLUE,BLUE,TRIM4#,8#

main72510-95708-06iCM35,36,41,KM31,35,36198509-198808

BROWN,BROWN,TRIM4#

main72510-95709-04iCM30,40,KM30,YM30,40..GXL,SCA,SUC,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

main72510-95709-06iCM30,40,KM30,YM30,40..GXL,SCA,SUC198509-198808

BROWN,BROWN,TRIM4#

main72510-95710-06iCM30,40,YM30,40..FXV198509-198808

BROWN,BROWN,TRIM4#

main72510-95711-06iCM35,KM35..VSP198608-198808

COOLING VAN,BROWN

9010908150

main90109-08150

9011908079

main90119-08079

9016840043

main90168-40043

9017908039

main90179-08039

9017910073

main90179-10073

9038612018

main90386-12018

9052308001

main90523-08001

9161161020

main91611-61020

9324915012

main93249-15012

9356015016

main93560-15016

9417110800

main94171-10800

9451100800

main94511-00800

35 parts on this diagram · 16 diagrams in section
